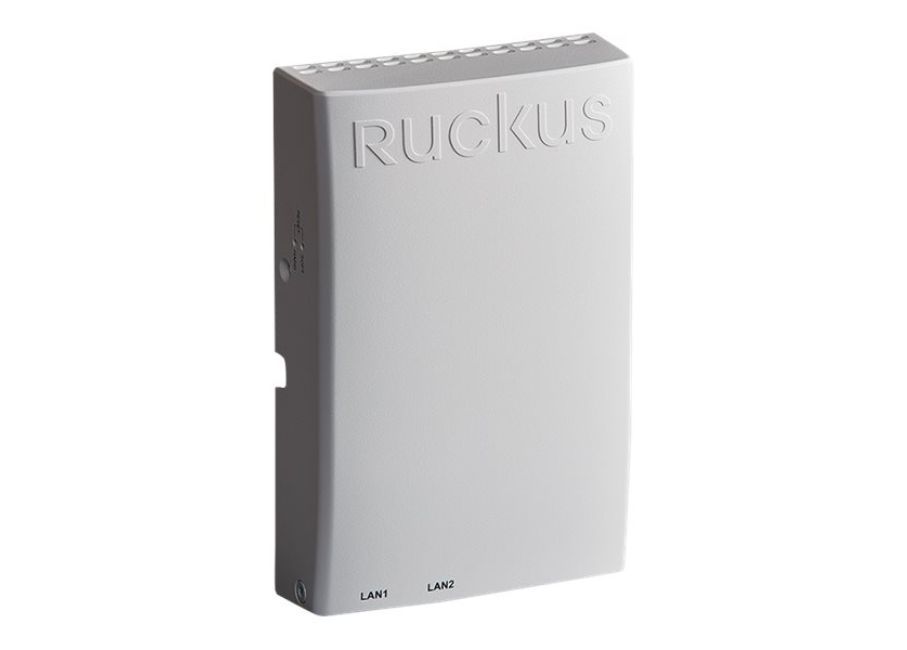

Ruckus ZoneFlex H320 – Unleashed – wireless access point

(901-H320-US00)

Categories: , , , ,

Wi-Fi is a critical amenity as users bring more devices into the hotel rooms, meeting rooms, and classrooms. Today, with an ever increasing need for quality Wi-Fi, an AP in every room has increasingly become necessary. The H320 combines an 802.11ac Wave 2 Wi-Fi access point and wired switch into one wall-mount device. Designed specifically for per-room deployments, the H320 is compact, inconspicuous, secure, and easy to mount to an electrical junction box. Bottom facing Ethernet ports eliminate unsightly cabling and accommodate any furniture placement. The H320 easily supports converged wired and wireless services with one device, that include VoIP, IPTV, high-speed Internet access and in-room Wi-Fi device connectivity. This 802.11ac Wave 2 Wi-Fi AP and switch incorporates advanced technologies. The H320 supports Multi-User MIMO (MU-MIMO) which increases network throughput by transmitting to multiple clients simultaneously. Support per-room wired IP devices from TVs to phones with 2 onboard Ethernet ports. Also, with built-in visual troubleshooting tools within Ruckus Wi-Fi controllers, administrators can accelerate resolution of trouble tickets.

Main Features

  • Wireless access point
  • Wi-Fi
  • Dual Band

Product Specifications

ManufacturerRuckus Wireless
BrandRuckus
Product LineRuckus
ModelH320
Country KitsUnited States
Packaged Quantity1

Antenna Form FactorInternal

Built-in Devices2-port switch

CapacityBSSIDs per radio: 8, Concurrent users: 100, VoIP calls: 30

TypeWireless access point
Form FactorExternal
Connectivity TechnologyWireless
Data Link ProtocolIEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Wireless Protocol802.11a/b/g/n/ac
Remote Management ProtocolCLI, HTTPS, SNMP 1, SNMP 2, SNMP 3, SSH, Telnet
Wi-Fi Bands2.4 GHz, 5 GHz
Power Over Ethernet (PoE)PoE
FeaturesBeamFlex+ Smart Antenna Technology, IPv4 support, IPv6 support, LDAP support, Manageable, Multiple SSID support, Quality of Service (QoS), RADIUS support, VLAN support, VoIP support, Wall mountable, Wi-Fi Multimedia (WMM) support
Compliant StandardsIEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u

Interfaces1 x 1000Base-T (PoE) – RJ-45, 2 x 100Base-TX – RJ-45

Power Consumption Operational6 watt

Color CategoryWhite
Encryption AlgorithmAES, TKIP, WPA, WPA2, WPA-PSK
Authentication MethodActive Directory, Basic Service Set Identifier (BSSID), LDAP, RADIUS
Width3.5 inch
Depth1.1 inch
Height5.7 inch
Weight6.88 ounce
Min Operating Temperature32 degree Fahrenheit
Max Operating Temperature104 degree Fahrenheit
Humidity Range Operating15 – 95% (non-condensing)
