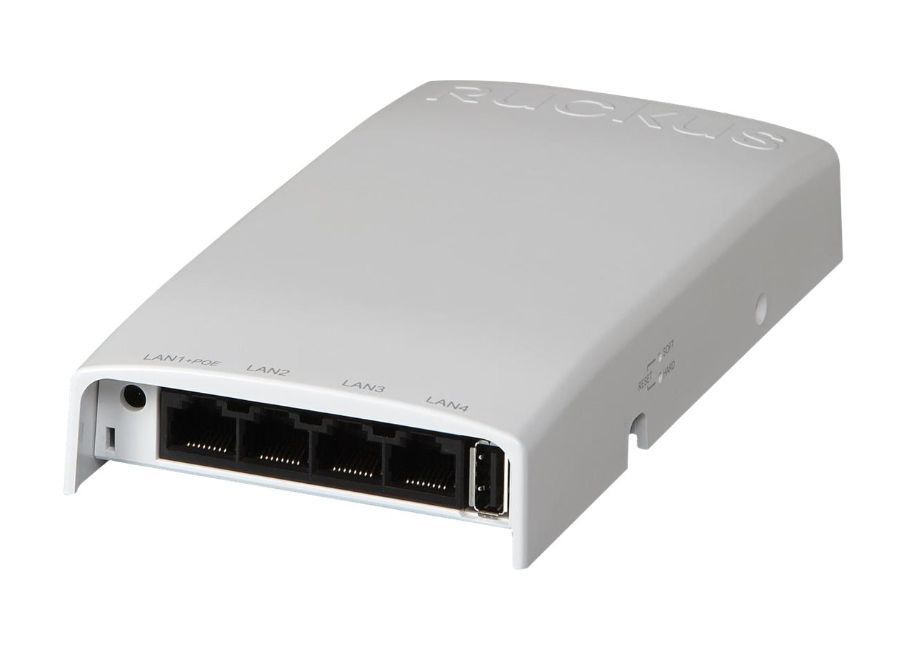

Ruckus ZoneFlex H500 – wireless access point

(901-H500-US00)

Categories: , , , ,

The Ruckus ZoneFlex H500 combines an 802.11ac wireless access point and wired switch in one device. Designed specifically for hotels and multi-dwelling units, the H500 is compact, inconspicuous, secure, and easy to mount to an electrical junction box. Front port access eliminates unsightly cabling and accommodates any furniture placement.

The H500 provides the versatility required by building owners to support converged wired and wireless services.

This 802.11ac wireless access point and switch incorporates top performance patented technologies found only in the Ruckus Wi-Fi portfolio.

BeamFlex+ adaptive antenna technology directs each packet over the best performing signal path, extending coverage range and mitigating interference automatically. ChannelFly technology chooses the best channel to give users the highest throughput – delivering up to 50 percent capacity gain over competitive dynamic channel selection approaches.

Whether organizations are deploying ten or ten thousand APs, the H500 is also easy to manage through the appliance, virtual and cloud management options.

The H500: Supports up to 100 clients on a single AP; Supports converged wired and wireless services with one device, including VoIP, IPTV, high-speed Internet access and in-room device connectivity; Reduces costs for cabling, power sourcing equipment and other in-room connection costs; Connect digital phones directly to the H500; Easily handles the transmission of challenging content – including jitter and latency sensitive streaming HD media; Fits the aesthetics of in room environments with a discrete, low-profile design.

Main Features

  • Wireless access point
  • Wi-Fi
  • Dual Band



Product Specifications

Networking

  • Compliant Standards : IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
  • Connectivity Technology : Wireless
  • Data Link Protocol : IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
  • Data Transfer Rate : 867 Mbps
  • Features : 2T2R MIMO technology, BeamFlex+ Smart Antenna Technology, IPv4 support, IPv6 support, LDAP support, Manageable, Multiple SSID support, Quality of Service (QoS), RADIUS support, VLAN support, Wi-Fi Multimedia (WMM) support
  • Form Factor : External
  • Network Transport Protocol : L2TP, PPPoE
  • Power Over Ethernet (PoE) : PoE
  • Remote Management Protocol : CLI, HTTP, HTTPS, SNMP 1, SNMP 2, SNMP 3, SSH, Telnet
  • Type : Wireless access point
  • Wi-Fi Bands : 2.4 GHz, 5 GHz
  • Wireless Protocol : 802.11a/b/g/n/ac

Interface Provided

  • Connector Type : RJ-45
  • Qty : 1
  • Type : 1000Base-T (PoE)
  • Qty : 4
  • Type : 100Base-TX
  • Type : USB 2.0

Miscellaneous

  • Authentication Method : Active Directory, Basic Service Set Identifier (BSSID), LDAP, RADIUS
  • Encryption Algorithm : AES, TKIP, WPA, WPA-PSK, WPA2

Antenna

  • Antenna Form Factor : Internal

Cabinet

  • Chassis Built-in Devices : 4-port switch

Environmental Parameters

  • Humidity Range Operating : 15 – 95% (non-condensing)
  • Max Operating Temperature : 104 °F
  • Min Operating Temperature : 32 °F

Header

  • Brand : Ruckus
  • Compatibility : PC
  • Country Kits : United States
  • Manufacturer : Ruckus Wireless
  • Model : H500
  • Packaged Quantity : 1
  • Product Line : Ruckus ZoneFlex

Power Device

  • Power Consumption Operational : 6.5 Watt

Capacity

  • Type : Concurrent users
  • Value : 100
  • Type : VoIP calls
  • Value : 30

Dimensions & Weight

  • Depth : 6.7 in
  • Height : 1.1 in
  • Weight : 7.41 oz
  • Width : 3.5 in

IP Telephony

  • VoIP : Yes
