Home » Products » Networking » Ruckus P300 – bridge – 802.11a/b/g/n/ac – desktop

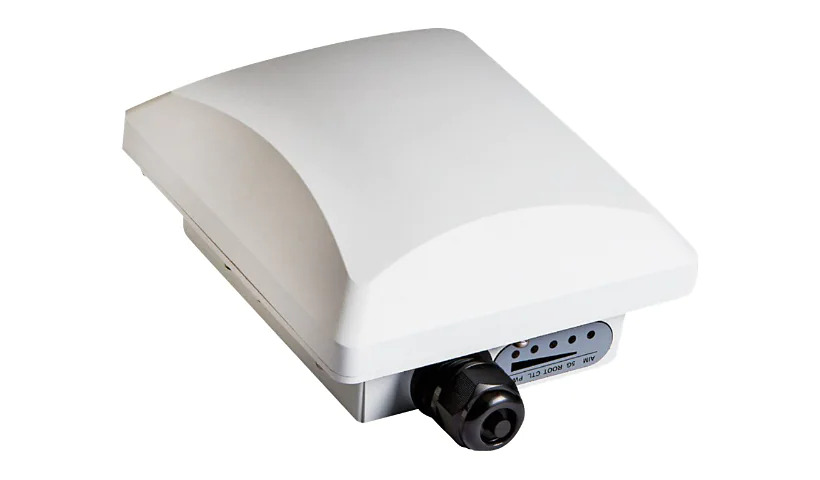

Ruckus P300 – bridge – 802.11a/b/g/n/ac – desktop

(901-P300-US02)

Categories: Networking, Ruckus, Network Antennas

Deploy ZoneFlex P300 point to point/multipoint bridges to extend wireless coverage between remote locations or enable broadband services in places not reachable before in an affordable way. With the P300, service providers can reliably provide best in class wireless backhaul performance at ranges up to 12 kilometers.

Main Features

Bridge
GigE
802.11ac
5 GHz (pack of 2)

Product Specifications

ManufacturerRuckus Wireless

BrandRuckus

Product LineRuckus, Ruckus ZoneFlex

ModelP300

Country KitsUnited States

Packaged Quantity2

Antenna Form FactorInternal

Gain Level14 DBi

DirectivityDirectional

Antenna Qty1

TypeNone

Line Coding FormatOFDM

TypeBridge

Form FactorDesktop

Connectivity TechnologyWired, Wireless

Data Link ProtocolEthernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n

Wireless Protocol802.11a/b/g/n/ac, 802.11ac

Network / Transport ProtocolFTP

Remote Management ProtocolCLI, HTTP, HTTPS, SNMP 1, SNMP 2, SNMP 3, SSH, Telnet

Data Transfer Rate500 MBps

Wi-Fi Bands5 GHz

Max Range Open Space7

FeaturesAuto-sensing per device, Auto-uplink (auto MDI/MDI-X), Power over Ethernet (PoE)

Compliant StandardsIEEE 802.11ac, IEEE 802.3af

Interfaces1 x 10Base-T/100Base-TX/1000Base-T (PoE) – RJ-45, Antenna: 2 x N connector

TypeDrivers & Utilities

Power Consumption Operational11 watt

Color CategoryWhite

Encryption AlgorithmAES, WPA2

Compliant StandardsIP67, RoHS, WEEE

Width5.9 inch

Depth7.1 inch

Height3.4 inch

Weight2.2 lbs

Min Operating Temperature-40 degree Fahrenheit

Max Operating Temperature149 degree Fahrenheit
