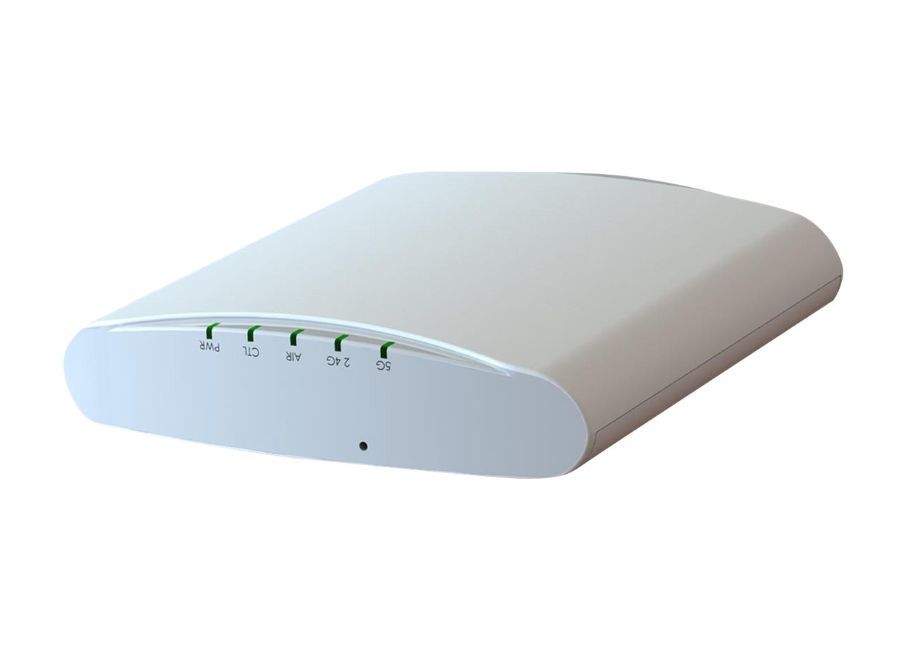

Ruckus ZoneFlex R310 Unleashed – wireless access point

(9U1-R310-US02)

Categories: , , , ,

Ruckus Unleashed access points are designed for organizations and venues that need rock-solid Wi-Fi performance that is easy to deploy without wireless LAN controllers.

The Ruckus Unleashed R310 indoor AP is optimized for small organizations that need affordable, high-performance Wi-Fi.

Small organizations without a dedicated IT staff need Wi-Fi coverage that serves customers, keeps employees productive, and supports backend business functions. This means Wi-Fi must be easy to deploy, fast, and highly reliable.

The R310 does not compromise on performance. This 802.11ac AP incorporates the same patented adaptive antenna technology, BeamFlex+, found throughout the Ruckus Wi-Fi portfolio, that extends coverage using fewer APs and improves wireless download speeds. BeamFlex directs each data packet over the best performing signal path, mitigating interference automatically.

The R310 also incorporates ChannelFly which provides significant capacity improvements in congested environments – delivering up to 50 percent capacity gains over competitive dynamic channel selection approaches.

The R310: Installs easily even without an IT staff; Supports up to 100 clients on a single AP; Supports more services – including streaming media, web browsing, and email; Easily handles the transmission of challenging content – including jitter and latency sensitive streaming media; Uses fewer APs to cover more area with extended range capabilities; Improves throughput automatically delivering up to 50 percent capacity gains; Reduces costs with support for both standard PoE and PoE+.

Main Features

  • Wireless access point
  • Wi-Fi
  • Dual Band

Product Specifications

Networking

  • Compliant Standards : IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n, IEEE 802.1x, IEEE 802.3af
  • Connectivity Technology : Wireless
  • Data Link Protocol : IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
  • Data Transfer Rate : 300 (Mbps), 867 Mbps
  • Features : 2T2R MIMO technology, Auto-sensing per device, Auto-uplink (auto MDI/MDI-X), DHCP support, LDAP support, Manageable, NAT support, RADIUS support, Reset button
  • Form Factor : External
  • Power Over Ethernet (PoE) : PoE
  • Remote Management Protocol : CLI, HTTP, HTTPS, SNMP 1, SNMP 2, SNMP 3, SSH, Telnet, TR-069
  • Type : Wireless access point
  • Wi-Fi Bands : 2.4 GHz, 5 GHz
  • Wireless Protocol : 802.11a/b/g/n/ac

Interface Provided

  • Connector Type : RJ-45
  • Qty : 1
  • Type : 1000Base-T (PoE)

Miscellaneous

  • Authentication Method : Active Directory, Basic Service Set Identifier (BSSID), LDAP, RADIUS
  • Compliant Standards : CB, EFTA, EN 60601-1-2, IC, RoHS 2 (2011/05/EU), WEEE
  • Encryption Algorithm : AES, TKIP, WPA-PSK, WPA2

Antenna

  • Antenna Form Factor : Internal

Service

  • Support Details Full Contract Period : Lifetime
  • Support Details Type : Limited warranty

Environmental Parameters

  • Humidity Range Operating : 10 – 95% (non-condensing)
  • Max Operating Temperature : 104 °F
  • Min Operating Temperature : 32 °F

Header

  • Brand : Ruckus
  • Compatibility : PC
  • Country Kits : United States
  • Manufacturer : Ruckus Wireless
  • Model : R310 Unleashed
  • Packaged Quantity : 1
  • Product Line : Ruckus ZoneFlex

Capacity

  • Type : Concurrent stations
  • Value : 100
  • Type : Simultaneous VoIP clients
  • Value : 30
  • Type : Spatial streams
  • Value : 2

Dimensions & Weight

  • Depth : 5.4 in
  • Height : 1.3 in
  • Weight : 7.76 oz
  • Width : 5.3 in

Service & Support

  • Type : Limited lifetime warranty
