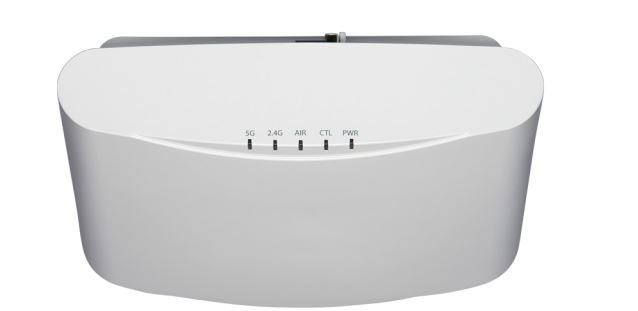

Ruckus ZoneFlex R720 – wireless access point

(901-R720-US00)

Categories: Networking, Ruckus, ZoneFlex R720, Wireless Access Points, R Series

Looking for multi-gigabit Wi-Fi but cost-conscious about replacing the existing cable infrastructure? ?The Ruckus R720 indoor access point is a high capacity four-stream 802.11ac Wave 2 Wi-Fi access point and supports multi-gigabit 2.5 GbE. This access point enables the reuse of existing cables and maximizes the performance of your Wave 2 infrastructure without paying extra for multi-gigabit technology that cannot be used.

Main Features

Wireless access point
Wi-Fi
Dual Band

Call for Pricing

Product Specifications

Header

ManufacturerRuckus Wireless

BrandRuckus

Product LineRuckus ZoneFlex

ModelR720

Country KitsUnited States

Packaged Quantity1

Line Properties

Line Coding Format256 QAM

Capacity

CapacityConcurrent stations: 512, Simultaneous VoIP clients: 30 (radio), Simultaneous VoIP clients: up to 60 (802.11e/WMM)

Networking

TypeWireless access point

Form FactorExternal

Connectivity TechnologyWireless

Data Link ProtocolIEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n

Wireless Protocol802.11a/b/g/n/ac

Network / Transport ProtocolL2TP, PPPoE

Data Transfer Rate1733 MBps

Wi-Fi Bands2.4 GHz, 5 GHz

Power Over Ethernet (PoE)PoE+

Features4×4:4 streams, Auto-sensing per device, Auto-uplink (auto MDI/MDI-X), BeamFlex+ Smart Antenna Technology, Ceiling mountable, DHCP support, IPv4 support, IPv6 support, Link Aggregation Control Protocol (LACP), Manageable, Maximum Ratio Combining (MRC), MU-MIMO technology, NAT support, Quality of Service (QoS), Security lock slot (cable lock sold separately), Space Time Blocking Code (STBC), SU-MIMO technology, VLAN support, Wall mountable, Wi-Fi Multimedia (WMM) support

Compliant StandardsIEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at, Wi-Fi CERTIFIED

Interface Provided

Interfaces1 x 1000Base-T (PoE+) – RJ-45, 1 x 2.5 GBase-T (PoE+), 1 x USB 2.0

Miscellaneous

Included AccessoriesCeiling mounting kit

Encryption AlgorithmAES, WPA-PSK

Authentication MethodActive Directory, Basic Service Set Identifier (BSSID), LDAP, RADIUS

Compliant StandardsEN 50121-1, EN 50121-4, EN 60601-1-2, IEC 61373, RoHS, UL 2043, WEEE

Dimensions & Weight

Width8.3 inch

Depth9.1 inch

Height2.4 inch

Weight2.47 lbs

Environmental Parameters

Min Operating Temperature-4 degree Fahrenheit

Max Operating Temperature140 degree Fahrenheit

Humidity Range Operating0 – 95% (non-condensing)
