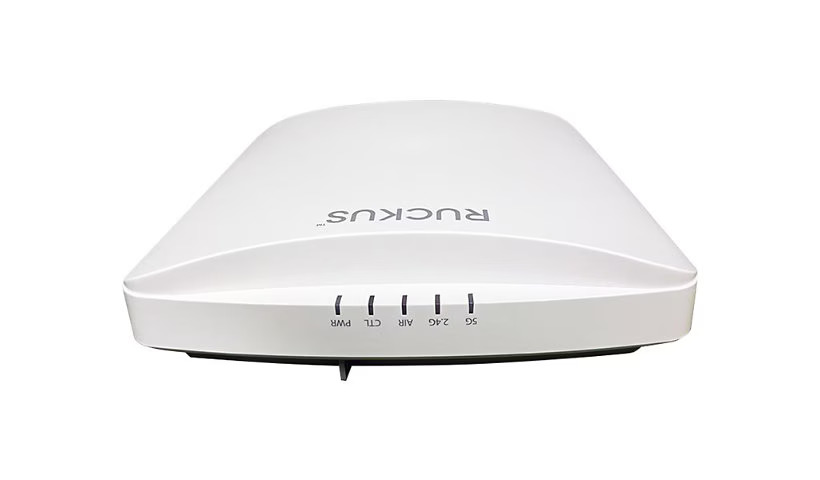

Ruckus ZoneFlex R750 – Unleashed – wireless access point

(9U1-R750-US00)

Categories: , , , ,

The R750 is based on the Wi-Fi 6 standard and bridges the performance gap from Gigabit Wi-Fi to multigigabit Wi-Fi in support of the insatiable demand for better and faster Wi-Fi. The R750 makes it easy to deliver reliable, secure, high-performance connectivity in transit hubs, auditoriums, conference centers, and other high-traffic indoor spaces. The Ruckus R750 is the dual-band, dual-concurrent Wi-Fi 6 AP that supports 8 spatial streams.

Main Features

  • Unleashed
  • wireless access point
  • 802.11ax
  • Wi-Fi
  • Dual Band

Product Specifications

ManufacturerRuckus Wireless
BrandRuckus
Product LineRuckus ZoneFlex
ModelR750
EditionUnleashed
Country KitsUnited States
Packaged Quantity1
Antenna Form FactorInternal
Gain Level3 DBi

Ruggedized DesignIndoor

PerformanceMaximum data rate (2.4 GHz): 1148 Mbps, Maximum data rate (5 GHz): 2400 Mbps

CapacityAntenna patterns (per band): 4000+, Concurrent users: 1024, Rx sensitivity (2.4 / 5GHz): -102dBm
TypeWireless access point
Form FactorExternal
Connectivity TechnologyWireless
Data Link ProtocolIEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Wireless Protocol802.11a/b/g/n/ac/ax
Cloud-ManagedYes
Wi-Fi Bands2.4 GHz, 5 GHz
Power Over Ethernet (PoE)PoE
Features4×4:4 streams, Auto-sensing per device, Auto-uplink (auto MDI/MDI-X), Backhaul Technology, BeamFlex+ Smart Antenna Technology, Bluetooth (BLE) clients support, Ceiling mountable, ChannelFly, Cloud managed, DHCP support, IPv4 support, IPv6 support, Link Aggregation Control Protocol (LACP), Manageable, Maximum Ratio Combining (MRC), MU-MIMO technology, NAT support, Quality of Service (QoS), Security lock slot (cable lock sold separately), Smart Mesh technology, Space Time Blocking Code (STBC), VLAN support, Wall mountable, Wi-Fi Multimedia (WMM) support
Compliant StandardsIEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at, Wi-Fi CERTIFIED 6

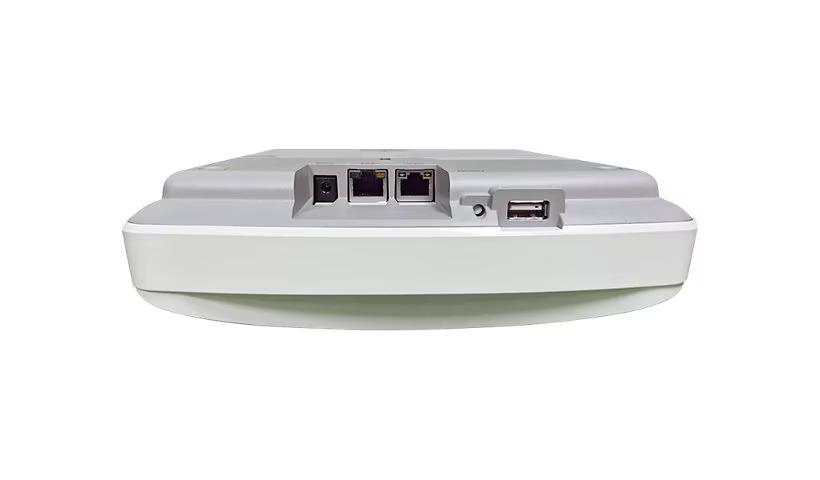

Interfaces1 x 1000Base-T (PoE) – RJ-45, 1 x 2.5 GBase-T (PoE), 1 x USB 2.0

Internet of Things (IoT) CompatibleYes
Communications TechnologyBluetooth Low Energy (LE), Zigbee
Color CategoryWhite
Included AccessoriesAdjustable acoustic drop ceiling bracket
