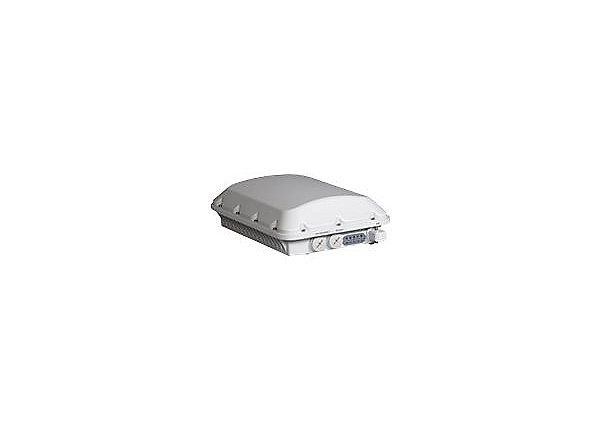

Ruckus ZoneFlex T610s – wireless access point

(901-T610-US51)

Categories: , , ,

The T610 delivers blazing fast connectivity for high-density outdoor deployments, with data rates up to 2.5 Gbps and the density-handling ability to match. Patented BeamFlex+ technology rejects interference and improves signal quality for any device, anywhere. Included MU-MIMO technology maximizes network efficiency, reducing bottlenecks and enhancing user experience. Smart Mesh accelerates time-to-deployment and eliminates the cost associated with running Ethernet cabling between multiple access points in the network.

The T610 is designed for high-density deployments in which dozens of clients need guaranteed high throughput. Enabling cities to become smart cities by providing city-wide wireless connectivity for busy public venues, hotspots and surveillance monitoring systems are ideal use cases for T610. The T610 is perfect for customers that need premium wireless performance and don’t have requirements for network backhaul interfaces such as fiber or coaxial cable.

Main Features

  • Wireless access point
  • 802.11ac Wave 2
  • Wi-Fi
  • Dual Band

Product Specifications

ManufacturerRuckus Wireless
BrandRuckus
Product LineRuckus ZoneFlex
ModelT610s
Country KitsUnited States
Packaged Quantity1
Antenna Form FactorInternal
DirectivityDirectional

Ruggedized DesignOutdoor

CapacityConcurrent stations: 512

TypeWireless access point
Form FactorExternal
Connectivity TechnologyWireless
Data Link ProtocolIEEE 802.11a, IEEE 802.11ac Wave 2, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Wireless Protocol802.11a/b/g/n/ac Wave 2
Data Transfer Rate1.733 GBps
Wi-Fi Bands2.4 GHz, 5 GHz
Power Over Ethernet (PoE)PoE+
FeaturesBeamFlex+ Smart Antenna Technology, Captive Portal, Hardware encryption, IPv6 support, L2TP passthrough, LDAP support, MU-MIMO technology, Pole mountable, Quality of Service (QoS), RADIUS support, SU-MIMO technology, VLAN support, Wall mountable
Compliant StandardsIEEE 802.11a, IEEE 802.11ac Wave 2, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at, Wi-Fi CERTIFIED

Interfaces1 x 1000Base-T – RJ-45, 1 x 1000Base-T (PoE) – RJ-45, 1 x USB

Power Consumption Operational10.4 watt

Encryption AlgorithmAES, WPA-PSK
Authentication MethodActive Directory, Basic Service Set Identifier (BSSID), LDAP, RADIUS
Compliant StandardsEN 50121-1, EN 50121-4, EN 60601-1-2, IEC 61373, IP67, RoHS, WEEE
Width9.5 inch
Depth12.5 inch
Height3.7 inch
Weight5.95 lbs

Type1-year warranty

Service & SupportLimited warranty – 1 year

Min Operating Temperature-40 degree Fahrenheit
Max Operating Temperature149 degree Fahrenheit
