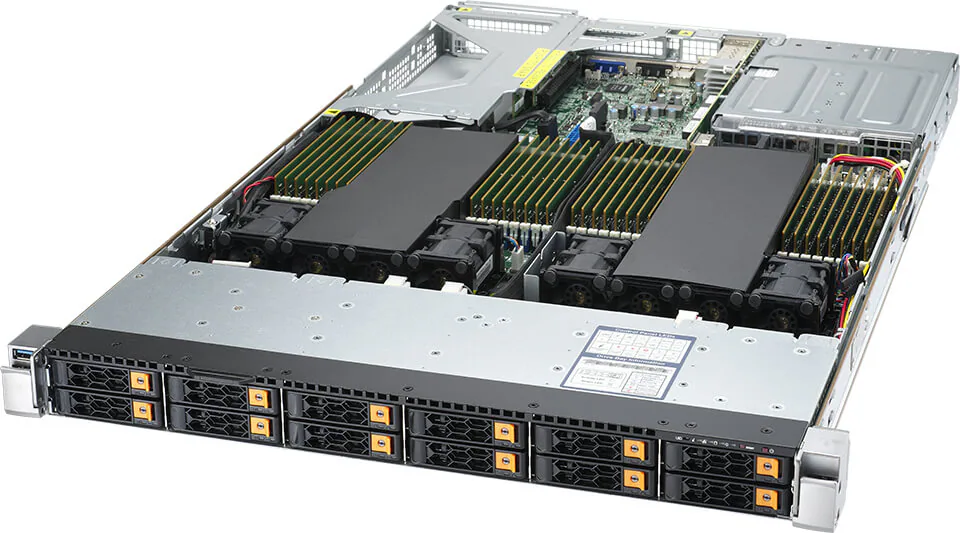

Ultra A+ Server AS -1124US-TNRP

(AS -1124US-TNRP)

instock

Dual AMD EPYC™ 7003/7002 Series Processors
(The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
8TB Registered ECC DDR4 3200MHz SDRAM in 32 DIMMs
2 PCIe 4.0 x16 FH, 9.5″L,
1 PCIe 4.0 x16 LP,
1 PCIe 4.0 x16 (internal proprietary LP slot)
Dual-port 10GBase-T and Dual-port 10G SFP+ via Intel X710-TM4

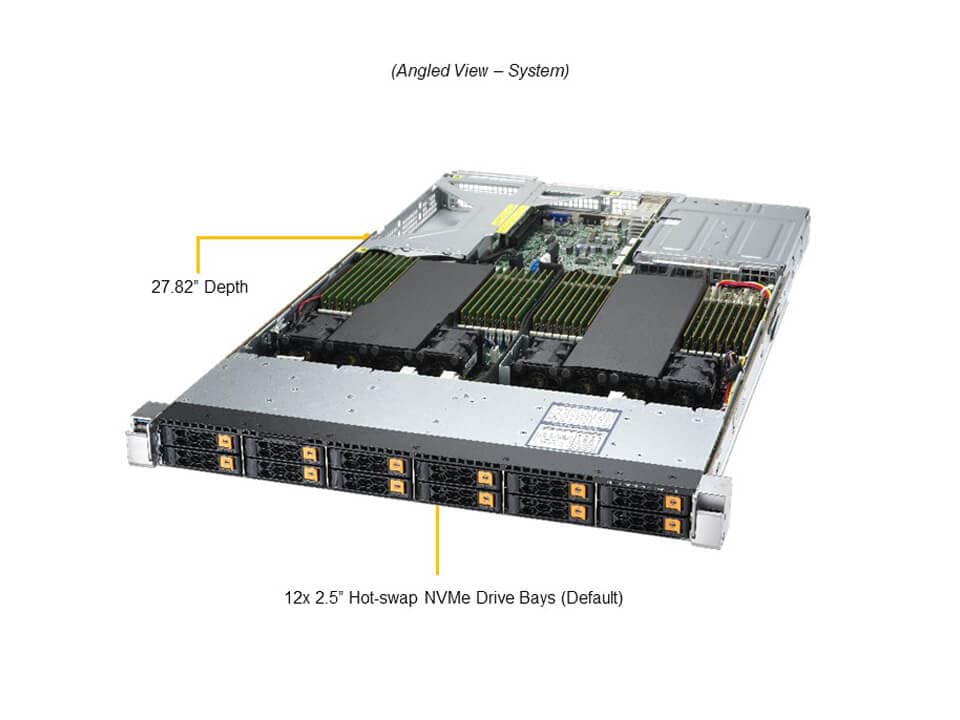

12 Hot-swap 2.5″ NVMe drive bays
or SATA3/SAS3 (via optional SAS kit)

MSRP^*

N/A

* Manufacturer’s Suggested Retail Price

Authentic, brand-certified products you can trust—no compromises.

Best Price Guaranteed

Competitive pricing with maximum value—always the best deal.

Quick processing and secure shipping to get your order on time.

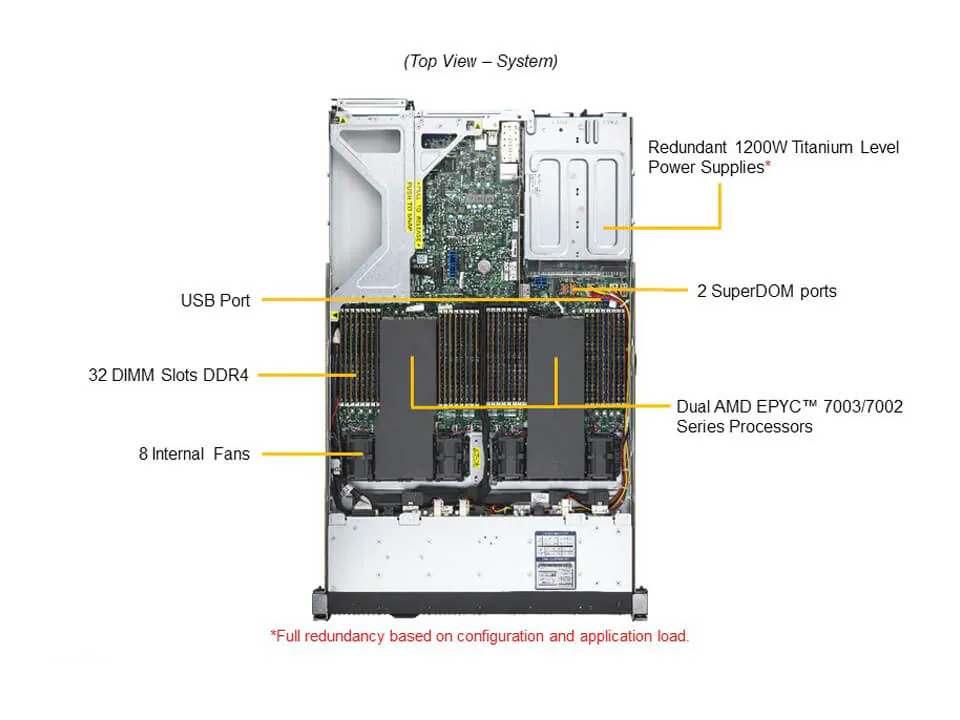

CPU	Dual SP3 AMD EPYC™ 7002/7003 Series Processors
Core Count	Up to 64C/128T
Note	Supports up to 280W TDP CPUs (Air Cooled)

Memory

- Slot Count: 32 DIMM slots/8 Channels
- Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMM

Memory Voltage

SATA	SATA (6Gbps)
Chipset	System on Chip
Network Connectivity	2 RJ45 10GbE 2 SFP+ 10GbE View Network Card (AOC) Options View AOC Options
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

BIOS Type	AMI 32MB SPI Flash EEPROM
BIOS Features	Plug and Play (PnP) USB Keyboard support ACPI 5.1 DMI 2.3 PCI 2.2 SMBIOS 3.1.1

Software	Redfish API Supermicro Server Manager (SSM) Supermicro Power Manager (SPM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) KVM with dedicated LAN IPMI 2.0 OOB Management Package (SFT-OOB-LIC )
Power configurations	ACPI Power Management Power-on mode control for AC power loss recovery

Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery System Lockdown

CPU	Monitors for CPU Cores, Chipset Voltages, Memory 4+1 Phase-switching voltage regulator
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors

Form Factor	1U
Model	CSE-119UHTS-R1K22HP-T

PCI-Express (PCIe) Configuration

- Default
  - 1 PCIe 4.0 x16 LP slot
  - 1 PCIe 4.0 x16 INTERNAL slot
  - 2 PCIe 4.0 x16 FH/HL, 9.5″L slots

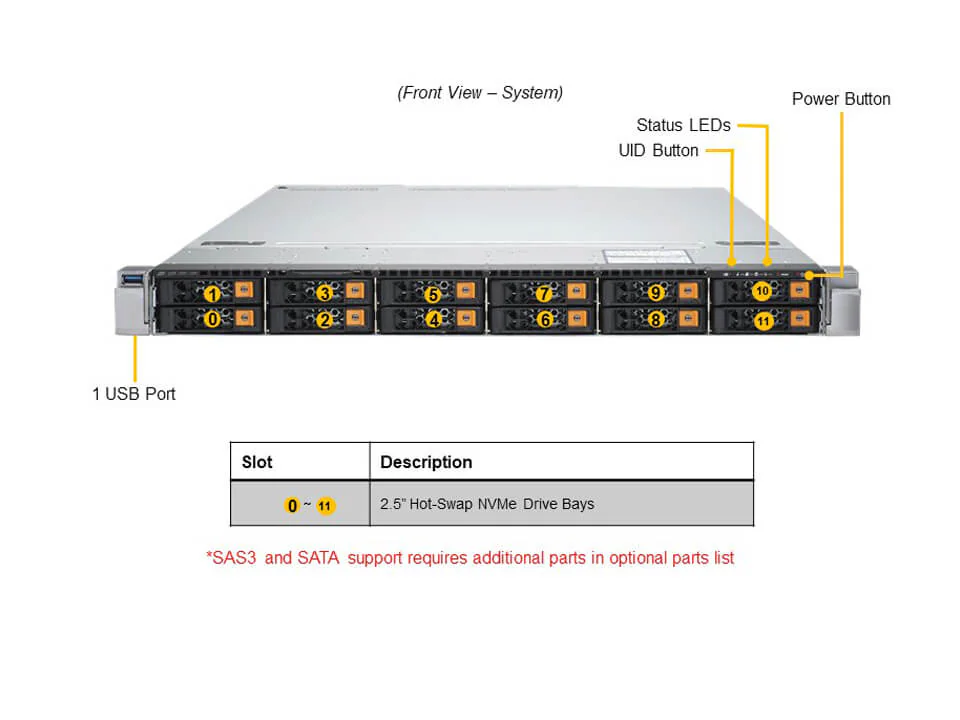

Drive Bays Configuration

- Default: Total 12 bays
  - 12 front hot-swap 2.5″ NVMe/SAS*/SATA* drive bays
- (*SAS/SATA support may require additional storage controller and/or cables)

Fans	Up to 8 heavy duty fans with optimal fan speed control
Air Shroud	1 Air Shroud

2x 1200W Redundant (1 + 1) Titanium Level (96%) power supplies

Dimension (WxHxL)	73.5 x 40 x 203 mm
Input	800W: 100-127Vac 800W: 100-127Vac / 50-60Hz 1200W: 200-240Vac 1200W: 200-240Vdc (For CCC Only) 1200W: 200-240Vac / 50-60Hz 1200W: 200-240Vdc / 50-60Hz (for CCC only)
+12V	Max: 66.7A / Min: 0A (100Vac-127Vac) Max: 100A / Min: 0A (200Vdc-240Vdc) Max: 100A / Min: 0A (200Vac-240Vac) Max: 100A / Min: 0A (200Vdc-240Vdc) (For CCC Only)
12V SB	Max: 2.1A / Min: 0A
Output Type	Backplanes (gold finger)

ROHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C to 30°C (50°F to 86°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
