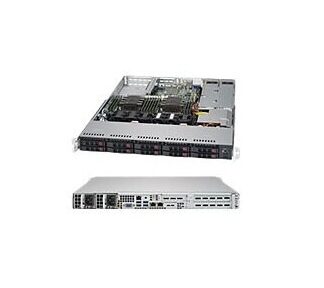

Supermicro SuperServer 1029P-WTRT – rack-mountable no CPU – 0 GB – no HDD

(SYS-1029P-WTRT)

Categories: Servers, SuperMicro, Rack Servers

Supermicro provides the outstanding product line, their proven high level of quality and performance has made SuperServers the platform of choice for enterprise, cloud, data center, hyperscale, embedded, and business-critical, front-end server applications.

Quick tech specs

WTRT
rack-mountable 1U
no CPU up to
SATA/PCI Express
no HDD
10 Gigabit Ethernet
black
Server
2-way
RAM 0 GB
hot-swap 2.5″ bay(s)
AST2500
monitor: none

Product Specifications

BrandSupermicro

Product LineSupermicro SuperServer

Model1029P-WTRT

ManufacturerSuper Micro Computer Inc

Processor SocketSocket P

Processor TypeNo CPU

Server Scalability2-way

Total Processor Supported2

UpgradabilityUpgradable

Available Memory Slots12

Data Integrity CheckECC

Features3DS Load-Reduced DIMM (LRDIMM), Registered

Max Memory Supported1.5 TB

Memory Slots12

Memory Supported1.5 TB 3DS Load-Reduced – ECC, 768 GB registered – ECC

Memory TechnologyDDR4 SDRAM

RAM Installed0 GB

Channel Quantity8

Drive TypeNo optical drive

Optical Drive TypeNo optical drive, None

Optical Drive Type (2nd)None

RAID LevelsRAID 0, RAID 1, RAID 10, RAID 5

Storage (2nd)None

Storage (3rd)None

Storage (4th)None

Storage Controller (2nd)NVM Express

Storage Controller TypeSerial ATA

TypeNone

Hard Drive Interface TypeNo HDD

Data Link Protocols10 Gigabit Ethernet

Ethernet ControllersIntel X722

Ethernet Ports2 x 10 Gigabit Ethernet

FeaturesACPI support, KVM over IP support

Remote ManagementIPMI 2.0

Expansion Bays10 (total) / 10 (free) x hot-swap 2.5″

Slots1 (total) / 1 (free) x M.2 Card, 1 (total) / 1 (free) x PCIe 3.0 x16, 1 (total) / 1 (free) x PCIe 3.0 x8 – low-profile, 12 (total) / 12 (free) x DIMM 288-pin, 2 (total) / 2 (free) x CPU, 2 (total) / 2 (free) x PCIe 3.0 x16 – half-length, full-height

Interface Provided1 x management – RJ-45, 1 x VGA, 2 x LAN (10Gigabit Ethernet) – RJ-45, 4 x USB 3.0

Display TechnologyNone.

Graphics Controller ModelASPEED AST2500

Graphics Processor SeriesASPEED AST

Video InterfacesVGA

Audio Input TypeNone

Frequency50/60 hertz

Power Device TypePower supply

Power Provided750 watt

Power Supplies Installed2

Power Supplies Supported2

Redundant Power SupplyYes

Redundant Power Supply Supported1+1

80 PLUS Certification80 PLUS Platinum

Chipset TypeIntel C622

Form FactorRack-mountable

Form Factor (RAM)DIMM 288-pin

Storage Controller InterfaceSerial ATA-600

Max Operating Temperature95 degree Fahrenheit

Min Operating Temperature50 degree Fahrenheit

Operating Humidity8 – 90% (non-condensing)

Channel Quantity2

Controller Interface TypeSerial ATA-600 / PCI Express

Controllers Included1

Printer Product TypeNone

Hot-Swap Bays10

Manufacturer Form FactorRack-mountable

Packaged Quantity1

Product TypeServer

Server Storage BaysHot-swap

Server Swappable Drive Form Factor2.5″

Server Swappable Drive Form Factor (metric)6.4 cm

Server Swappable Drive InterfaceSATA/PCI Express

Storage Controller (2nd)1

CablesMini SAS HD cable (2 pcs.), Serial ATA / SAS cable

Included Accessories2 x CPU Heatsink, 2 x riser cards, Air shroud

Height1.7 inch

Height (Rack Units)1

Weight46.08 lbs

Width17.2 inch

Depth23.5 inch

ColorBlack

Color CategoryBlack

Compliant StandardsRoHS

ENERGY STAR CertifiedNo

TCO CertifiedNo

Service & Support DetailsLimited warranty – labor – 3 years, Limited warranty – parts – 1 year

Limited Warranty3 Year
