Home » Products » Servers » Supermicro SuperServer E-2100/E-2200 Rack Server

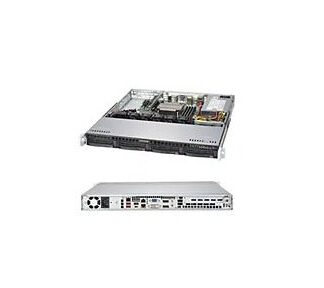

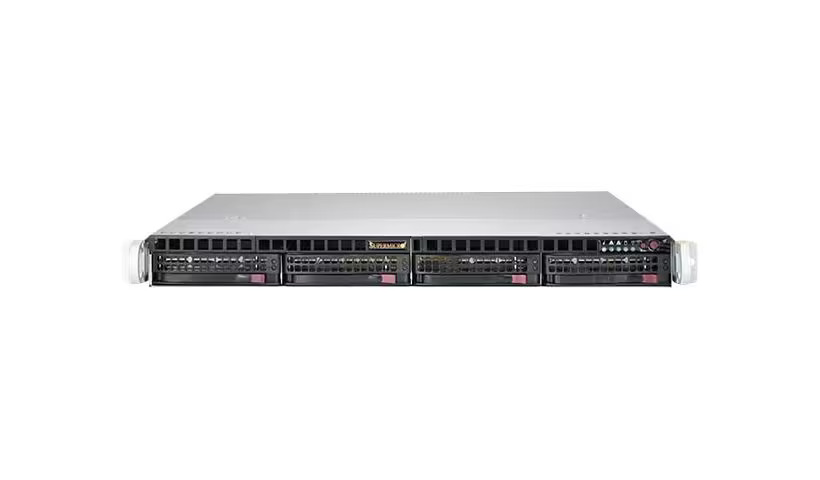

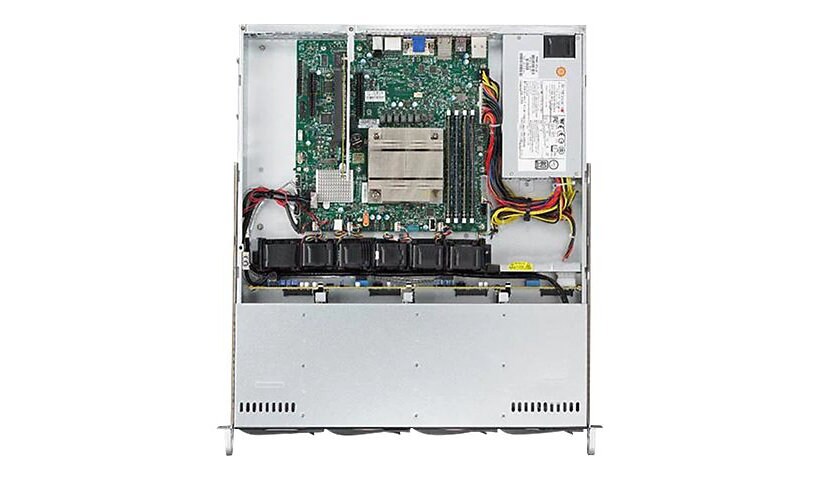

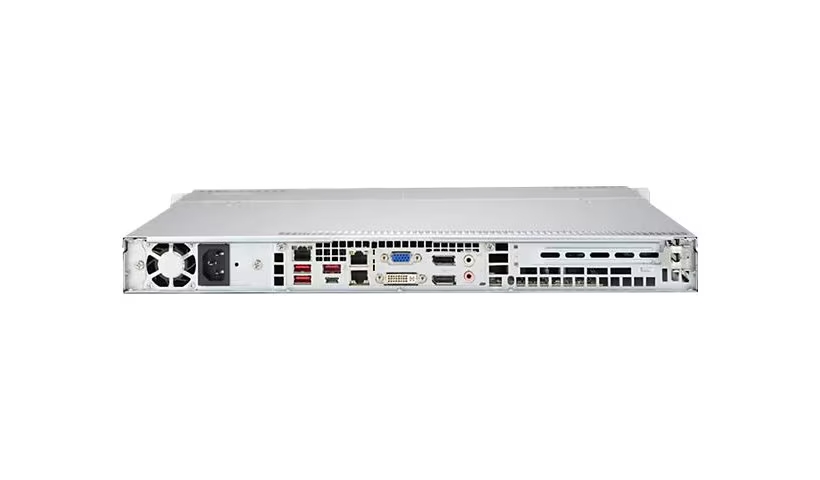

Supermicro SuperServer E-2100/E-2200 Rack Server

(SM-SYS-5019C-MHN2)

Categories: Servers, SuperMicro, Rack Servers

Supermicro provides the outstanding product line, their proven high level of quality and performance has made SuperServers the platform of choice for enterprise, cloud, data center, hyperscale, embedded, and business-critical, front-end server applications.

Quick tech specs

Form Factor: 1U Rack
Chipset: Intel C246
4 Hot-swap 3.5″ Drive Bays
Platinum Level Certified
Memory Capacity: 4 DIMM Slots
Up to 128GB ECC/Non-ECC UDIMM
RoHS Compliant

Product Specifications

BrandSupermicro

Product LineSupermicro SuperServer

Model5019C-MHN2

ManufacturerSuper Micro Computer Inc

Processor SocketLGA1151 Socket

Processor TypeNo CPU

Server Scalability1-way

Total Processor Supported1

UpgradabilityUpgradable

Available Memory Slots4

FeaturesUnbuffered

Max Memory Supported128 GB

Memory Slots4

Memory TechnologyDDR4 SDRAM

RAM Installed0 GB

Channel Quantity5

Drive TypeNo optical drive

Optical Drive TypeNo optical drive, None

Optical Drive Type (2nd)None

RAID LevelsRAID 0, RAID 1, RAID 10, RAID 5

Storage (2nd)None

Storage (3rd)None

Storage (4th)None

Storage Controller TypeRAID

TypeNone

Hard Drive Interface TypeNo HDD

Data Link ProtocolsEthernet, Fast Ethernet, Gigabit Ethernet

Ethernet ControllersIntel I210-AT

Ethernet Ports2 x Gigabit Ethernet

FeaturesACPI support, KVM over IP support

Remote ManagementIPMI 2.0

Expansion Bays4 (total) / 4 (free) x hot-swap 3.5″

Slots1 (total) / 1 (free) x PCIe 3.0 x16, 2 (total) / 2 (free) x M.2 Card – 2280/22110 (Key M)

Interface Provided1 x management (NIC) – RJ-45, 1 x VGA, 2 x LAN (Gigabit Ethernet) – RJ-45, 2 x USB 2.0, 2 x USB 3.1

Display TechnologyNone.

Graphics Controller ModelASPEED AST2500

Graphics Processor SeriesASPEED AST

Video InterfacesVGA

Compliant StandardsHigh Definition Audio

Frequency50/60 hertz

Power Device TypePower supply

Power Factor Correction (PFC)Yes

Power Provided350 watt

80 PLUS Certification80 PLUS Platinum

Chipset TypeIntel C246

Form FactorRack-mountable

Form Factor (RAM)DIMM 288-pin

Storage Controller InterfaceSerial ATA-600

Max Operating Temperature95 degree Fahrenheit

Min Operating Temperature50 degree Fahrenheit

Operating Humidity8 – 90% (non-condensing)

Controllers Included1

Printer Product TypeNone

Hot-Swap Bays4

Manufacturer Form FactorRack-mountable

Packaged Quantity1

Product TypeServer

Server Storage BaysHot-swap

Server Swappable Drive Form Factor3.5″

Server Swappable Drive Form Factor (metric)8.9 cm

Server Swappable Drive InterfaceSATA

CablesSerial ATA cable (4 pcs.), SGPIO cable

Included AccessoriesAir shroud, CPU Heatsink, Riser card

Height1.7 inch

Height (Rack Units)1

Weight17.99 lbs

Width17.2 inch

Depth19 inch

ColorBlack

Color CategoryBlack

Compliant StandardsRoHS

ENERGY STAR CertifiedNo

TCO CertifiedNo

Service & Support DetailsLimited warranty – labor – 3 years, Limited warranty – parts – 1 year

Limited Warranty3 Year
