Home » Products » Servers » Supermicro SuperServer E300-9D – Mini-ITX Box PC – Xeon D-2123IT – 0 GB – no HDD

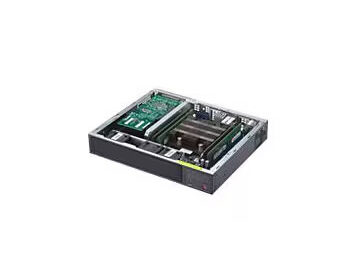

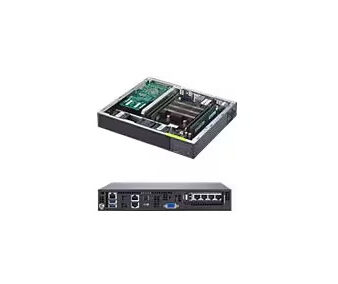

Supermicro SuperServer E300-9D – Mini-ITX Box PC – Xeon D-2123IT – 0 GB – no HDD

(SYS-E300-9D)

Categories: Servers, SuperMicro, Rack Servers

Supermicro provides the outstanding product line, their proven high level of quality and performance has made SuperServers the platform of choice for enterprise, cloud, data center, hyperscale, embedded, and business-critical, front-end server applications.

Product Specifications

BrandSupermicro

Product LineSupermicro SuperServer

ModelE300-9D

ManufacturerSuper Micro Computer Inc

CoresQuad-Core

Processor BrandIntel

Processor NumberD-2123IT

Processor TypeXeon

Processors Installed1

Server Scalability1-way

Total Processor Supported1

Available Memory Slots4

FeaturesLoad-Reduced DIMM (LRDIMM), Registered

Max Memory Supported512 GB

Memory Slots4

Memory Supported256 GB registered – ECC, 256 GB registered – non-ECC, 512 GB Load-Reduced – ECC

Memory TechnologyDDR4 SDRAM

RAM Installed0 GB

Channel Quantity4

Drive TypeNo optical drive

Optical Drive TypeNo optical drive, None

Optical Drive Type (2nd)None

RAID LevelsRAID 0, RAID 1, RAID 10, RAID 5

Storage (2nd)None

Storage (3rd)None

Storage (4th)None

Storage Controller (2nd)NVM Express

Storage Controller TypeRAID

TypeNone

Hard Drive Interface TypeNo HDD

Data Link Protocols10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet

Ethernet Ports2 x 10 Gigabit Ethernet

FeaturesKVM over IP support

Remote ManagementIPMI 2.0

Expansion Bays1 (total) / 1 (free) x internal 2.5″

Slots1 (total) / 1 (free) x PCIe 3.0 x8 (low-profile)

Interface Provided1 x management – RJ-45, 1 x VGA, 2 x LAN (10Gigabit Ethernet) – RJ-45, 2 x USB 3.0

Display TechnologyNone.

Graphics Controller ModelASPEED AST2500

Graphics Processor SeriesASPEED AST

Video InterfacesVGA

Audio Input TypeNone

Power Device TypePower adapter

Power Factor Correction (PFC)Yes

Power Provided120 watt

Operating System EditionNo operating system

Form FactorUltra Small Form Factor

Form Factor (RAM)DIMM 288-pin

Storage Controller InterfaceSerial ATA-600

Max Operating Temperature104 degree Fahrenheit

Min Operating Temperature32 degree Fahrenheit

Operating Humidity8 – 90% (non-condensing)

Controllers Included1

Printer Product TypeNone

Internal Bays1

Manufacturer Form FactorMini-ITX Box PC

Packaged Quantity1

Product TypeServer

Storage Controller (2nd)1

Height1.7 inch

Height (Rack Units)1

Weight3.44 lbs

Width10 inch

Depth8.9 inch

ColorBlack

Color CategoryBlack

Compliant StandardsACPI 5.0, RoHS

ENERGY STAR CertifiedNo

TCO CertifiedNo

Service & Support DetailsLimited warranty – labor – 3 years, Limited warranty – parts – 1 year

Limited Warranty3 Year
