Home » Products » Servers » Supermicro UP SuperServer 510T-ML – Mini-1U no CPU – 0 GB – no HDD

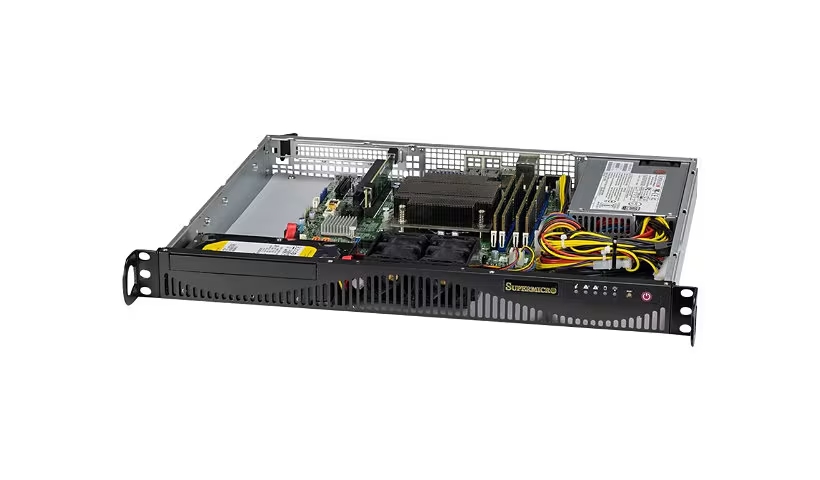

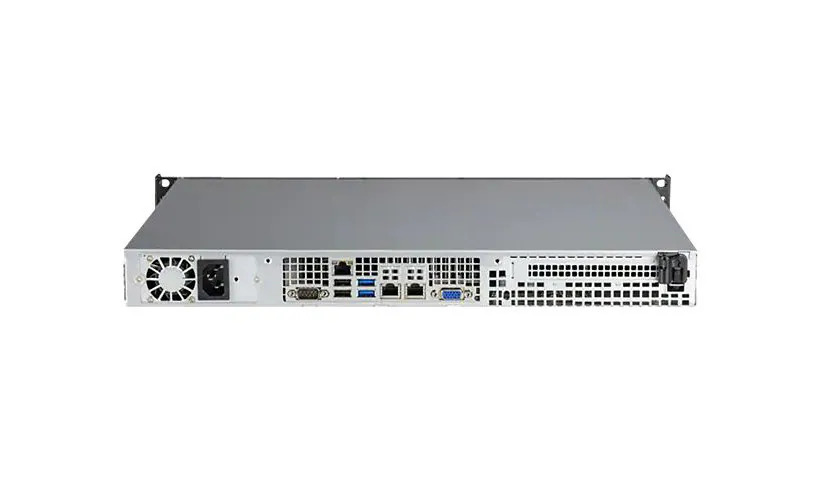

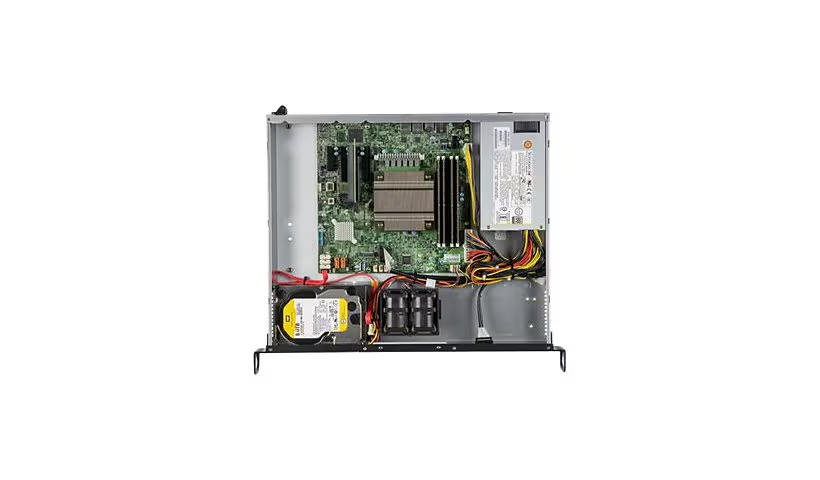

Supermicro UP SuperServer 510T-ML – Mini-1U no CPU – 0 GB – no HDD

(SYS-510T-ML)

Categories: Servers, SuperMicro, Rack Servers

Quick tech specs

ML
Mini-1U
1-way
RAM 0 GB
AST2600
no OS
black
Server
1U
no CPU up to
no HDD
Gigabit Ethernet
monitor: none

Product Specifications

BrandSupermicro

Product LineSupermicro UP SuperServer

Model510T-ML

ManufacturerSuper Micro Computer Inc

Processor SocketLGA1200 Socket

Processor TypeNo CPU

Server Scalability1-way

Total Processor Supported1

UpgradabilityUpgradable

Available Memory Slots4

Data Integrity CheckECC

FeaturesUnbuffered

Max Memory Supported128 GB

Memory Slots4

Memory TechnologyDDR4 SDRAM

RAM Installed0 GB

Channel Quantity6

Drive TypeNo optical drive

Optical Drive TypeNo optical drive, None

Optical Drive Type (2nd)None

RAID LevelsRAID 0, RAID 1, RAID 10, RAID 5

Storage (2nd)None

Storage (3rd)None

Storage (4th)None

Storage Controller TypeRAID

TypeNone

Hard Drive Interface TypeNo HDD

Data Link ProtocolsEthernet, Fast Ethernet, Gigabit Ethernet

Ethernet ControllersIntel I210

Ethernet Ports2 x Gigabit Ethernet

FeaturesKVM over IP support

Remote ManagementIPMI 2.0

Expansion Bays2 (total) / 2 (free) x internal 3.5″

Slots1 (total) / 1 (free) x M.2 Card – 2280/22110 (Key M), 1 (total) / 1 (free) x PCIe 4.0 x16 – half-length, full-height (x8 mode)

Interface Provided1 x management (NIC) – RJ-45, 1 x serial, 1 x VGA, 2 x LAN (Gigabit Ethernet) – RJ-45, 2 x USB 2.0, 3 x USB 3.2 Gen 1 (1 internal)

Display TechnologyNone.

Graphics Controller ModelASPEED AST2600

Graphics Processor SeriesASPEED AST

Video InterfacesVGA

Audio Input TypeNone

Frequency50 – 60 hertz

Power Device TypePower supply

Power Provided350 watt

Required VoltageAC 100-240 volt

80 PLUS Certification80 PLUS Platinum

Operating System EditionNo operating system

Chipset TypeIntel C252

Form FactorRack-mountable

Form Factor (RAM)DIMM 288-pin

Storage Controller InterfaceSerial ATA-600

Max Operating Temperature95 degree Fahrenheit

Min Operating Temperature50 degree Fahrenheit

Motherboard NameSupermicro X12STL-F

Operating Humidity8 – 90% (non-condensing)

Controllers Included1

Printer Product TypeNone

Internal Bays2

Manufacturer Form FactorMini-1U

Packaged Quantity1

Product TypeServer

Included AccessoriesCPU Heatsink, Riser card

Height1.7 inch

Height (Rack Units)1

Weight11 lbs

Width17.2 inch

Depth14.5 inch

ColorBlack

Color CategoryBlack

Service & Support DetailsLimited warranty – labor – 3 years, Limited warranty – parts – 1 year

Limited Warranty3 Year
