SuperServer 2029P-C1R

• Dual Socket P (LGA 3647)
• 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors^‡,
  Dual UPI up to 10.4GT/s
• Support CPU TDP 70-205W

• Up to 28 Cores

BIOS version 3.2

or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)
* CPU SKUs not supported: Gold 6256 and Gold 6250(L) (L = increased memory capacity per socket), Gold 6233W and Gold 5216W

• 16 DIMM slots
• Up to 4TB 3DS ECC DDR4-2933MHz^† RDIMM/LRDIMM
• Supports Intel® Optane™ DCPMM^††

• 2933^†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM

• Intel® C621 chipset

• SATA3 (6Gbps); RAID 0, 1, 5, 10

• Broadcom 3108 SAS3 (12Gbps) controller;
  HW RAID 0, 1, 5, 6, 10, 50, 60

• Dual 1GbE LAN with Intel® X722

• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

• ASPEED AST2500 BMC

• 8 SATA3 (6Gbps) ports

• 8 SAS3 (12Gbps) ports

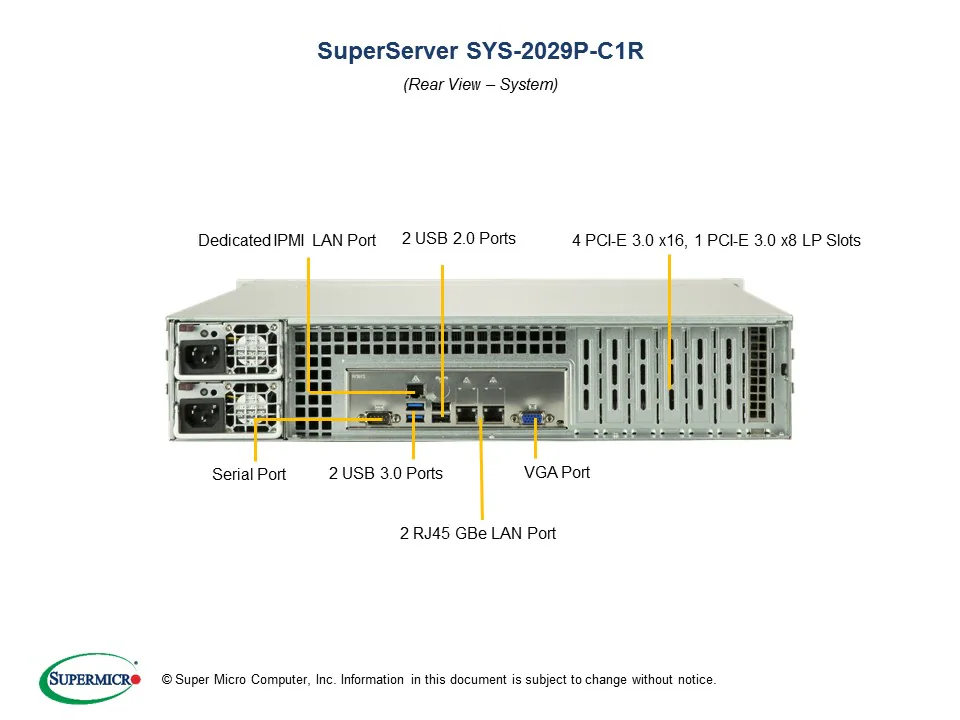

• 2 RJ45 Gigabit Ethernet LAN ports
• 1 RJ45 Dedicated IPMI LAN port

• 2 USB 3.0 ports (2 rear)
• 4 USB 2.0 ports (2 rear, 2 front)
• 1 USB Type A

• 1 VGA Connector

• 2 Fast UART 16550 serial
• 2 COM Ports (1 rear, 1 front)

• AMI UEFI

• Intel® Node Manager
• IPMI 2.0
• KVM with dedicated LAN
• NMI
• SSM, SPM, SUM
• SuperDoctor® 5
• Watchdog

• ACPI Power Management

• Monitors for CPU Cores, Chipset Voltages, Memory.
• 4+1 Phase-switching voltage regulator

• Fans with tachometer monitoring
• Status monitor for speed control
• Pulse Width Modulated (PWM) fan connectors

• Monitoring for CPU and chassis environment
• Thermal Control for fan connectors

• 2U Rackmount

• CSE-213AC-R1K23LPB

• 3.5″ (89mm)

• 17.2″ (437mm)

• 24.8″ (630mm)

• 11″ (H) x 29″ (W) x 38.7″ (D)

• Net Weight: 38 lbs (17.4 kg)
• Gross Weight: 63 lbs (28.8 kg)

• Black

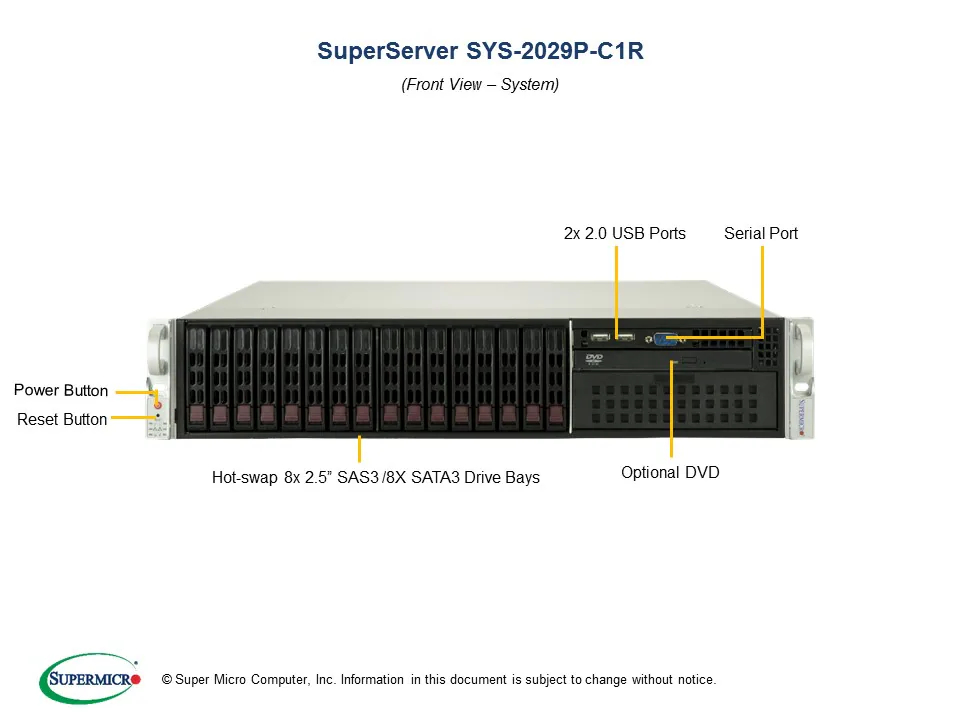

• Power On/Off button
• System Reset button

• Power LED
• Hard drive activity LED
• Network activity LEDs
• System Overheat LED / Fan fail LED /
  UID LED

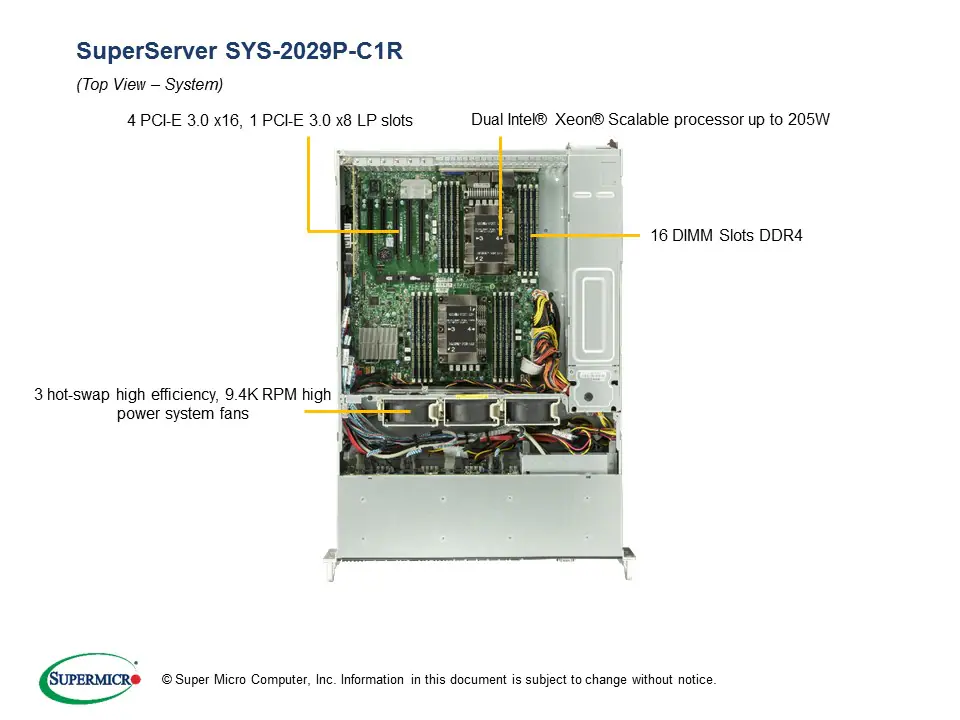

• 4 PCI-E 3.0 x16 slots
• 1 PCI-E 3.0 x8 slot
• Support total of 5 Low-profile AOC

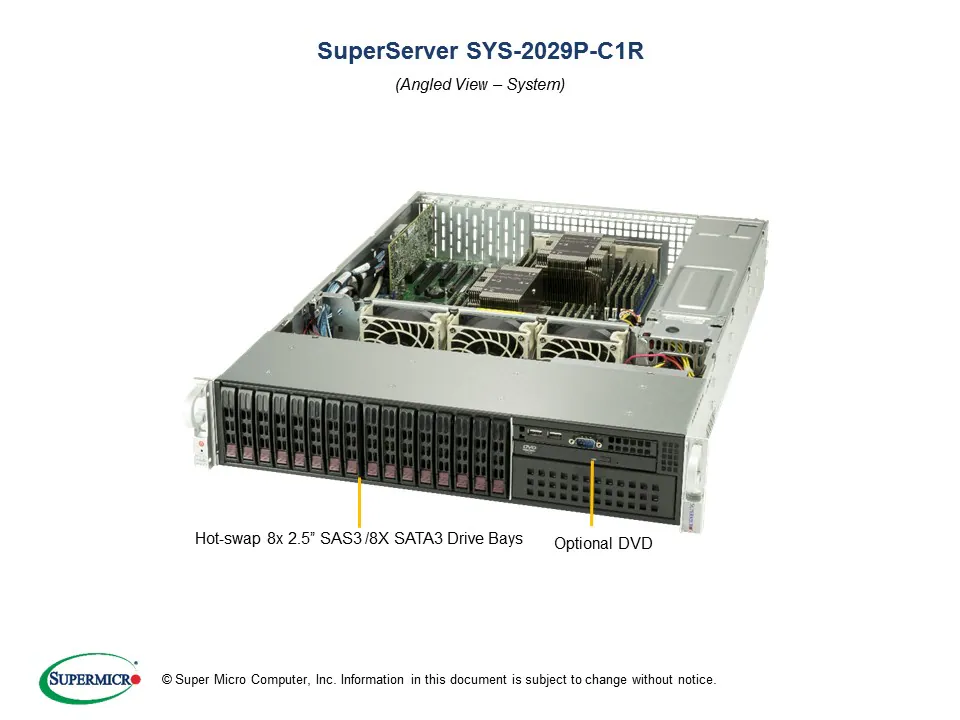

• 8x 2.5″ SAS3 and 8x 2.5″ SATA3 Hot-swap drive bays

• Optional DVD-ROM drive supports 1x slim or 1x 5.25″ DVD drive

• Optional 2 NVMe/SSD/HDD 2.5″ fix drives
• 1 M.2 support

• 3 Heavy duty 8cm fans with PWM fan speed and cooling zone control

• 1000W/1200W

• 76 x 40 x 336 mm

• 100-127Vac / 15-12A / 50-60Hz
• 200-240Vac / 8.5-7A / 50-60Hz
• 200-240Vdc / 8.5-7A (for CCC only)

• Max: 83A / Min: 0A (100-127Vac)
• Max: 100A / Min: 0A (200-240Vac)
• Max: 100A / Min: 0A (200-240Vdc)

• Max: 4A / Min: 0A

• 19 Pairs Gold Finger Connector

• RoHS Compliant

• Operating Temperature:
  10°C ~ 35°C (50°F ~ 95°F)
• Non-operating Temperature:
  -40°C to 60°C (-40°F to 140°F)
• Operating Relative Humidity:
  8% to 90% (non-condensing)
• Non-operating Relative Humidity:
  5% to 95% (non-condensing)
