SuperServer 6029P-TRT

(SYS-6029P-TRT)

instock

Categories: Servers, SuperMicro, Rack Servers

Key Features

1. Dual Socket P (LGA 3647) support 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake)^‡

2. 16 DIMMs; up to 4TB 3DS ECC DDR4-2933MHz^† RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM^††3. 4 PCI-E 3.0 x16, 2 PCI-E 3.0 x8 slots
4. 8 Hot-swap 3.5″ SATA3 drive bays; RAID 0, 1, 5, 10
5. Optional DVD-ROM drive, optional support: 2 fixed 2.5″ NVMe/SSD/HDD,1 M.2 support
6. M.2 Interface: PCI-E 3.0 x4 M.2 Form Factor: 2260, 2280, 22110 M.2 Key: M-Key
7. 2x 10GBase-T LAN ports with Intel X722
8. 1000W Redundant Power Supplies Titanium Level (96% efficiency)

MSRP^*

N/A

* Manufacturer’s Suggested Retail Price

Product Specifications

Motherboard

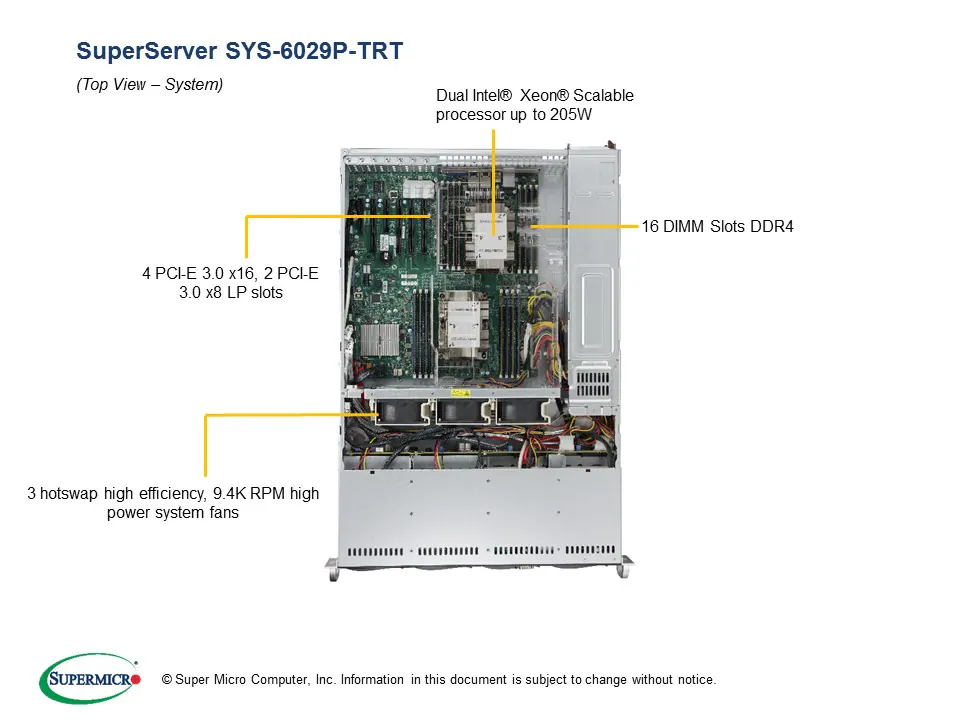

Super X11DPi-NT

CPU

Dual Socket P (LGA 3647)
2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors^‡,
Dual UPI up to 10.4GT/s
Support CPU TDP 70-205W

Cores

Up to 28 Cores

Note

^‡

BIOS version 3.2

or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)
* CPU SKUs not supported: Gold 6256 and Gold 6250(L) (L = increased memory capacity per socket), Gold 6233W and Gold 5216W

Memory Capacity	16 DIMM slots Up to 4TB 3DS ECC DDR4-2933MHz^† RDIMM/LRDIMM Supports Intel® Optane™ DCPMM^††
Memory Type	2933^†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
Note	^† 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro ^†† Cascade Lake only. Contact your Supermicro sales rep for more info.

Chipset	Intel® C622 chipset
SATA	SATA3 (6Gbps); RAID 0, 1, 5, 10
Network Controllers	Intel® X722 10GBase-T Ethernet Controller Virtual Machine Device Queues reduce I/O overhead Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics	ASPEED AST2500 BMC

SATA	8 SATA3 (6Gbps) ports

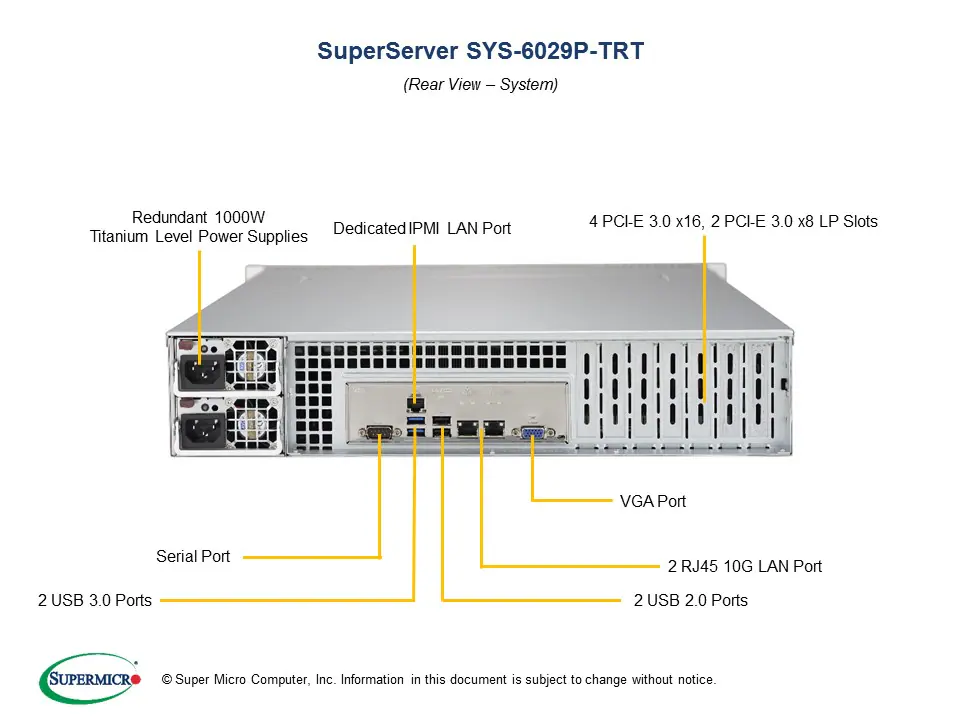

LAN	2 RJ45 10GBase-T Ethernet LAN ports 1 RJ45 Dedicated IPMI LAN port
USB	Rear USB: 2 USB 3.0 + 2 USB 2.0 Front USB: 2 USB 2.0 USB Header: 1 Type A
VGA	1 VGA port
Serial Port / Header	2 Fast UART 16550 serial 2 COM Ports (1 rear, 1 header)
DOM	2 SuperDOM (Disk on Module) ports

BIOS Type

AMI UEFI

Software	Intel® Node Manager IPMI 2.0 KVM with dedicated LAN SSM, SPM, SUM SuperDoctor® 5 Watch Dog
Power Configurations	ACPI / APM Power Management

CPU	Monitors for CPU Cores, Chipset Voltages, Memory. 4+1 Phase-switching voltage regulator
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors

Form Factor	2U Rackmount
Model	CSE-825TQC-R1K03LPB

Width	17.2″ (437mm)
Height	3.5″ (89mm)
Depth	25.5″ (647mm)
Package	26.7″ (H) x 11.4″ (W) x 34.5″ (D)
Weight	Net Weight: 35.5 lbs (16.1 kg) Gross Weight: 69 lbs (31.2 kg)
Available Colors	Black

Buttons	Power On/Off button System Reset button UID button
LEDs	Power status LED HDD activity LED Network activity LEDs System information (overheat/UID) LED

PCI-Express

4 PCI-E 3.0 x16 (Low-profile)
2 PCI-E 3.0 x8 (Low-profile)

Hot-swap

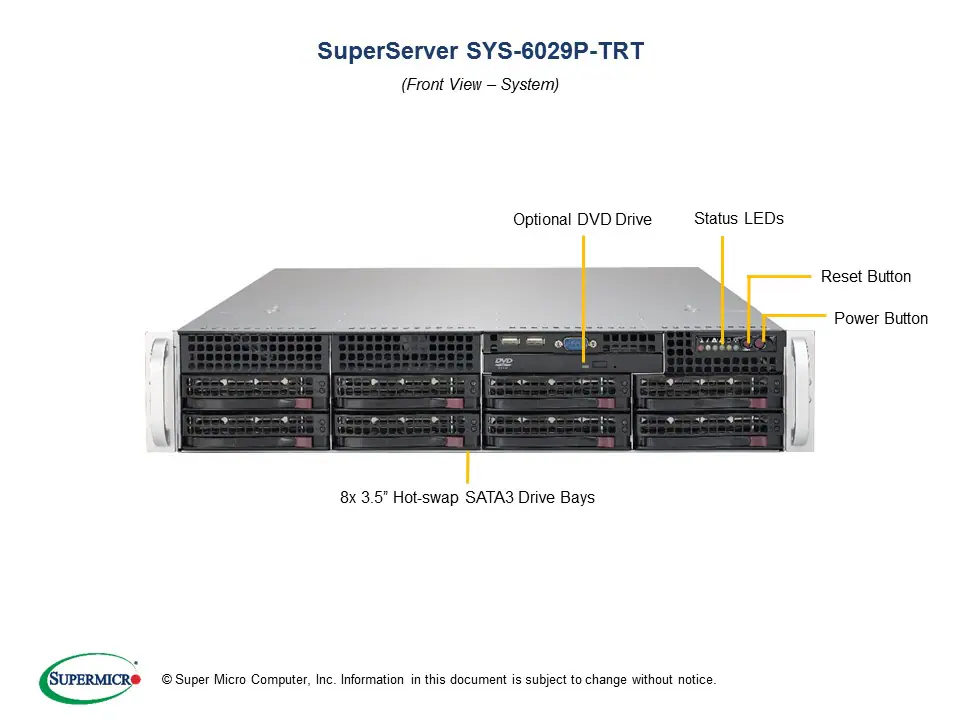

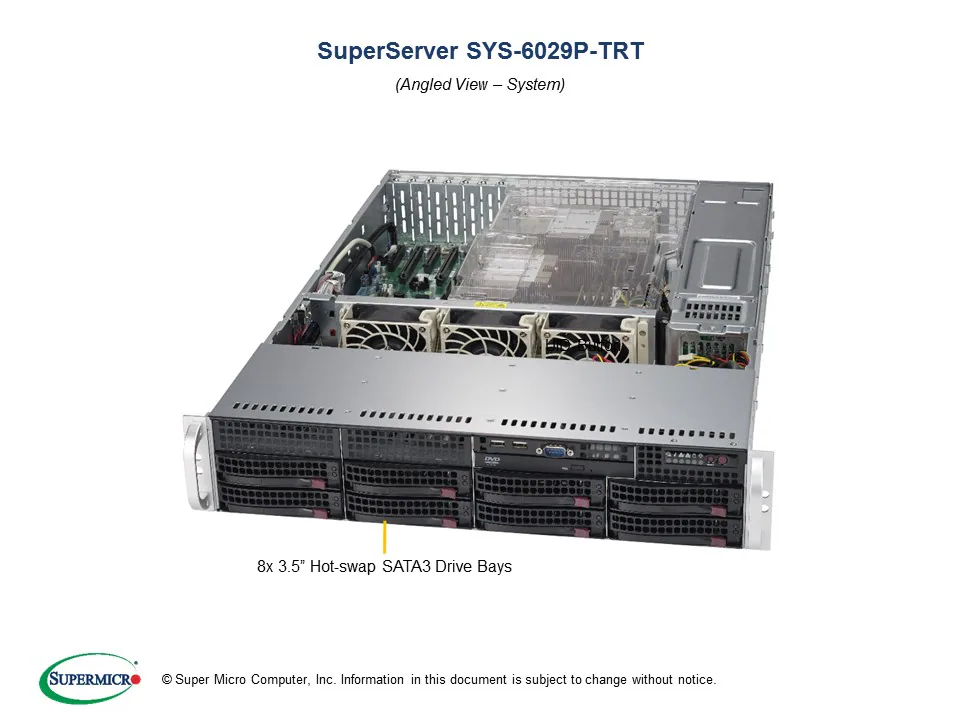

8 Hot-swap 3.5″ SATA drive bays

2U SAS/SATA backplane

Fans	3 Heavy duty 80mm fans with PWM fan speed control

1000W Redundant Power Supplies with PMBus
Total Output Power	800W/1000W
Dimension (W x H x L)	76 x 40 x 336 mm
Input	100-127Vac / 12-9A / 50-60Hz 200-240Vac / 7.2-6A / 50-60Hz 200-240Vdc / 7.2-6A (for CCC only)
+12V	Max: 66.7A / Min. 0A (100-127Vac) Max: 83A / Min. 0A (200-240Vac) Max: 83A / Min. 0A (200-240Vdc)
5Vsb	Max: 4A / Min: 0A
Output Type	19 Pairs Gold Finger Connector
Certification	Titanium Level [ Test Report ]

RoHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
