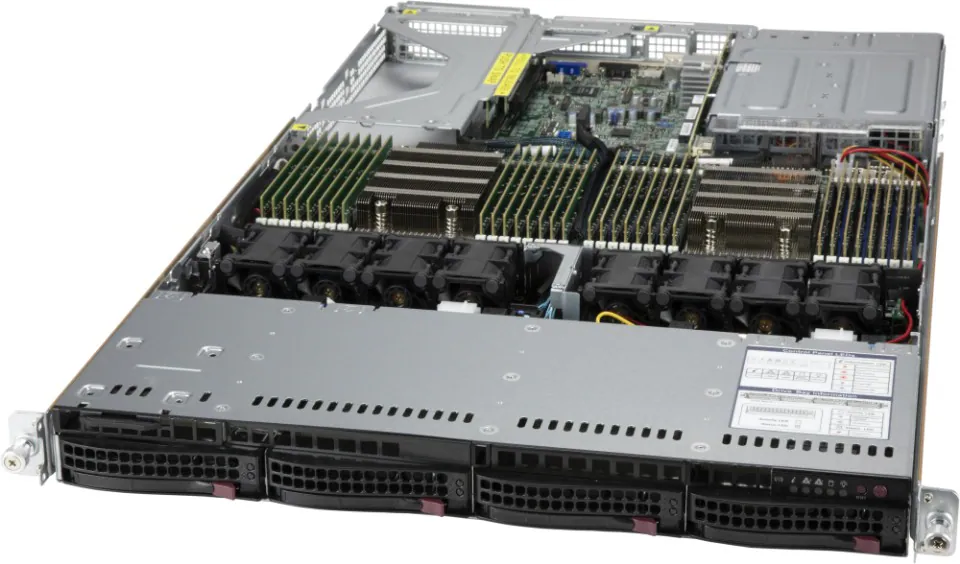

Ultra A+ Server AS -1024US-TNR

(AS -1024US-TNR)

instock

Dual AMD EPYC™ 7003/7002 Series Processors
(The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
8TB Registered ECC DDR4 3200MHz SDRAM in 32 DIMMs
Must bundle with optional Ultra Riser Card
2 PCIe 4.0 x16 FH / 9.5″L slots
1 PCIe 4.0 x16 LP slot
1 PCIe 4.0 x16 (internal proprietary LP slot), Ultra Riser Card must be bundled in order to enable this slot

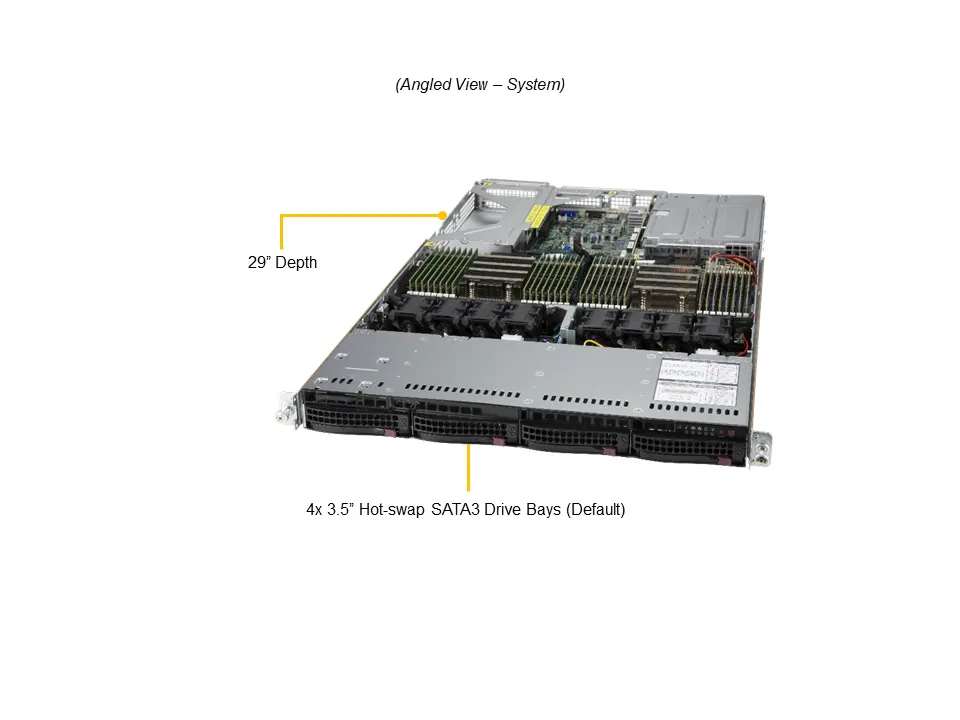

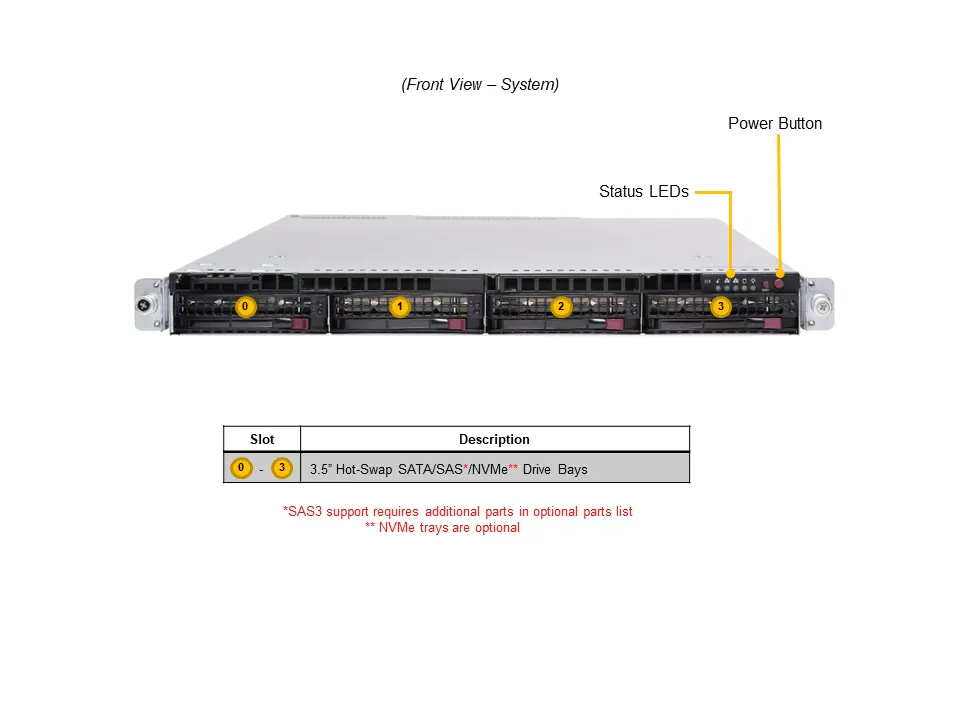

4 hot-swap 3.5″ SATA3 by default
or 4 NVMe (via optional drive tray)
or 4 SAS3 (via optional SAS kit)

MSRP^*

N/A

* Manufacturer’s Suggested Retail Price

Product Specifications

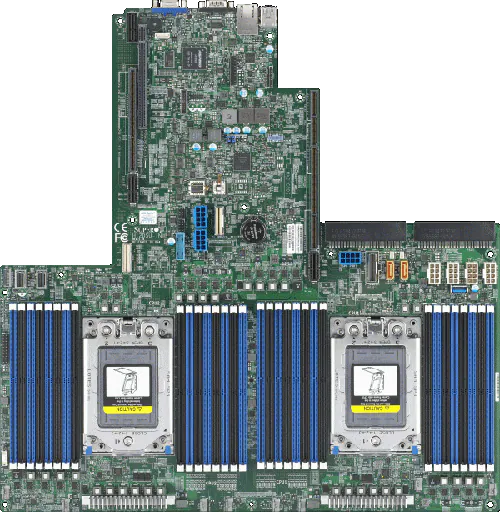

CPU	Dual SP3 AMD EPYC™ 7002/7003 Series Processors
Note	Supports up to 280W TDP CPUs (Air Cooled)

Memory

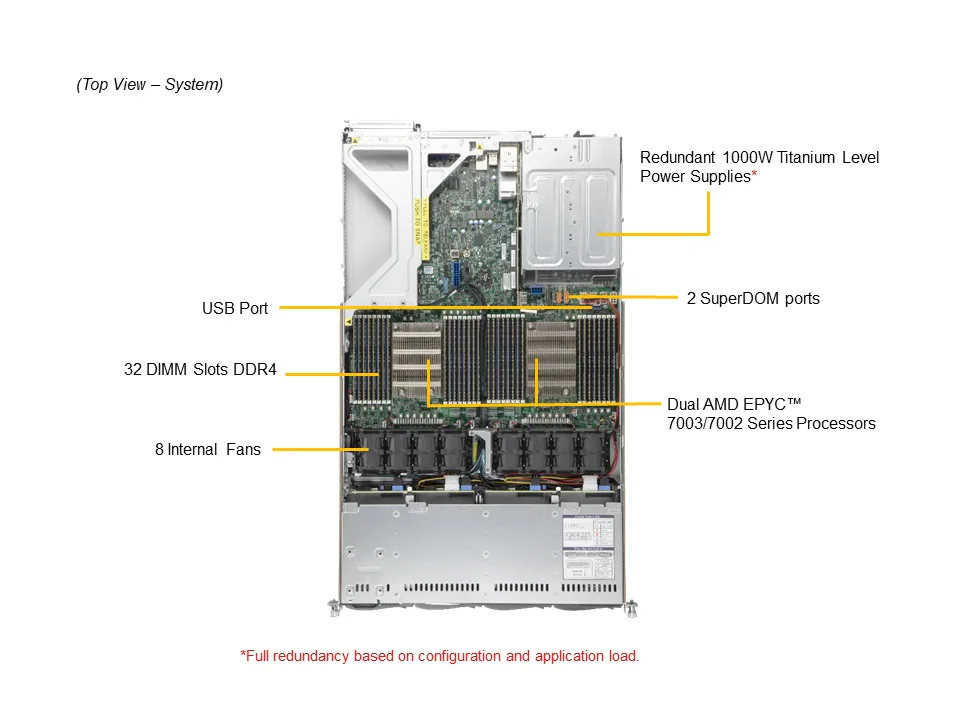

- Slot Count: 32 DIMM slots
- Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMM

Memory Voltage

Chipset

Network Connectivity

BIOS Type	AMI 32MB SPI Flash EEPROM
BIOS Features	Plug and Play (PnP) USB Keyboard support ACPI 5.1 DMI 2.3 PCI 2.2 SMBIOS 3.1.1

Software

Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery System Lockdown

Temperature	Monitoring for CPU and chassis environment CPU thermal trip support Thermal Control for 4x 4-pin fan connectors
FAN	Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
CPU	Monitors for CPU Cores, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages.

Form Factor	1U Rackmount
Model	CSE-819UTS-R1K02P-A

Height	1.7″ (43 mm)
Width	17.2″ (437 mm)
Depth	29″ (737 mm)
Package	7.99″ (H) x 23.81″ (W) x 37.4″ (D)
Weight	Gross Weight: 41 lbs (18.6 kg) Net Weight: 26 lbs (11.8 kg)
Available Color	N/A

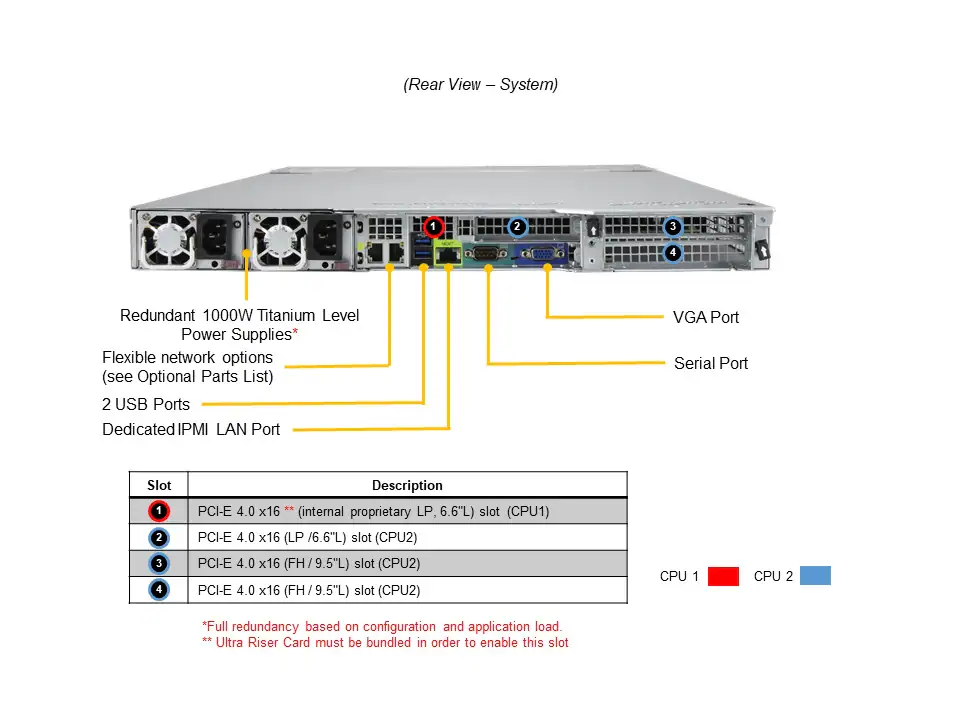

PCI-Express (PCIe) Configuration

- Default
  - 1 PCIe 4.0 x16 LP slot
  - 2 PCIe 4.0 x16 FH, 9.5″L slots
  - 1 PCIe 4.0 x16 INTERNAL slot

Drive Bays Configuration

Fans	Up to 8 heavy duty fans with optimal fan speed control

2x 1000W Redundant (1 + 1) Titanium Level (96%) power supplies

Dimension (WxHxL)	73.5 x 40 x 203 mm
Input	800W: 100-127Vac / 50-60Hz 1000W: 200-240Vdc / 50-60Hz 1000W: 200-240Vac / 50-60Hz
+12V	Max: 66.7A / Min: 0A (100Vac-127Vac) Max: 83A / Min: 0A (200Vac-240Vac) Max: 83A (200Vdc-240Vdc)
12V SB	Max: 2.1A / Min: 0A
Output Type	Backplanes (gold finger)

ROHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
