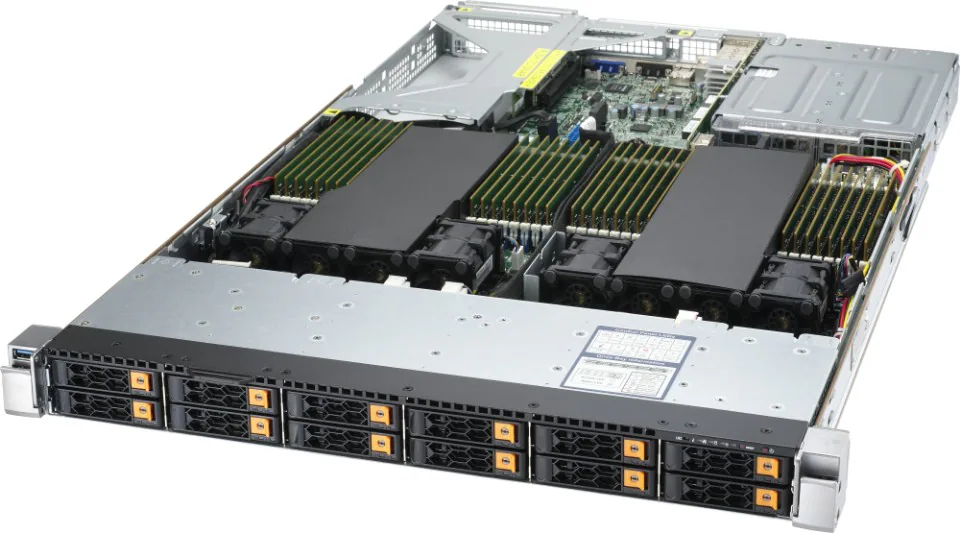

Ultra A+ Server AS -1124US-TNR

(AS -1124US-TNR)

instock

Dual AMD EPYC™ 7003/7002 Series Processors
(The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
8TB Registered ECC DDR4 3200MHz SDRAM in 32 DIMMs
Must bundle with optional Ultra Riser Card
2 PCIe 4.0 x16 FH, 9.5″L
1 PCIe 4.0 x16 LP
1 PCIe 4.0 x16 (internal proprietary LP slot), Ultra Riser Card must be bundled in order to enable this slot

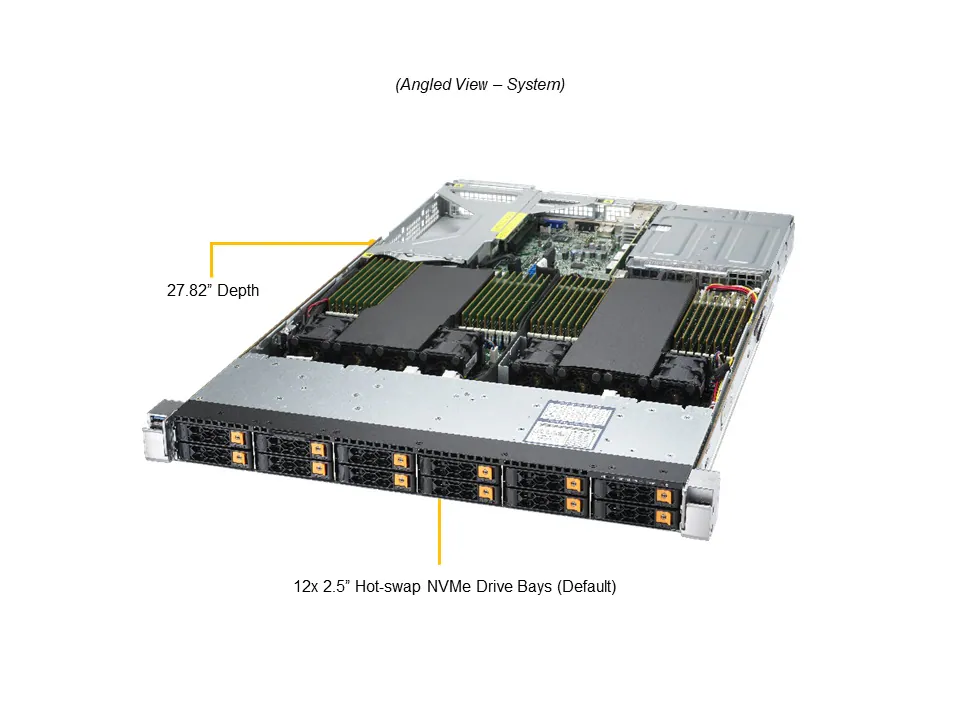

12 Hot-swap 2.5″ NVMe drive bays
or SATA3/SAS3 (via optional SAS kit)

MSRP^*

N/A

* Manufacturer’s Suggested Retail Price

Product Specifications

CPU	Dual SP3 AMD EPYC™ 7002/7003 Series Processors
Note	Supports up to 280W TDP CPUs (Air Cooled)

Memory

- Slot Count: 32 DIMM slots
- Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMM

Memory Voltage

SATA

Chipset

Network Connectivity

BIOS Type	AMI 32MB SPI Flash EEPROM
BIOS Features	Plug and Play (PnP) USB Keyboard support ACPI 5.1 DMI 2.3 PCI 2.2 SMBIOS 3.1.1

Software	Redfish API Supermicro Server Manager (SSM) Supermicro Power Manager (SPM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) KVM with dedicated LAN NMI OOB Management Package (SFT-OOB-LIC )
Power configurations	ACPI Power Management Power-on mode control for AC power loss recovery

Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery System Lockdown

CPU	4+1 Phase-switching voltage regulator Monitors for CPU Cores, Chipset Voltages, Memory.
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors

Form Factor	1U Rackmount
Model	CSE-119UTS-R1K22HP-T

PCI-Express (PCIe) Configuration

- Default
  - 1 PCIe 4.0 x16 LP slot
  - 1 PCIe 4.0 x16 INTERNAL slot
  - 2 PCIe 4.0 x16 FH, 9.5″L slots

Drive Bays Configuration

Fans	Up to 8 heavy duty fans with optimal fan speed control

2x 1200W Redundant (1 + 1) Titanium Level (96%) power supplies

Dimension (WxHxL)	73.5 x 40 x 203 mm
Input	800W: 100-127Vac 800W: 100-127Vac / 50-60Hz 1200W: 200-240Vac 1200W: 200-240Vdc (For CCC Only) 1200W: 200-240Vac / 50-60Hz 1200W: 200-240Vdc / 50-60Hz (for CCC only)
+12V	Max: 66.7A / Min: 0A (100Vac-127Vac) Max: 100A / Min: 0A (200Vdc-240Vdc) Max: 100A / Min: 0A (200Vac-240Vac) Max: 100A / Min: 0A (200Vdc-240Vdc) (For CCC Only)
12V SB	Max: 2.1A / Min: 0A
Output Type	Backplanes (gold finger)

ROHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C to 30°C (50°F to 86°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
