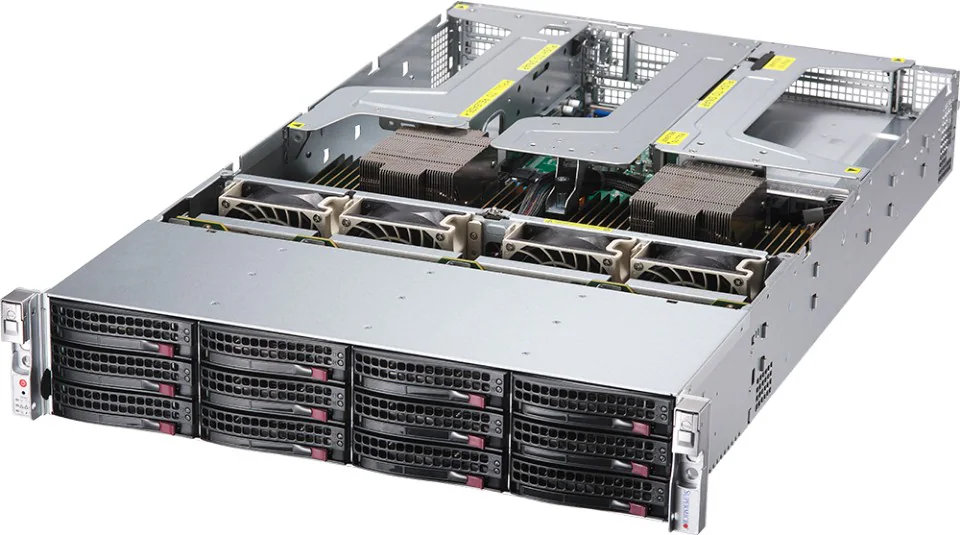

Ultra A+ Server AS -2024US-TNR

(AS -2024US-TNR)

instock

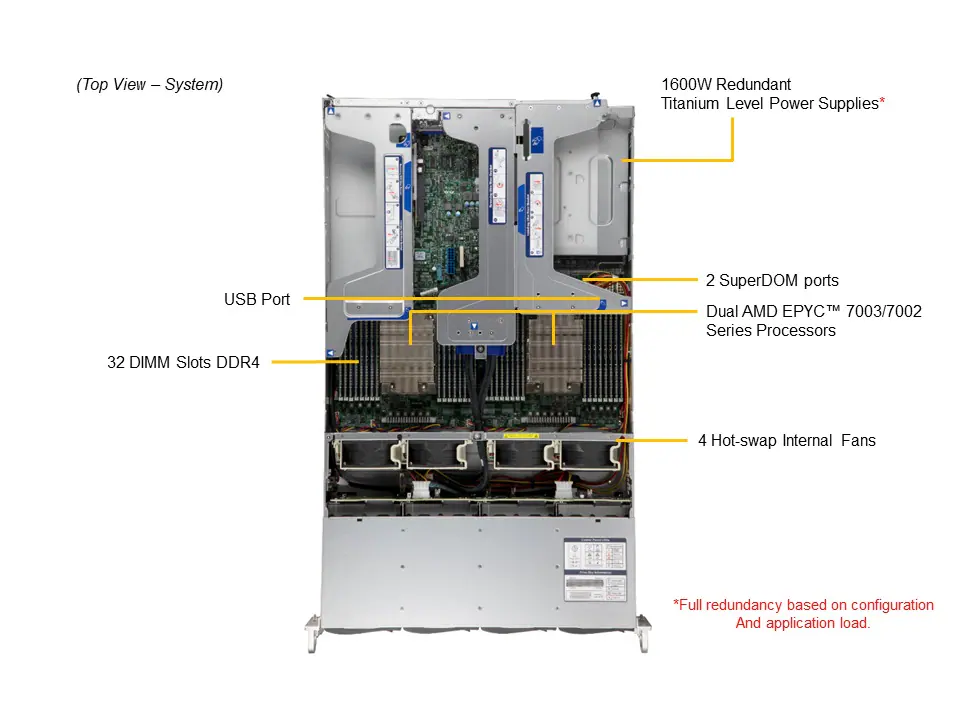

Dual AMD EPYC™ 7003/7002 Series Processors
(The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
8TB Registered ECC DDR4 3200MHz SDRAM in 32 DIMMs
Must bundle with optional Ultra Riser Card

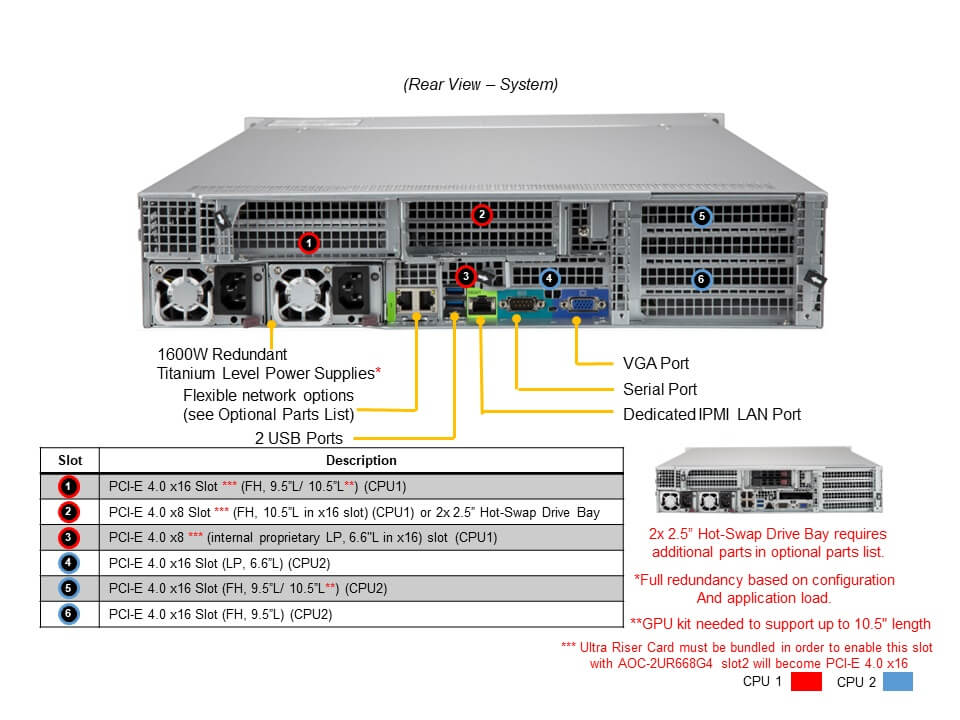

1 PCIe 4.0 x16 (FH/10.5″ L) slot
1 PCIe 4.0 x16 (FH, 9.5″ L) slot
1 PCIe 4.0 x16 (LP) slot,
1 PCIe 4.0 x16 (FH, 10.5″ L) slot, 1 PCIe 4.0 x8 (internal proprietary LP in x16) slot*
1 PCIe 4.0 x8 FH, 9.5″ L (in x16) slot (with AOC-2UR668G4 this slot will become PCIe 4.0 x16)

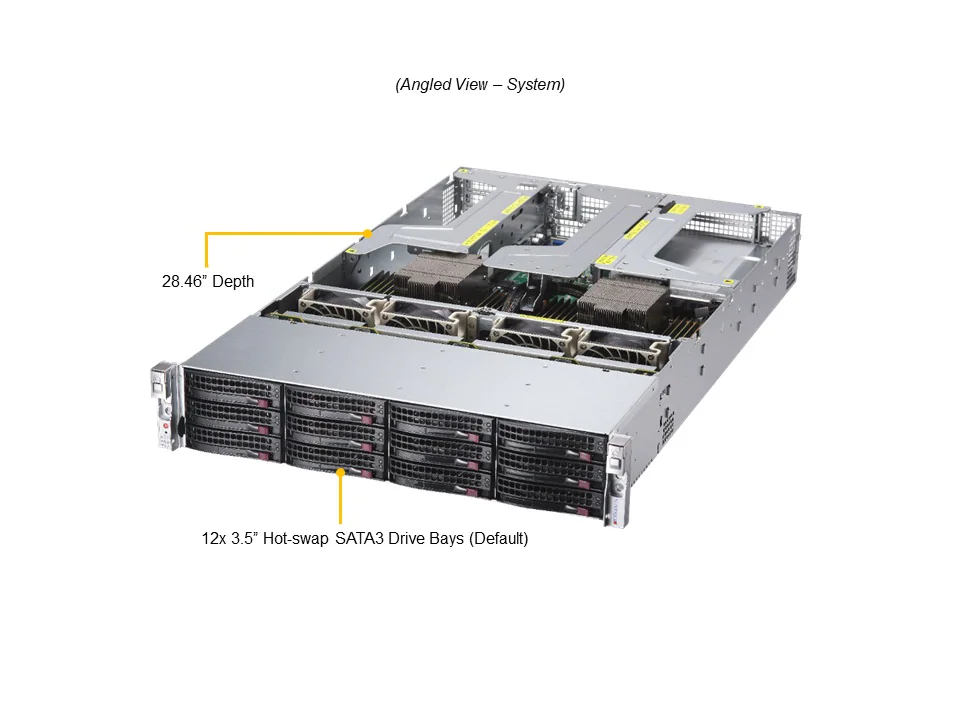

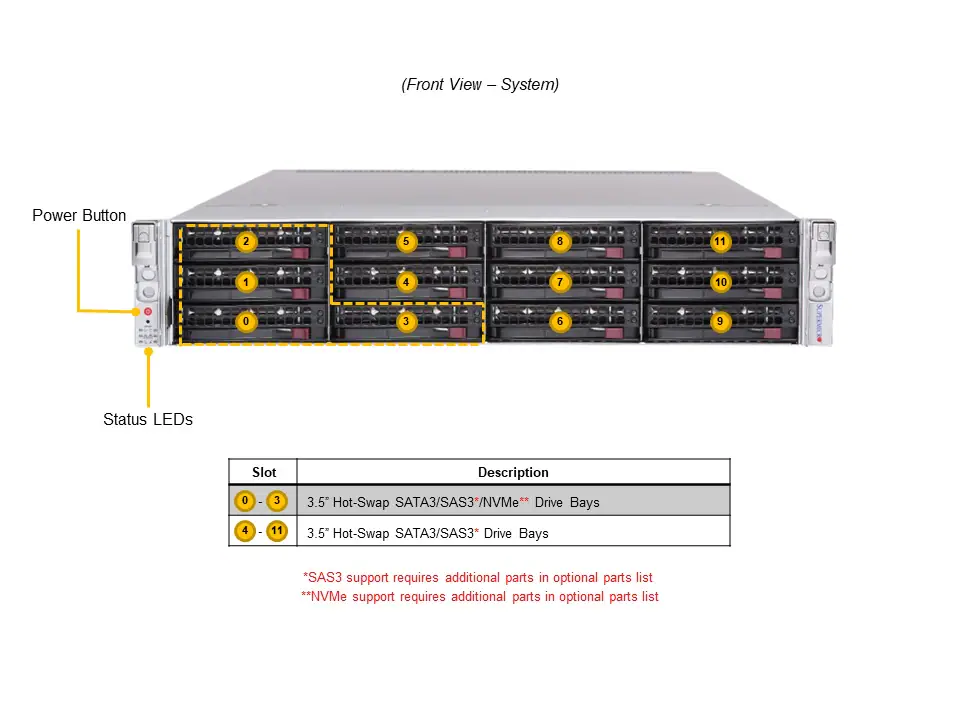

12 hot-swap 3.5″ Drive Bays:
12 SATA3 by default
or 8 SATA3 + 4 NVMe via optional tray

MSRP^*

N/A

* Manufacturer’s Suggested Retail Price

Product Specifications

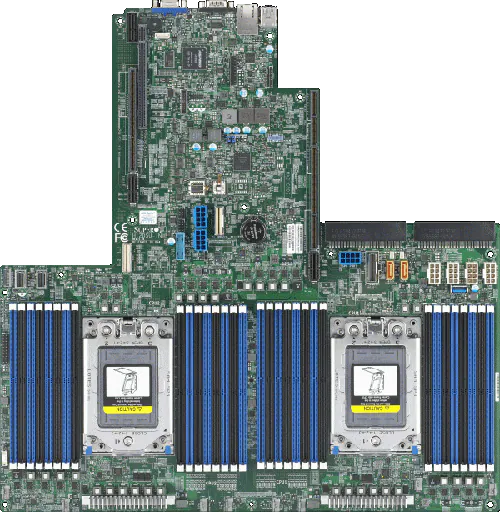

CPU	Dual SP3 AMD EPYC™ 7002/7003 Series Processors
Note	Supports up to 280W TDP CPUs (Air Cooled)

Memory

- Slot Count: 32 DIMM slots
- Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMM

Memory Voltage

Chipset

Network Connectivity

BIOS Type	AMI 32MB SPI Flash EEPROM
BIOS Features	Plug and Play (PnP) USB Keyboard support ACPI 5.1 DMI 2.3 PCI 2.2 SMBIOS 3.1.1

Software

Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery System Lockdown

Temperature	Monitoring for CPU and chassis environment CPU thermal trip support
FAN	Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
CPU	Monitors for CPU Cores, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages.

Form Factor	2U Rackmount
Model	CSE-829U2TS-R1K62P3-T

Height	3.5″ (89 mm)
Width	17.2″ (437 mm)
Depth	28.46″ (723 mm)
Package	10.28″ (H) x 24.65″ (W) x 45.39″ (D)
Weight	Gross Weight: 72 lbs (16.4 kg) Net Weight: 36 lbs (16.4 kg)
Available Color	N/A

PCI-Express (PCIe) Configuration

Drive Bays Configuration

Fans	Up to 4 heavy duty fans with optimal fan speed control

2x 1600W Redundant (1 + 1) Titanium Level (96%) power supplies

Dimension (WxHxL)	73.5 x 40 x 203 mm
Input	1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1600W: 200-240Vac 1600W: 200-240Vac / 50-60Hz
+12V	Max: 83.3A / Min: 0A (100Vac-127Vac) Max: 83A / Min: 0A (100Vac-127Vac) Max: 133A / Min: 0A (200Vac-240Vac)
12V SB	Max: 2.1A / Min: 0A
Output Type	Backplanes (gold finger)
Certification	Titanium Level [ Test Report ]

ROHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
