Ultra A+ Server AS -2024US-TRT

(AS -2024US-TRT)

instock

Dual AMD EPYC™ 7003/7002 Series Processors
(The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
8TB Registered ECC DDR4 3200MHz SDRAM in 32 DIMMs

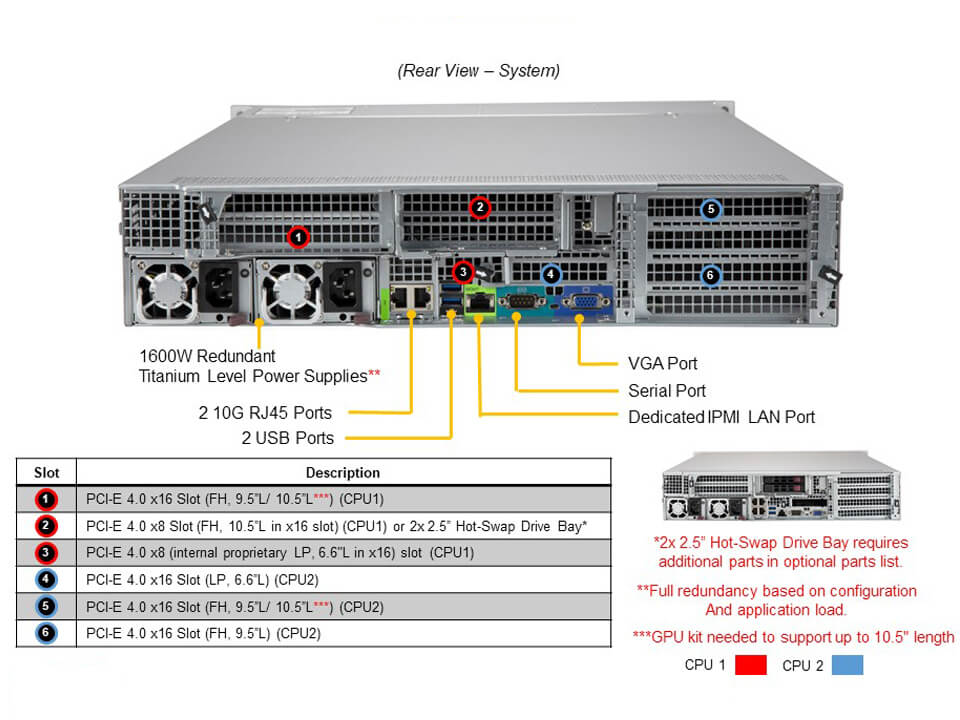

2 PCIe 4.0 x16 (FH, 10.5″ L) slots,
1 PCIe 4.0 x16 (FH, 9.5″ L) slot,
1 PCIe 4.0 x16 (LP) slot,
1 PCIe 4.0 x8 (FH, 9.5″ L, in x16) slot,
1 PCIe 4.0 x8 (internal proprietary LP in x16) slot
Dual 10GBase-T LAN ports via Intel® X710-AT2

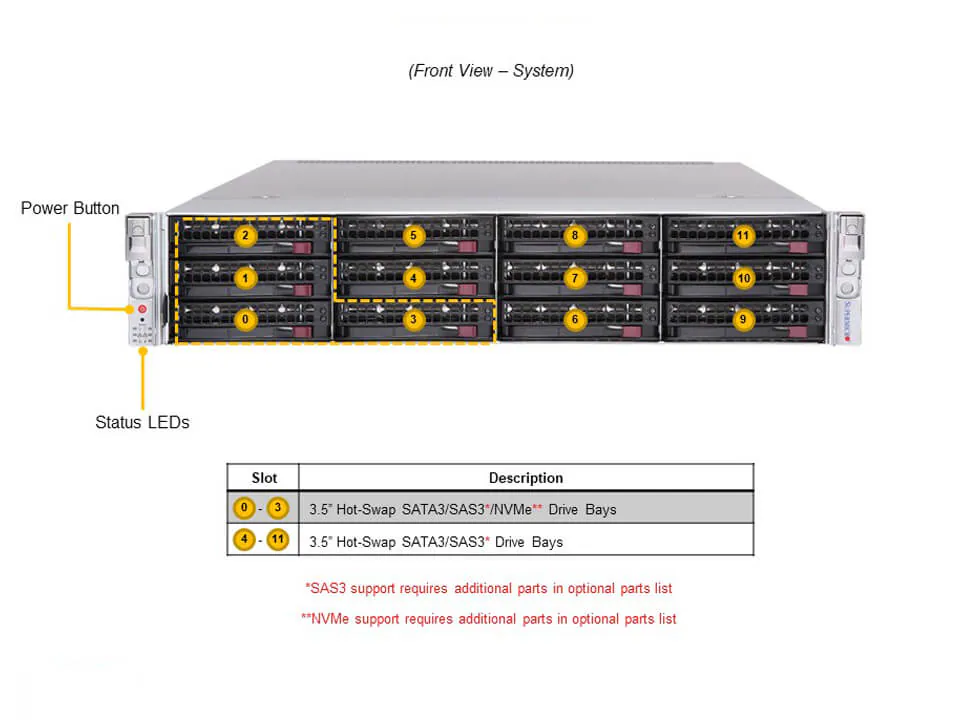

12 SATA3 by default
or 8 SATA3 + 4 NVMe via optional tray
or 12 SAS3 via optional SAS kit

MSRP^*

N/A

* Manufacturer’s Suggested Retail Price

Product Specifications

CPU	Dual SP3 AMD EPYC™ 7002/7003 Series Processors
Note	Supports up to 280W TDP CPUs (Air Cooled)

Max GPU Count

Supported GPU

- NVIDIA PCIe: T4, RTX A6000, RTX A5000, RTX A4000, RTX A2000, RTX 8000, RTX 6000, RTX 4000, A40, A16, A2, A100, A10
- AMD PCIe: Instinct™ MI210, Instinct™ MI100

Memory

- Slot Count: 32 DIMM slots/8 Channels
- Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMM

Memory Voltage

SATA	SATA (6Gbps)
Chipset	System on Chip
Network Connectivity	2 RJ45 10GbE View Network Card (AOC) Options View AOC Options
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

BIOS Type	AMI 32MB SPI Flash EEPROM
BIOS Features	Plug and Play (PnP) USB Keyboard support ACPI 5.1 DMI 2.3 PCI 2.2 SMBIOS 3.1.1

Software

Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery System Lockdown

Temperature	Monitoring for CPU and chassis environment CPU thermal trip support Thermal control for 8x Fan connectors I²C Temperature Sensing Logic
FAN	Status monitor for speed control Pulse Width Modulated (PWM) fan connectors Up to 8-fan status tachometer monitoring Up to eight 4-pin fan headers
CPU	Monitors CPU Core Voltages, +12V, +3.3V, +5V, +5V standby, 3.3V standby, VBAT CPU switching voltage regulator
Other Features	Chassis Intrusion Detection Chassis Intrusion Header

Form Factor	2U Rackmount
Model	CSE-829U2TS-R1K62P3-T

Height	3.5″ (89 mm)
Width	17.2″ (437 mm)

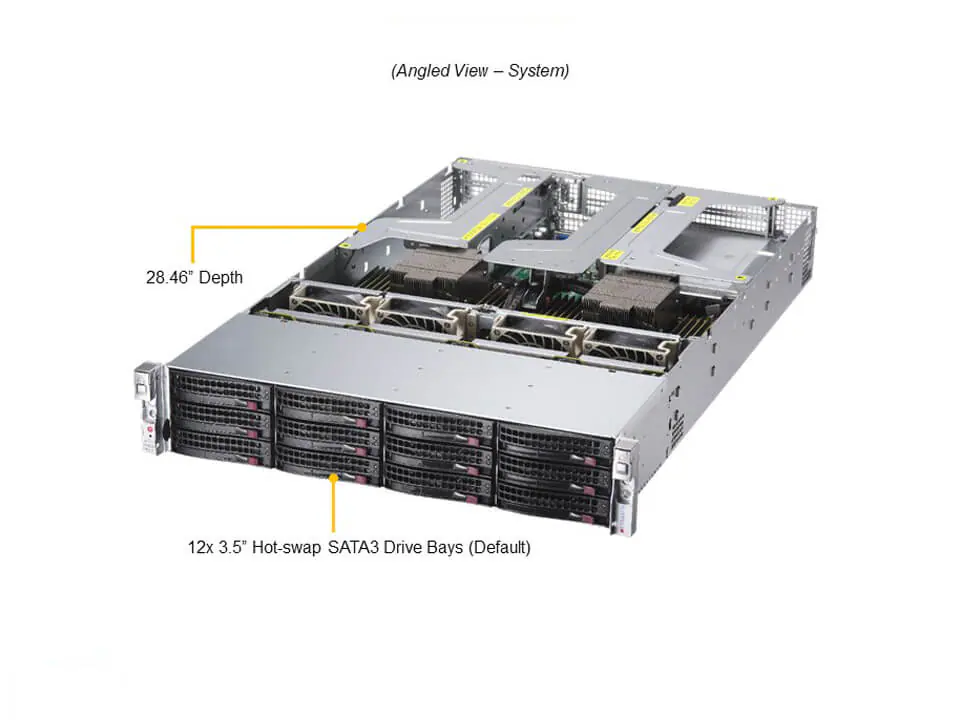

Depth	28.46″ (723 mm)
Package	10.28″ (H) x 24.65″ (W) x 45.39″ (D)
Weight	Gross Weight: 72 lbs (32.7 kg) Net Weight: 36 lbs (16.4 kg)
Available Color	N/A

PCI-Express (PCIe) Configuration

Drive Bays Configuration

Fans	Up to 4 heavy duty fans with optimal fan speed control

2x 1600W Redundant (1 + 1) Titanium Level (96%) power supplies

Dimension (WxHxL)	73.5 x 40 x 203 mm
Input	1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1600W: 200-240Vac 1600W: 200-240Vac / 50-60Hz
+12V	Max: 83.3A / Min: 0A (100Vac-127Vac) Max: 83A / Min: 0A (100Vac-127Vac) Max: 133A / Min: 0A (200Vac-240Vac)
12V SB	Max: 2.1A / Min: 0A
Output Type	Backplanes (gold finger)
Certification	Titanium Level [ Test Report ]

ROHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
