Ultra A+ Server AS -2124US-TNRP

(AS -2124US-TNRP)

instock

Dual AMD EPYC™ 7003/7002 Series Processors
(The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
8TB Registered ECC DDR4 3200MHz SDRAM in 32 DIMMs
1 PCIe 4.0 x16 slot (FH, 9.5″ L)
Additional PCIe slots may available if using the 24 SAS Kits solution (Please contact SMC for more information)

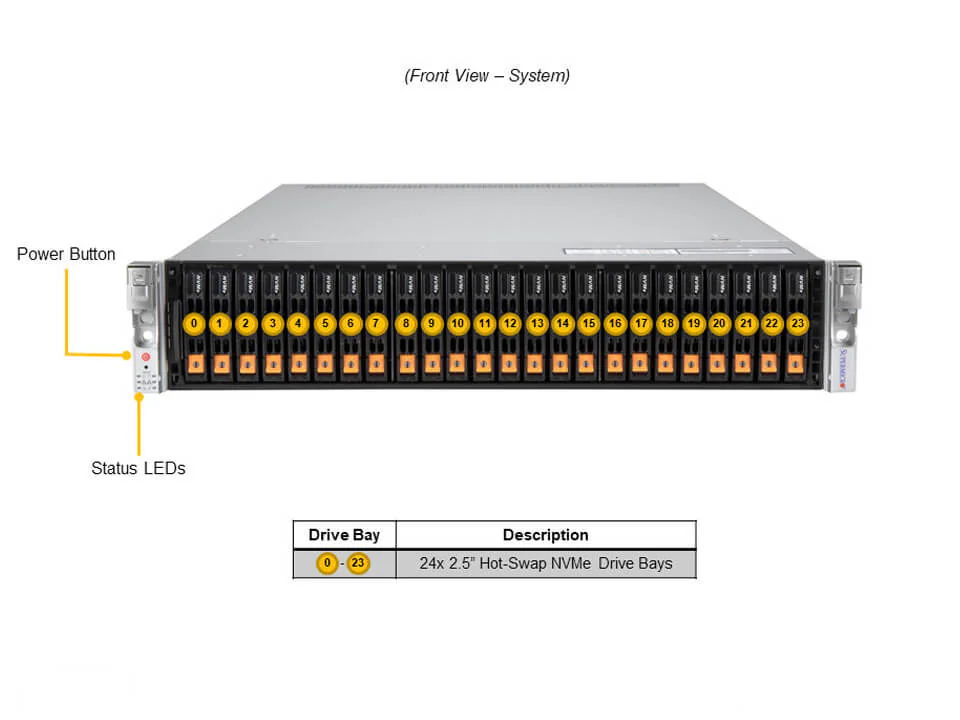

24 Hot-swap 2.5″ NVMe drive bays
Up to 24 SATA/SAS drive support via optional SAS kit

MSRP^*

N/A

* Manufacturer’s Suggested Retail Price

Product Specifications

CPU	Dual SP3 AMD EPYC™ 7002/7003 Series Processors
Note	Supports up to 280W TDP CPUs (Air Cooled)

Memory

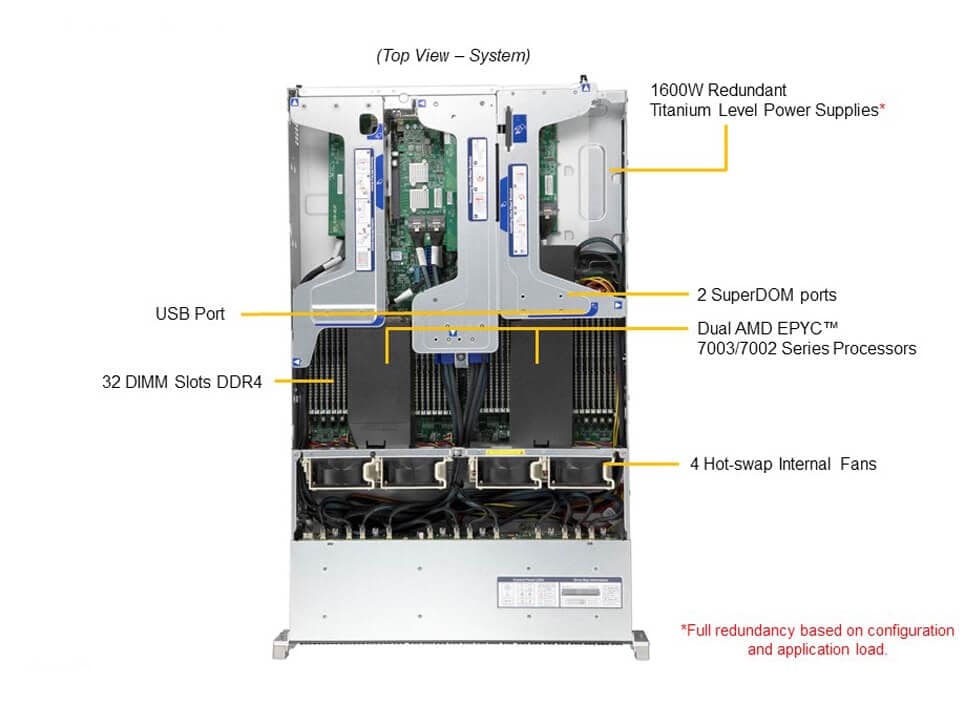

- Slot Count: 32 DIMM slots
- Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMM

Memory Voltage

Chipset

Network Connectivity

IPMI

- Support for Intelligent Platform Management Interface v.2.0
- IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

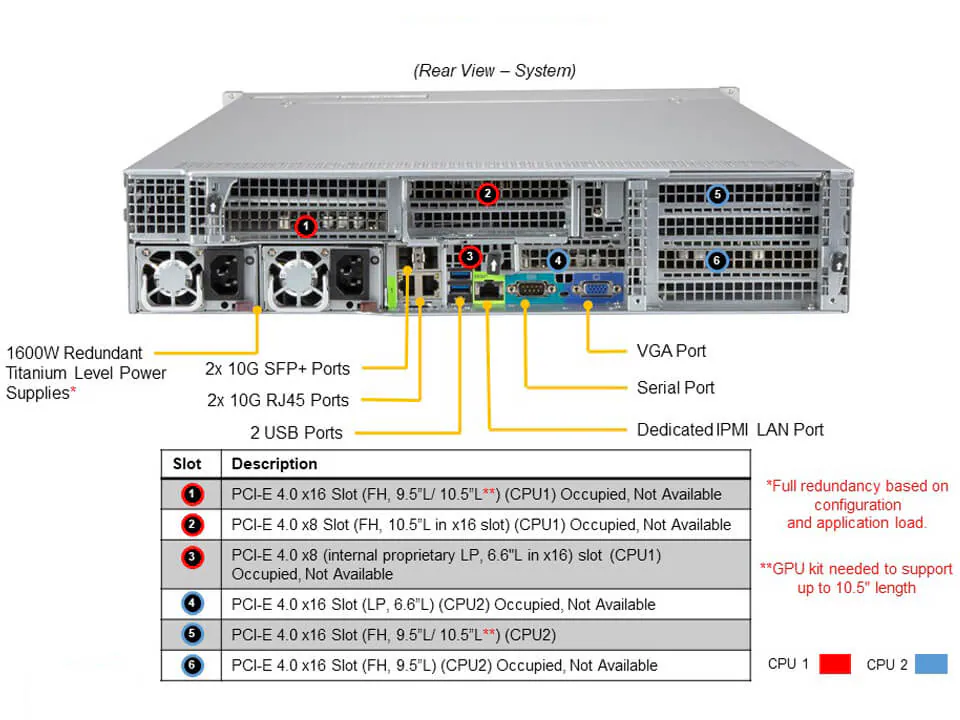

LAN	1 RJ45 1 GbE Dedicated BMC LAN port 2 RJ45 10 GBASE-T LAN ports 2 SFP+ 10 GbE LAN ports
USB	2 USB 3.0 ports(rear) 1 USB 3.0 Type-A port
Video	2 VGA ports
DOM	2 SATA DOM (Disk on Module) ports
TPM	1 TPM header

BIOS Type	AMI 32MB SPI Flash EEPROM
BIOS Features	Plug and Play (PnP) USB Keyboard support ACPI 5.1 DMI 2.3 PCI 2.2 SMBIOS 3.1.1

Software

Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery System Lockdown

Temperature	Monitoring for CPU and chassis environment CPU thermal trip support Thermal control for 4x Fan connectors
FAN	Status monitor for speed control Pulse Width Modulated (PWM) fan connectors Up to 4-fan status tachometer monitoring Up to four 4-pin fan headers
CPU	Monitors CPU Core Voltages, +12V, +3.3V, +5V, +5V standby, 3.3V standby, VBAT CPU switching voltage regulator
Other Features	Chassis Intrusion Detection Chassis Intrusion Header

Form Factor	2U Rackmount
Model	CSE-829U2TS-R1K62P3-T

Height	3.5″ (89 mm)
Width	17.2″ (437 mm)

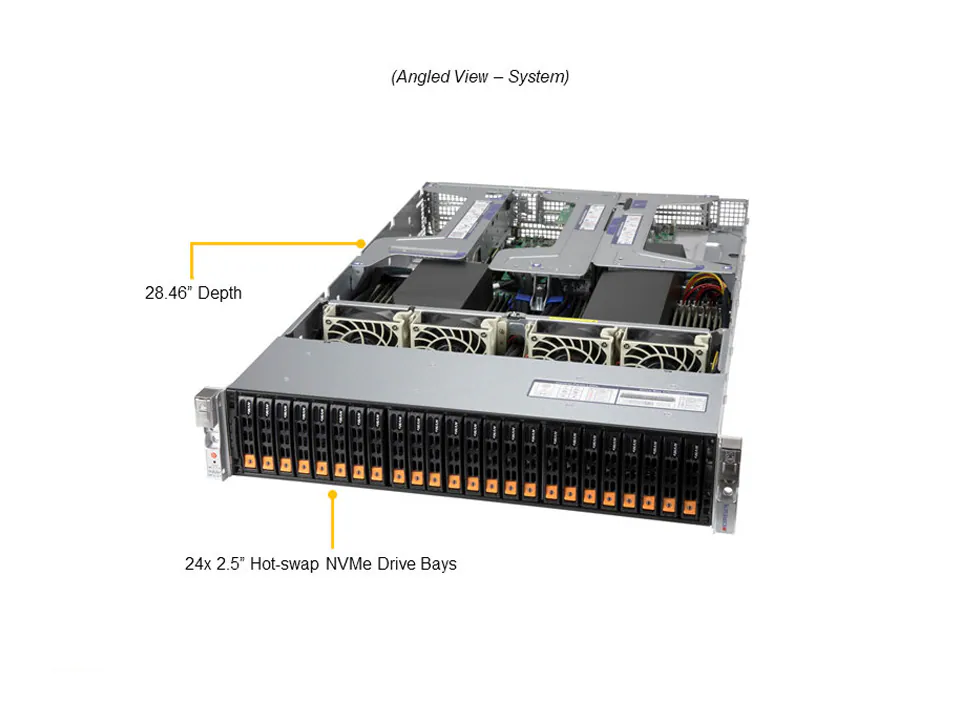

Depth	28.46″ (723 mm)
Package	10.28″ (H) x 24.65″ (W) x 45.39″ (D)
Weight	Gross Weight: 63 lbs (28.6 kg) Net Weight: 39 lbs (17.7 kg)
Available Color	N/A

PCI-Express (PCIe) Configuration

Drive Bays Configuration

- Default: Total 24 bays
  - 24 front hot-swap 2.5″ NVMe drive bays
- Option A: Total 24 bays
  - 24 front hot-swap 2.5″ SAS*/SATA* drive bays
- (*SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)

Fans	Up to 4 heavy-duty PWM with optimal fan speed control Fan(s)

2x 1600W Redundant (1 + 1) Titanium Level (96%) power supplies

Dimension (WxHxL)	73.5 x 40 x 203 mm
Input	1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1600W: 200-240Vac 1600W: 200-240Vac / 50-60Hz
+12V	Max: 83.3A / Min: 0A (100Vac-127Vac) Max: 83A / Min: 0A (100Vac-127Vac) Max: 133A / Min: 0A (200Vac-240Vac)
12V SB	Max: 2.1A / Min: 0A
Output Type	Backplanes (gold finger)
Certification	Titanium Level [ Test Report ]

ROHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
