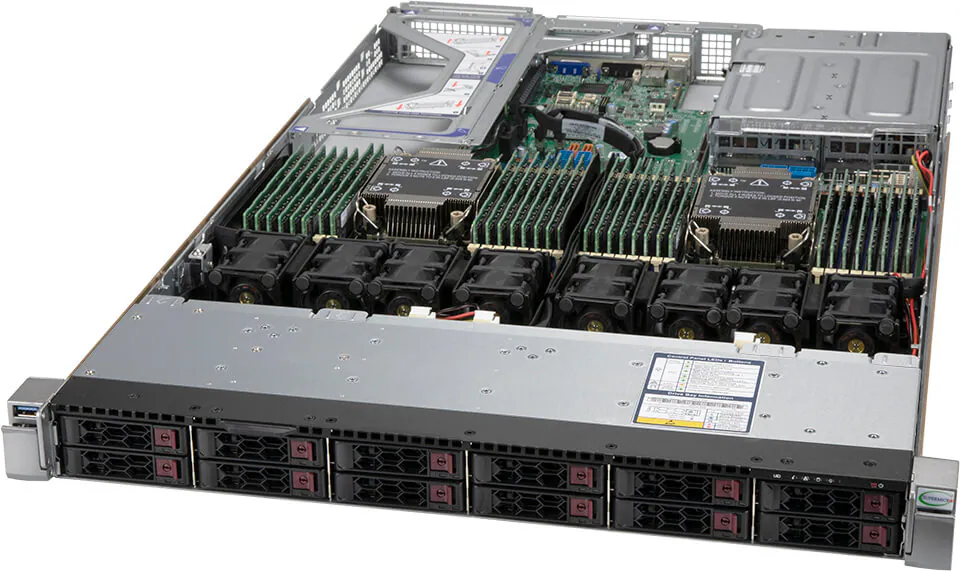

Ultra SuperServer SYS-120U-TNR

(SYS-120U-TNR)

instock

Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors
Intel® C621A Chipset
32 DIMM Slots; Up to 8TB DRAM; Up to 8TB Intel® Optane™ Persistent Memory (up to 12TB with DRAM); 3200/2933/2666 ECC DDR4 LRDIMM;RDIMM; Intel® Optane™ Persistent Memory 200 series
2 PCIe 4.0 x16 (FH, 10.5″L)
1 PCIe 4.0 x16 (LP)
1 Internal PCIe 4.0 x16
Flexible networking options

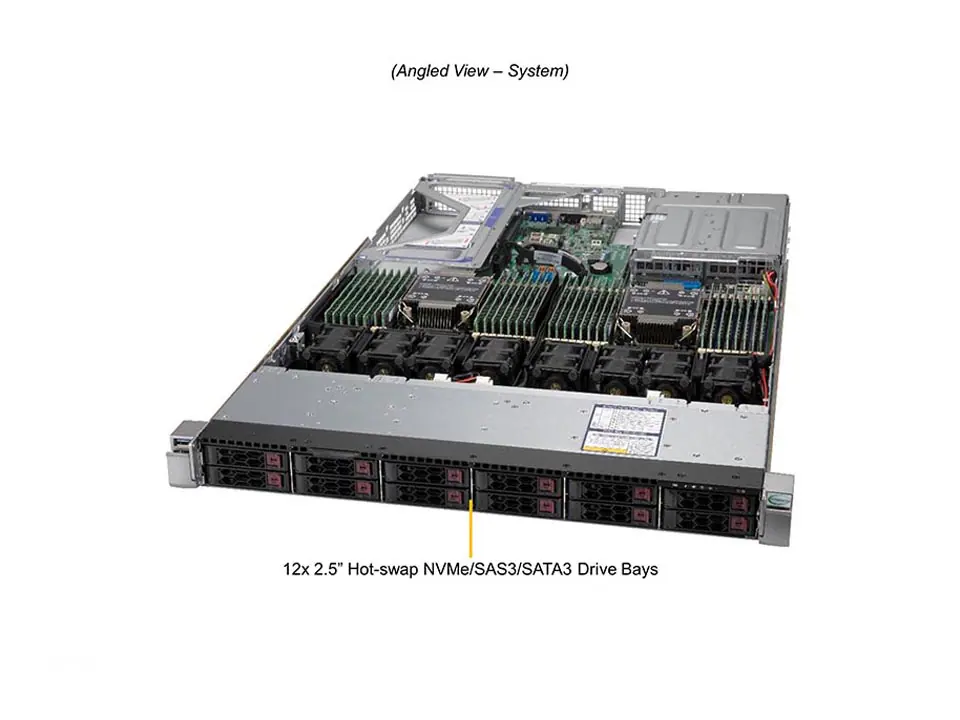

12×2.5″ hot-swap hybrid NVMe/SATA/SAS drive bays
8 heavy duty fans with optimal fan speed control
1200W redundant Titanium level power supplies

MSRP^*

N/A

* Manufacturer’s Suggested Retail Price

Product Specifications

CPU	Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
Core Count	Up to 40C/80T; Up to 60MB Cache per CPU
Note	Supports up to 270W TDP CPUs (Air Cooled)

Max GPU Count

Supported GPU

Certification

Memory

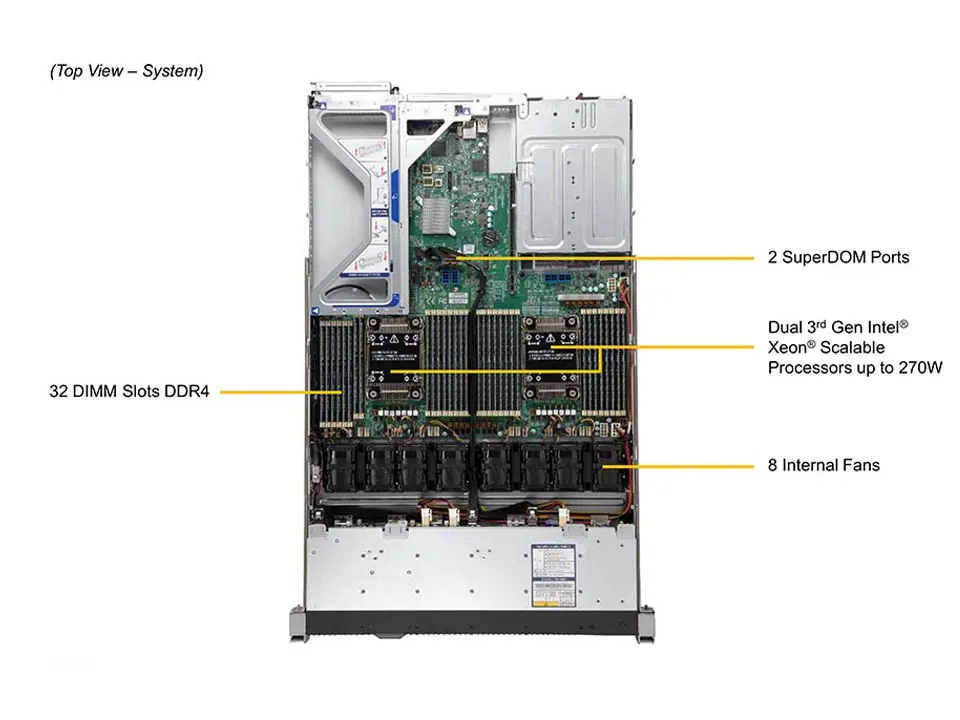

- Slot Count: 32 DIMM slots
- Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
- Supports Intel® Optane™ persistent memory 200 series

Memory Voltage

SATA	SATA (6Gbps) ; RAID 0/1/5/10 support
NVMe	NVMe; RAID 0/1/5/10 support View NVMe Options
Chipset	Intel® C621A
Network Connectivity	2 RJ45 10GBASE-T with Intel® X710-AT2 (optional) 2 RJ45 10GBASE-T with Intel® X710-TM4 (optional) 2 SFP+ 10GbE with Intel® X710-TM4 (optional) No NIC option supported View Network Card (AOC) Options View AOC Options

LAN	1 RJ45 1 GbE Dedicated BMC LAN port
USB	2 USB 3.0 ports(rear) 1 USB 3.0 port(front)
Video	1 VGA port
DOM	2 SuperDOM (Disk on Module) ports

BIOS Type

Software	SuperCloud Composer® Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	Power-on mode for AC power recovery ACPI Power Management

Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery System Lockdown

CPU	Monitors for CPU Cores, Chipset Voltages, Memory 7 +1 Phase-switching voltage regulator
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors

Form Factor	1U Rackmount
Model	CSE-119UH3TS-R1K22P-T

Height	1.7″ (43 mm)
Width	17.2″ (437 mm)
Depth	29.1″ (739 mm)
Package	7.99″ (H) x 23.81″ (W) x 37.4″ (D)
Weight	Gross Weight: 41 lbs (18.6 kg) Net Weight: 26.5 lbs (12.2 kg)
Available Color	Black Front & Silver Body

LED	HDD activity LAN1 activity Power status System information (overheat/UID)
Buttons	Power On/Off UID button

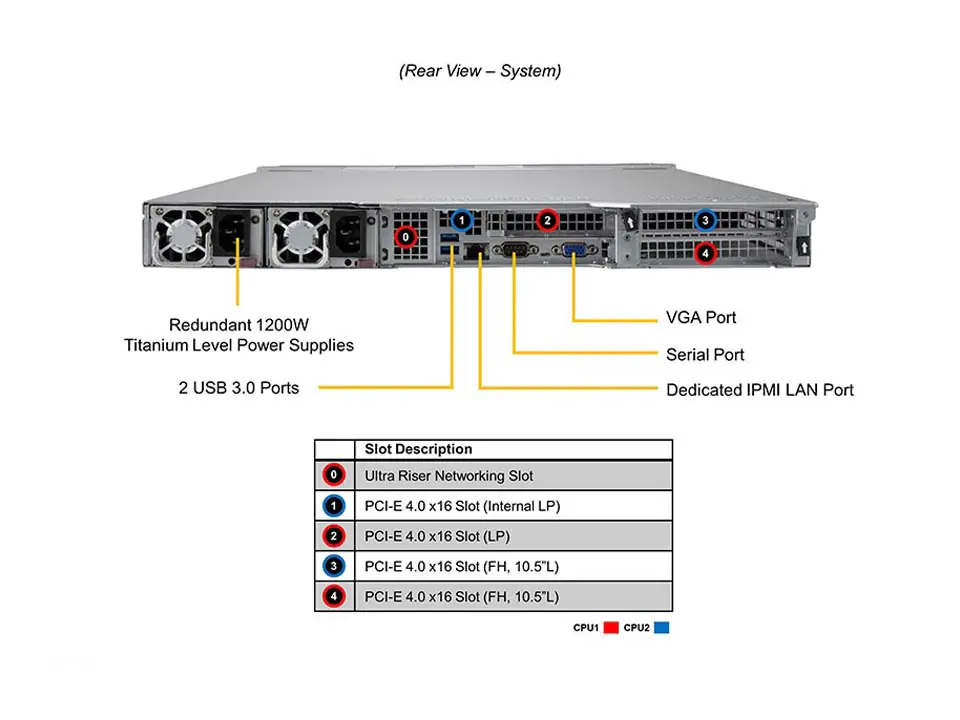

PCI-Express (PCIe) Configuration

- Default
  - 1 PCIe 4.0 x16 LP slot
  - 1 PCIe 4.0 x16 LP slot
  - 2 PCIe 4.0 x16 FH/10.5″L slots

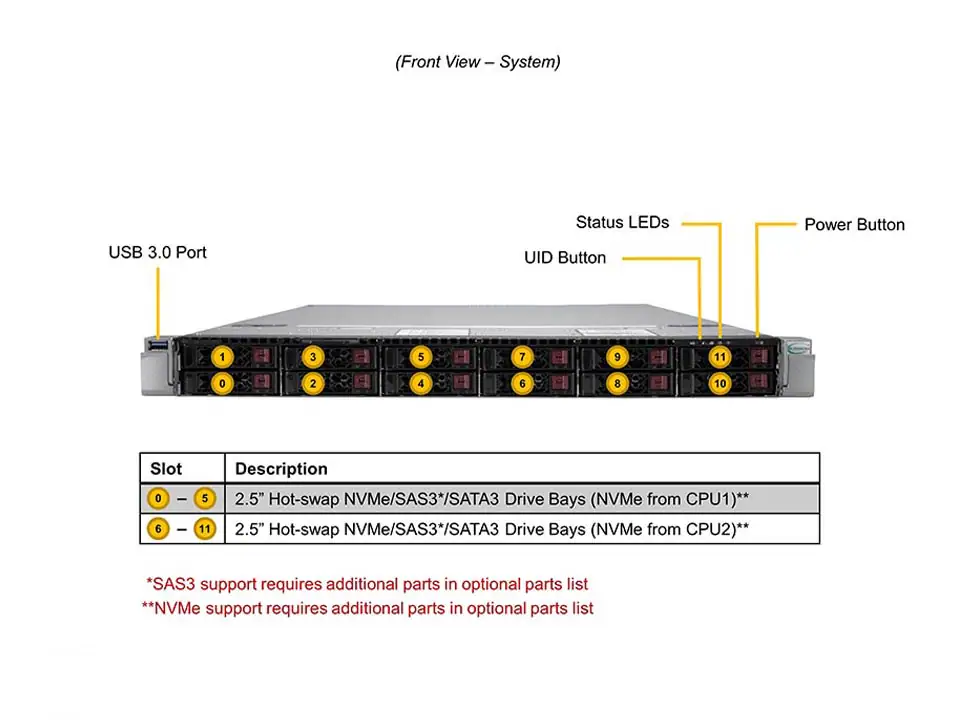

Drive Bays Configuration

- Default: Total 12 bays
  - 12 front hot-swap 2.5″ NVMe/SAS*/SATA drive bays
- (*SAS support may require additional storage controller and/or cables)

Fans	Up to 8x 4cm heavy duty fans with optimal fan speed control
Air Shroud	2 Air Shrouds

1x 1200W Redundant Titanium Level (96%) Hot-plug power supply

Dimension (WxHxL)	73.5 x 40 x 203 mm
Input	800W: 100-127Vac 800W: 100-127Vac / 50-60Hz 1200W: 200-240Vac 1200W: 200-240Vdc (For CCC Only) 1200W: 200-240Vac / 50-60Hz 1200W: 200-240Vdc / 50-60Hz (for CCC only)
+12V	Max: 66.7A / Min: 0A (100Vac-127Vac) Max: 100A / Min: 0A (200Vdc-240Vdc) Max: 100A / Min: 0A (200Vac-240Vac) Max: 100A / Min: 0A (200Vdc-240Vdc) (For CCC Only)
12V SB	Max: 2.1A / Min: 0A
Output Type	Backplanes (gold finger)
