UP SuperServer SYS-510P-MR

(SYS-510P-MR)

instock

Categories: Servers, SuperMicro, Rack Servers

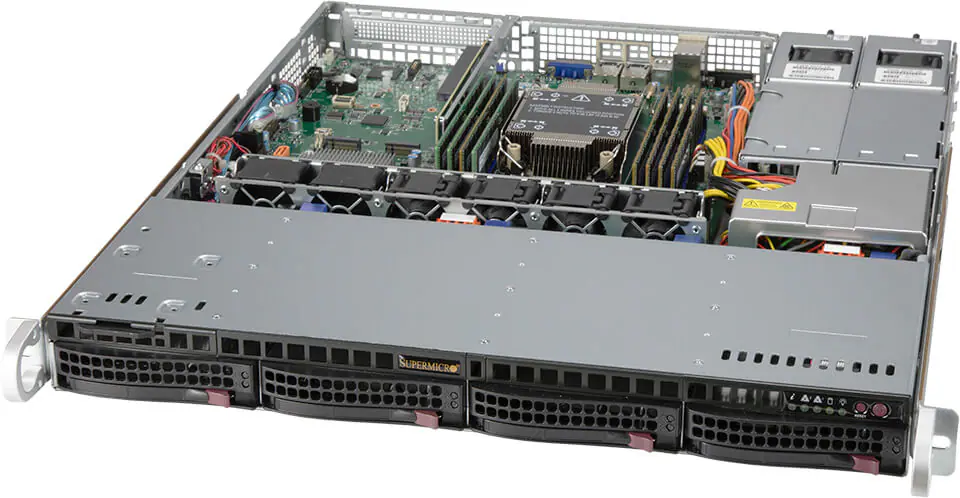

1U Mainstream with 4 hot-swap 3.5″ NVMe/SAS/SATA bays, 1 PCIe 4.0 x16 slot and redundant PSUs

Key Features

Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors Up to 220W TDP.
8 DIMMs; Supports 3DS DDR4-3200: RDIMM/LRDIMM/Intel® Intel® DCPMM
1 PCIe 4.0 x16 (FHHL) slot
Intel® Ethernet Controller i350 2x 1GbE RJ45
4x hot-swap 3.5” Hybrid SATA3/NVMe drive bays, SAS3 with additional SAS controller card; Onboard 2x NVMe/SATA M.2
Redundant Platinum 400W Power Supply

MSRP^*

N/A

* Manufacturer’s Suggested Retail Price

Product Specifications

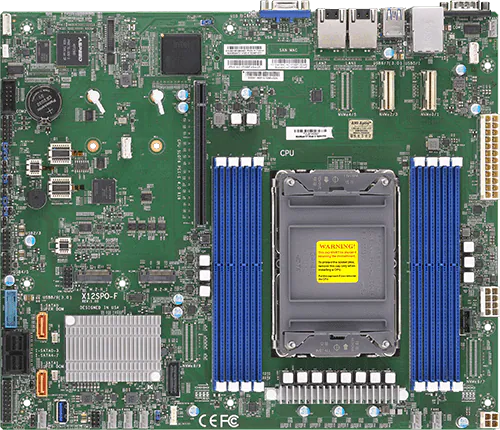

Super X12SPO-F

CPU	Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
Core Count	Up to 36C/72T; Up to 54MB Cache
Note	Supports up to 220W TDP CPUs (Air Cooled)

Max GPU Count

- Up to 1 single-width GPU

Supported GPU

- NVIDIA PCIe: T400

- View GPU Options

CPU-GPU Interconnect

- PCIe 4.0 x16 CPU-to-GPU Interconnect

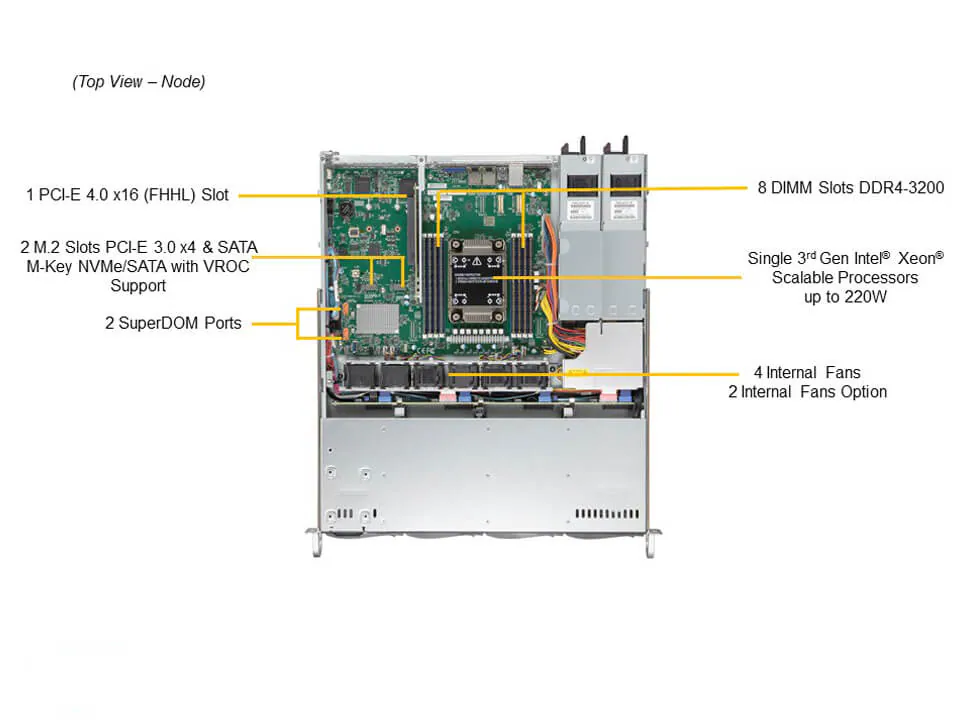

Memory

- Slot Count: 8 DIMM slots
- Max Memory (1DPC): Up to 2TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
- Supports Intel® Optane™ persistent memory 200 series

- View Memory Options

Memory Voltage

- 1.2V

SATA	SATA (6Gbps) ; RAID 0/1/5/10 support
NVMe	NVMe; RAID 0/1/5/10 support(VROC HW key required) View NVMe Options
Chipset	Intel® C621A

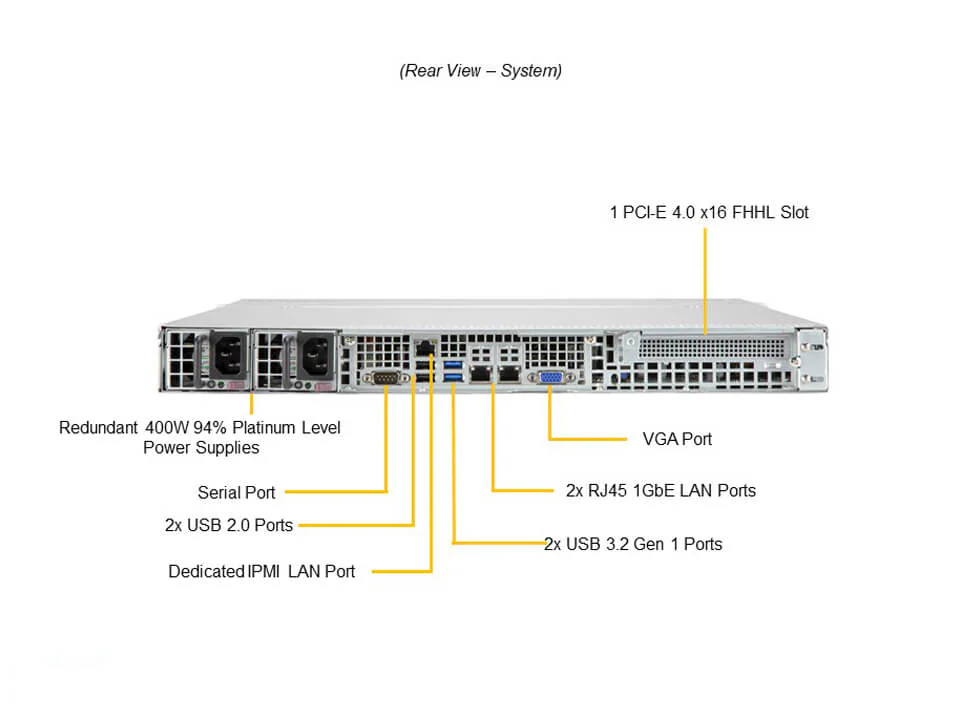

Network Connectivity	2 RJ45 1GbE with Intel® I350 View AOC Options

LAN	2 RJ45 1 GbE LAN ports 1 RJ45 1 GbE Dedicated BMC LAN port (IPMI shared on LAN port 1)
USB	4 USB 2.0 ports(header) 2 USB 3.2 Gen1 Type-A ports(rear) 2 USB 2.0 Type-A ports(rear) 2 USB 3.2 Gen1 ports(Header) 1 USB 3.2 Gen1 Type-A port
Video	1 VGA port
Serial	1 COM port(Rear) 1 COM port(Header)
DOM	2 SuperDOM (Disk on Module) portswith built-in power
TPM	1 TPM header

BIOS Type

AMI 32MB SPI Flash EEPROM

Software	SuperCloud Composer® Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	ACPI/APM Power Management

Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery System Lockdown

CPU	Monitors for CPU Cores, Chipset Voltages, Memory 7+1 Phase-switching voltage regulator
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors

Form Factor	1U Rackmount
Model	CSE-813MF2TS-R407CBP2

Height	1.7″ (43 mm)
Width	17.2″ (437 mm)
Depth	19.98″ (507 mm)
Package	8.5″ (H) x 24″ (W) x 29.5″ (D)
Weight	Gross Weight: 30.4 lbs (13.8 kg) Net Weight: 17.6 lbs (8 kg)
Available Color	Black

LED

Device Activity
LAN 1 Activity
LAN 2 Activity
Power status
System information

Buttons

Power On/Off
System Reset

PCI-Express (PCIe) Configuration

- Default
  - 1 PCIe 4.0 x16 FHHL slot

- View AOC Options

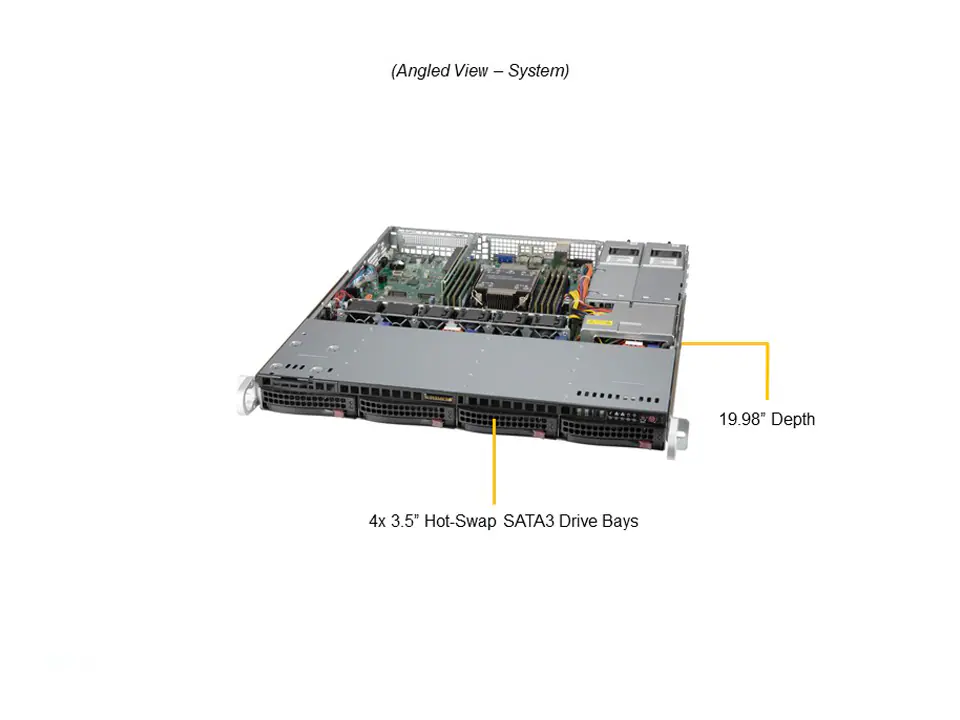

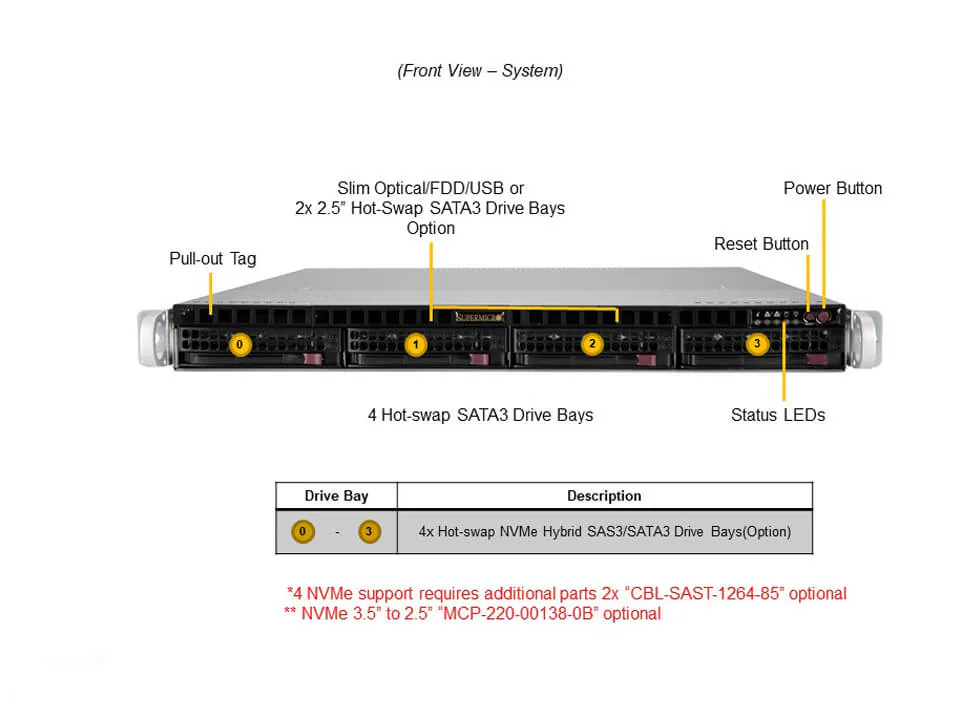

Drive Bays Configuration

- Default: Total 4 bays
  - 4 front hot-swap 3.5″ PCIe 4.0 NVMe*/SAS*/SATA drive bays
- (*NVMe/SAS support may require additional storage controller and/or cables)

- View NVMe Options
- View Drive Options

M.2

- 2 M.2 PCIe 3.0 x4 NVMe/SATA slots (M-key 2280/22110)

- View M.2 Options

Peripheral Bays

- 2 2.5″ bays (optional)

Fans	Up to 4 middle cooling PWM 40x40x28mm Fan(s) Up to 2 AOC cooling Fan(s) (optional)
Air Shroud	1 Air Shroud

2x 400W Redundant (1 + 1) Platinum Level (94%) power supplies

Dimension (WxHxL)	54.5 x 40.25 x 220 mm
Input	400W: 100-240Vac 400W: 100-240Vac / 50-60Hz 400W: 200-240Vdc / 50-60Hz
+12V	Max: 33A / Min: 0A (100Vac-240Vac) Max: 33A / Min: 0.5A
5V SB	Max: 3A / Min: 0A
Output Type	Backplanes (gold finger)
