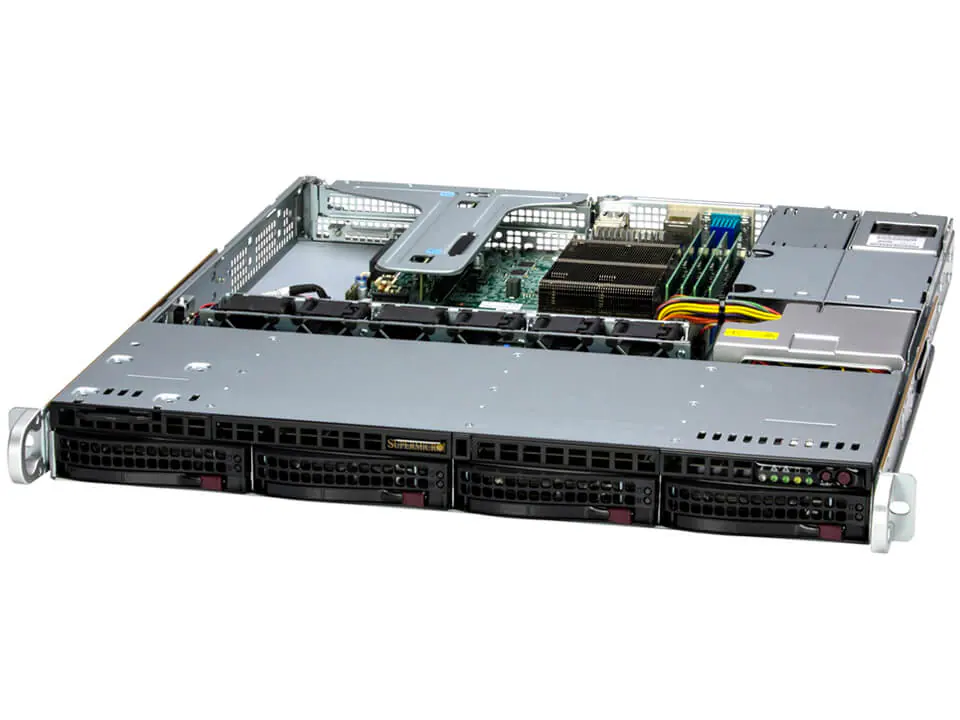

UP SuperServer SYS-511R-M

(SYS-511R-M)
instock
  • Ready to Ship Today
Categories: Servers, SuperMicro, Rack Servers

1U Mainstream server with 4 hot-swap 3.5″ SAS/SATA bays, 2 PCIe 5.0 slots and internal SAS slot

Key Features

  1. Single Socket V0 (LGA-1700) supports Intel® Xeon® 6300-series / E-2400 series, Intel® Pentium® processors
  2. 4 DIMMs; Up to 128GB of DDR5 ECC UDIMM memory with speeds of up to 4400MHz
  3. 1 PCIe 5.0 x16 or 2 PCIe 5.0 x8 (FHHL & LP);
    1 Dedicated Internal HBA slot
  4. Intel® Ethernet Controller i210 2x 1GbE RJ45
  5. Default single Titanium 600W Power Supply; Optional redundant power by adding 1x Power Supply Module
MSRP*
N/A
Call for pricing
request for quote

* Manufacturer’s Suggested Retail Price

Product Specifications

System Features

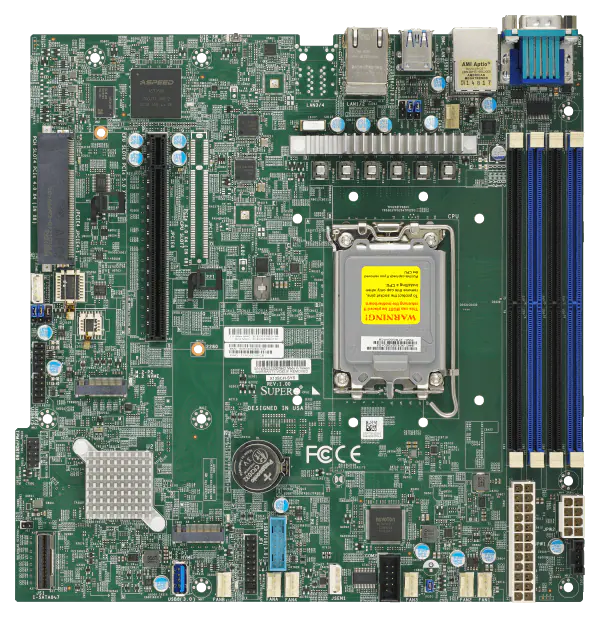

Super X13SCH-SYS
CPU
  • Single V0 (LGA-1700)
  • Intel® Xeon® 6300-series/E-2400/Pentium® G7400/G7400T processors
Core Count
  • Up to 8C/16T; Up to 24MB Cache
Note
  • Supports up to 95W TDP CPUs (Air Cooled)
Memory
    • Slot Count: 4 DIMM slots/2 Channels
    • Max Memory (2DPC): Up to 128GB 4400MT/s ECC DDR5 UDIMM

Memory Voltage
    • 1.1V


SATA
    • SATA (6Gbps) ; RAID 0/1/5/10 support


Chipset
    • Intel® C266

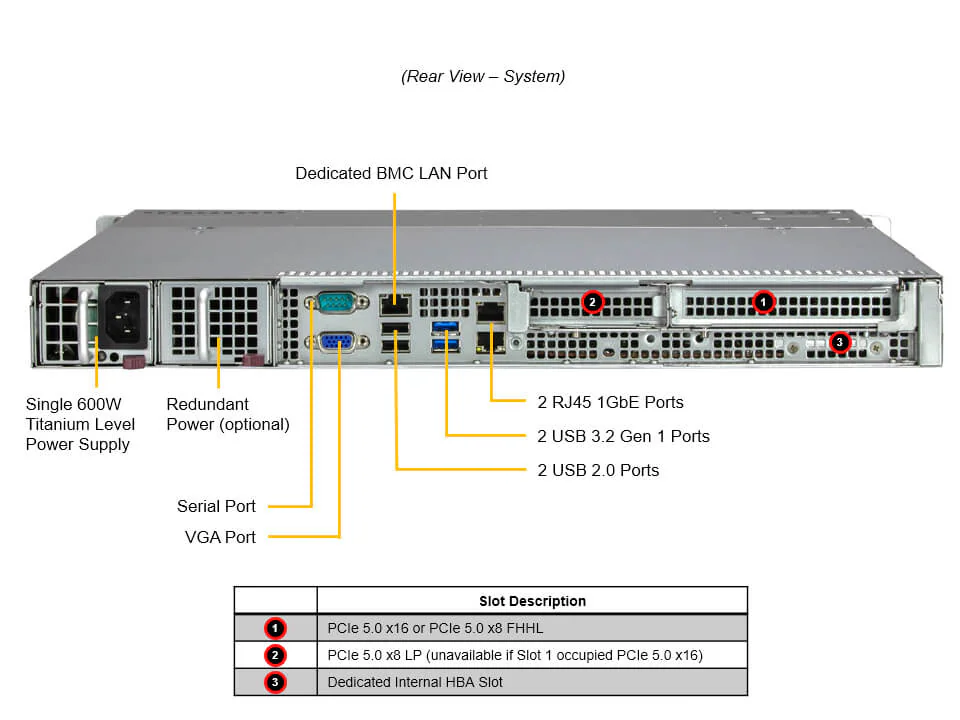

Network Connectivity
    • 2 RJ45 1GbE with Intel® I210

LAN
  • 2 RJ45 1 GbE LAN ports
  • 1 RJ45 1 GbE Dedicated BMC LAN port (IPMI shared on LAN port 1)
USB
  • 4 USB 2.0 ports(header)
  • 2 USB 3.2 Gen1 Type-A ports(rear)
  • 2 USB 2.0 Type-A ports(rear)
  • 2 USB 3.2 Gen1 ports(Header)
  • 1 USB 3.2 Gen1 Type-A port(Header)
Video
  • 1 VGA port
Serial
  • 1 COM port(Rear)
  • 1 COM port(Header)
TPM
  • 1 TPM header
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Software
Power configurations
  • ACPI/APM Power Management
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
  • 6 + 1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Form Factor
  • 1U Rackmount
Model
Height
  • 1.7″ (43 mm)
Width
  • 17.2″ (437 mm)
Depth
  • 19.98″ (507 mm)
Package
  • 8.5″ (H) x 24″ (W) x 29.5″ (D)
Weight
  • Gross Weight: 30.4 lbs (13.8 kg)
  • Net Weight: 17.6 lbs (8 kg)
Available Color
  • Black

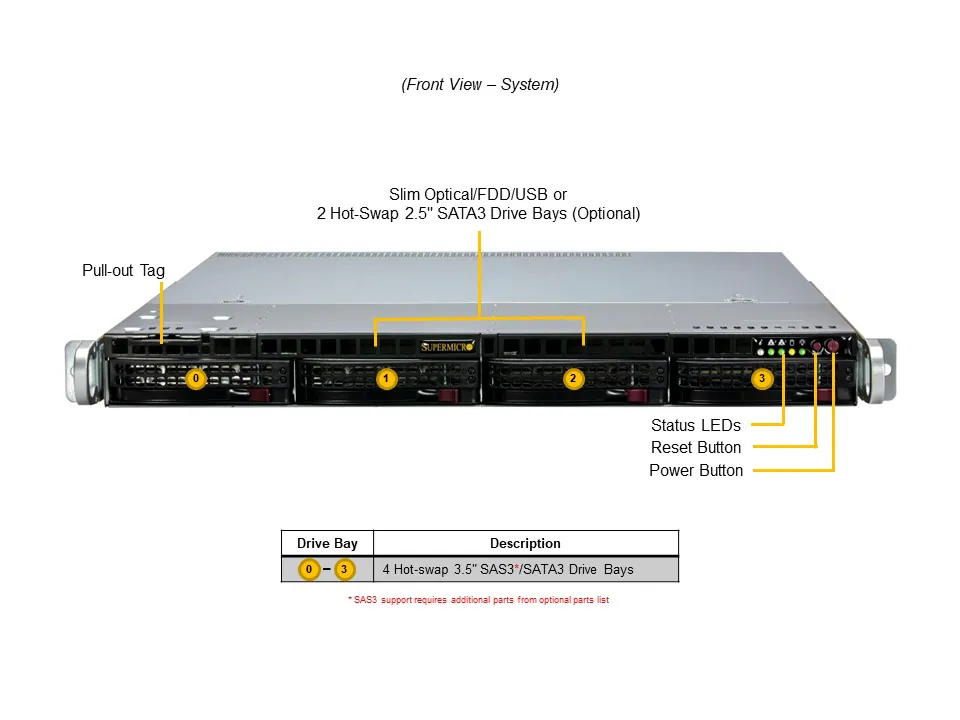

LED
  • Device Activity
  • LAN 1 Activity
  • LAN 2 Activity
  • Power status
  • System information
Buttons
  • Power On/Off
  • System Reset
PCI-Express (PCIe) Configuration
    • Default
      • 1 PCIe 5.0 x8 FHHL slot
      • 1 PCIe 5.0 x8 LP slot
    • Option A
      • 1 PCIe 5.0 x16 FHHL slot

Drive Bays Configuration
    • Default: Total 4 bays

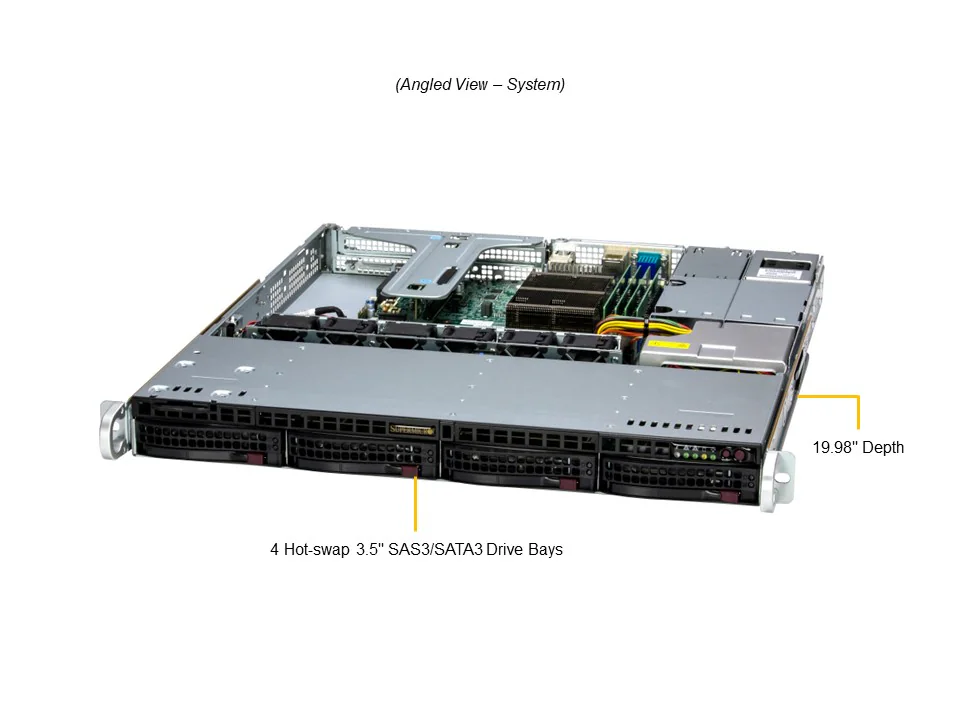

      • 4 front hot-swap 3.5″ SAS*/SATA drive bays
    • (*SAS support may require additional storage controller and/or cables)

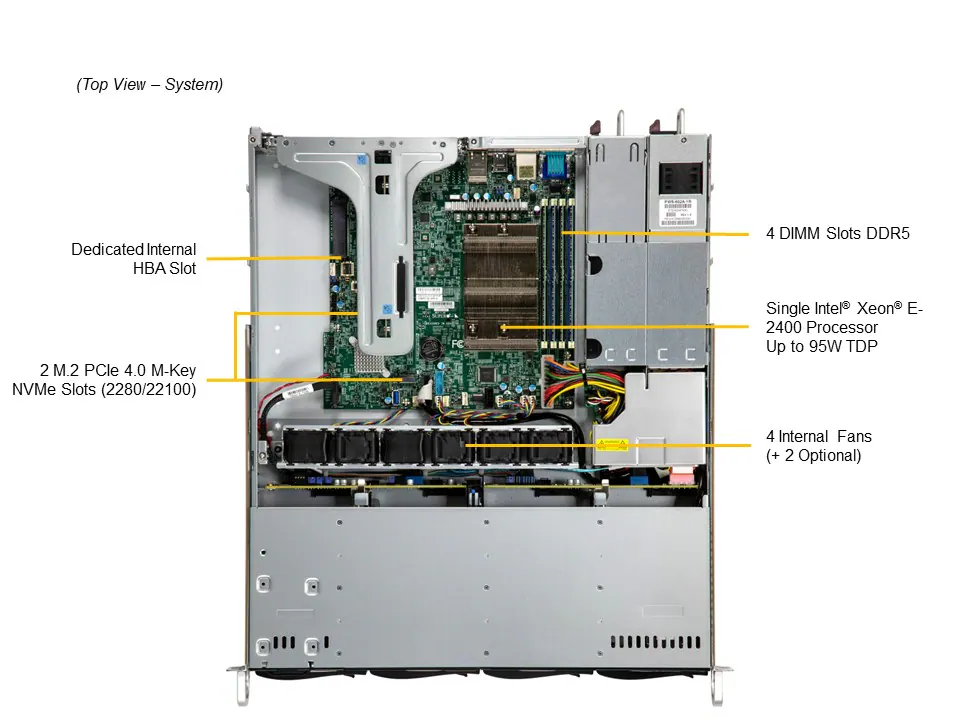

M.2
    • 2 M.2 PCIe 4.0 x4 NVMe slots (M-key 2280/22110)

Peripheral Bays
    • 2 2.5″ bays (optional)


Fans
  • Up to 2 AOC cooling Fan(s) (optional)
  • Up to 4 middle cooling PWM 40x40x28mm Fan(s)
Air Shroud
  • 1 Air Shroud
1x 600W Redundant Titanium Level (96%) power supply
Dimension (WxHxL)54.5 x 40.25 x 220 mm
Input600W: 100-127Vac / 50-60Hz
600W: 200-240Vdc / 50-60Hz
600W: 200-240Vac / 50-60Hz
+12VMax: 50A / Min: 0A (100Vac-127Vac)
Max: 50A / Min: 0A (200Vdc-240Vdc)
Max: 50A / Min: 0A (200Vac-240Vac)
5V SBMax: 4A / Min: 0A
Output TypeBackplanes (gold finger)
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
  • Operating Relative Humidity: 8% to 80% (non-condensing)
  • Non-operating Relative Humidity: 8% to 90% (non-condensing)
