UP SuperServer SYS-520P-WTR

(SYS-520P-WTR)
instock
  • Ready to Ship Today
Categories: Servers, SuperMicro, Rack Servers

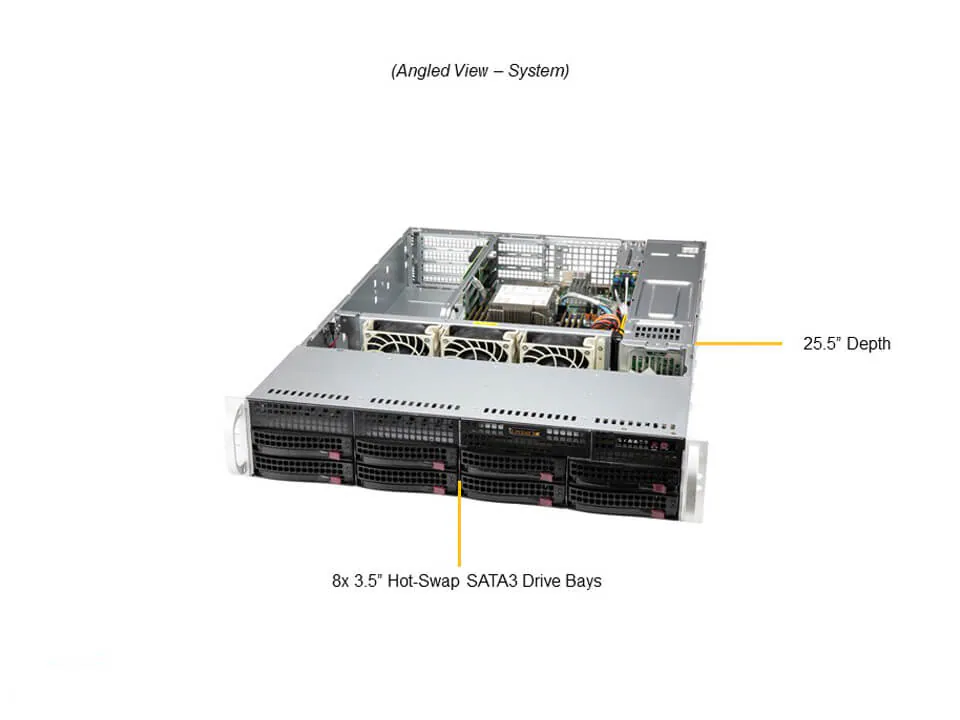

2U WIO with 8 hot-swap 3.5″ SAS/SATA bays and up to 5 PCIe 4.0 slots

Key Features

  1. Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors. Up to 270W TDP.
  2. 8 DIMMs; Supports 3DS DDR4-3200: RDIMM/LRDIMM/Intel® Intel® DCPMM
  3. 2 PCIe 4.0 x16 (FHFL) slots, 2 PCIe 4.0 x8 (LP) slots
  4. Intel® Ethernet Controller X550 2x 10GbE RJ45
  5. 8x hot-swap 3.5” SATA3 drive bays, SAS3 with additional SAS controller card, Optional 2x 2.5” Gen4 NVMe drives at rear; Onboard 1x NVMe/SATA M.2
  6. Redundant Platinum 650W Power Supply
MSRP*
N/A
Call for pricing
request for quote

* Manufacturer’s Suggested Retail Price

Product Specifications

System Features

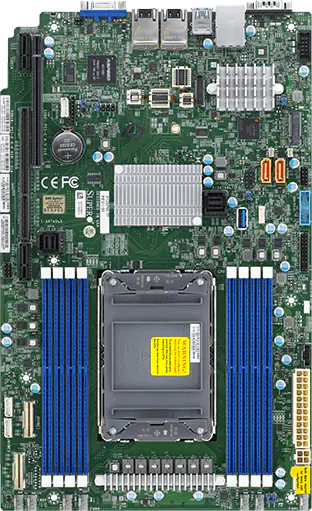

Super X12SPW-TF
CPU
  • Single Socket P+ (LGA-4189)
  • Intel® Xeon® Scalable Processors
Core Count
  • Up to 40C/80T; Up to 60MB Cache
Note
  • Supports up to 270W TDP CPUs (Air Cooled)
Max GPU Count
    • Up to 1 double-width or 2 single-width GPUs


Supported GPU
    • NVIDIA PCIe: RTX 2000 Ada, T400, T1000, RTX A4000, RTX A2000

CPU-GPU Interconnect
    • PCIe 4.0 x16 CPU-to-GPU Interconnect


Memory
    • Slot Count: 8 DIMM slots
    • Max Memory (1DPC): Up to 2TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
    • Supports Intel® Optane™ persistent memory 200 series

Memory Voltage
    • 1.2V


SATA
    • SATA (6Gbps) ; RAID 0/1/5/10 support


NVMe
    • NVMe; RAID 0/1 support(Intel® VROC RAID key required)

Chipset
    • Intel® C621A


Network Connectivity
    • 2 RJ45 10GbE with Intel® X550

LAN
  • 2 RJ45 10 GbE LAN ports (Intel® X550)
  • 1 RJ45 1 GbE Dedicated BMC LAN port (IPMI shared on LAN port 1)
USB
  • 2 USB 2.0 ports(header)
  • 2 USB 3.2 Gen1 Type-A ports(rear)
  • 2 USB 2.0 Type-A ports(rear)
  • 2 USB 3.2 Gen1 ports(Header)
  • 1 USB 3.2 Gen1 Type-A port
Video
  • 1 VGA 2 port
Serial
  • 1 COM port(Rear)
  • 1 COM port(Header)
DOM
  • 2 SuperDOM (Disk on Module) portswith built-in power
TPM
  • 1 TPM header
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Software
Power configurations
  • ACPI/APM Power Management
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
  • 7+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Form Factor
  • 2U Rackmount
Model
Height
  • 3.5″ (89 mm)
Width
  • 17.2″ (437 mm)
Depth
  • 25.5″ (647 mm)
Package
  • 11″ (H) x 26.5″ (W) x 34″ (D)
Weight
  • Gross Weight: 59 lbs (26.76 kg)
  • Net Weight: 34 lbs (15.42 kg)
Available Color
  • Black
LED
  • Device Activity
  • LAN 1 Activity
  • LAN 2 Activity
  • Power Failure LED
  • Power status
  • System information
Buttons
  • Power On/Off
  • System Reset
PCI-Express (PCIe) Configuration
    • Default
      • 2 PCIe 4.0 x16 FHFL slots
      • 2 PCIe 4.0 x8 LP slots
    • Option A*
      • 1 PCIe 4.0 x16 FHFL double-width slot
      • 2 PCIe 4.0 x8 FHFL slots
      • 2 PCIe 4.0 x8 LP slots
    • Option B*
      • 4 PCIe 4.0 x8 FHFL slots
      • 2 PCIe 4.0 x8 LP slots
    • (*Requires additional parts, please see the optional parts list for details. For more details on PCIe slot configuration options, please refer to the system callout images above.)

…

Drive Bays Configuration
    • Default: Total 8 bays
      • 8 front hot-swap 3.5″ SAS*/SATA drive bays
    • Option A: Total 10 bays
      • 8 front hot-swap 3.5″ SAS*/SATA drive bays
      • 2 rear hot-swap 2.5″ PCIe 4.0 NVMe*/SAS*/SATA drive bays
    • (*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details)

M.2
    • 1 M.2 PCIe 3.0 x4 NVMe/SATA slot (M-key 2280/22110; VROC required for RAID)

Fans
  • Up to 3 heavy duty PWM 80x80x38mm Fan(s)
Air Shroud
  • 1 Air Shroud
2x 650W Redundant (1 + 1) Platinum Level (94%) power supplies
Dimension (WxHxL)76 x 40 x 336 mm
Input600W: 100-127Vac / 50-60Hz
650W: 200-240Vac
650W: 200-240Vac / 50-60Hz
650W: 200-240Vdc / 50-60Hz (for CCC only)
+12VMax: 50A / Min: 0A (100Vac-127Vac)
Max: 54.16A / Min: 0A (200Vac-240Vac)
Max: 54.16A / Min: 0A (200Vdc-240Vdc) (for CCC only)
Max: 54A / Min: 0.5A
5V SBMax: 4A / Min: 0A
Output TypeBackplanes (gold finger)
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
