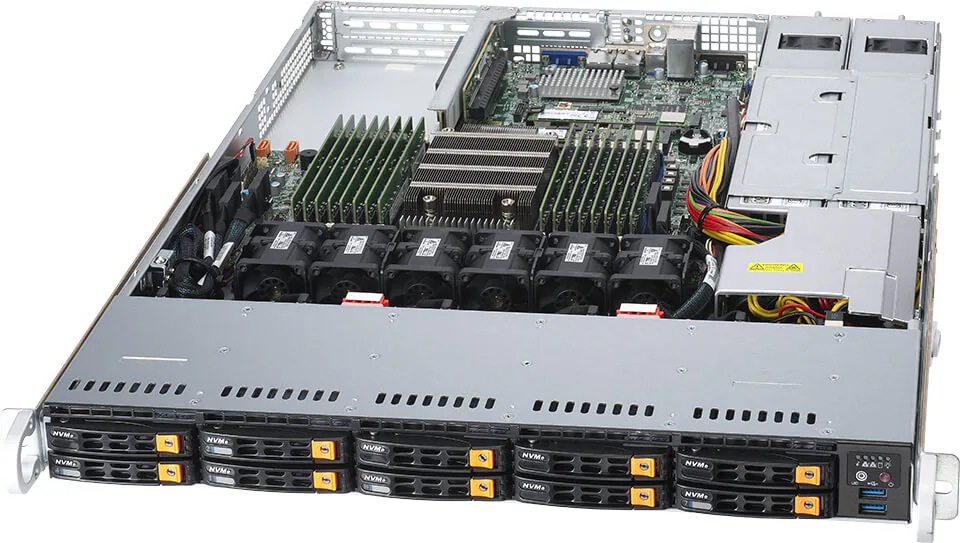

WIO A+ Server AS -1114S-WN10RT

(AS -1114S-WN10RT)

instock

Single AMD EPYC™ 7003/7002 Series Processor
(The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer) 2.16 DIMMs; up to 4TB 3DS ECC
16 DIMMs; up to 4TB 3DS ECC
DDR4-3200MHz RDIMM/LRDIMM

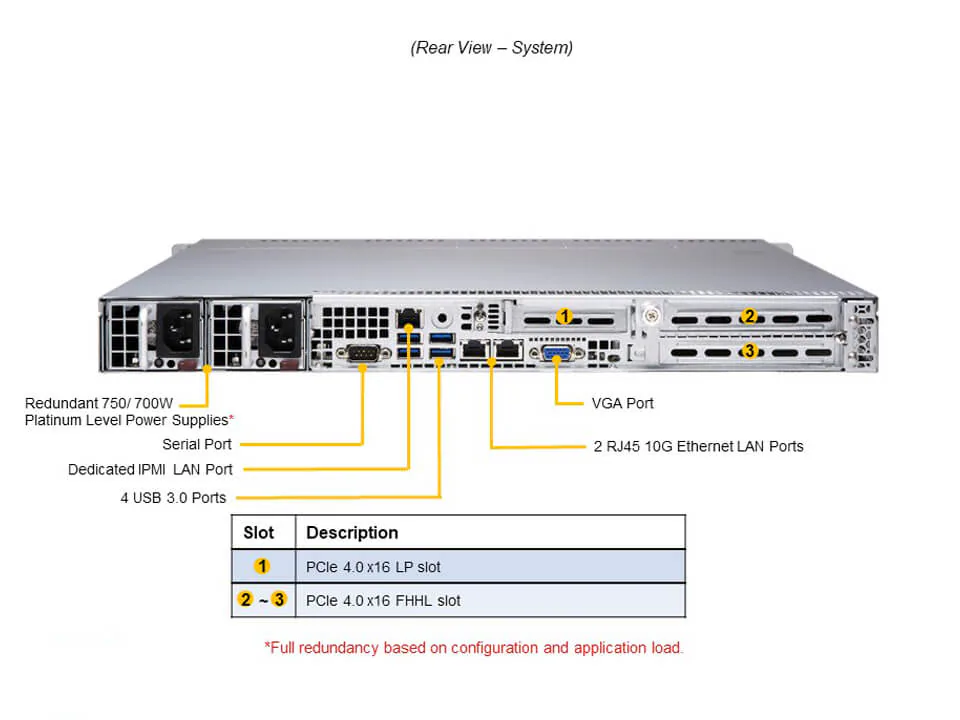

2 PCIe 4.0 x16 (FHHL) slots
1 PCIe 4.0 x16 (LP) slot
2x10GBase-T LAN ports via Broadcom BCM57416 Controller

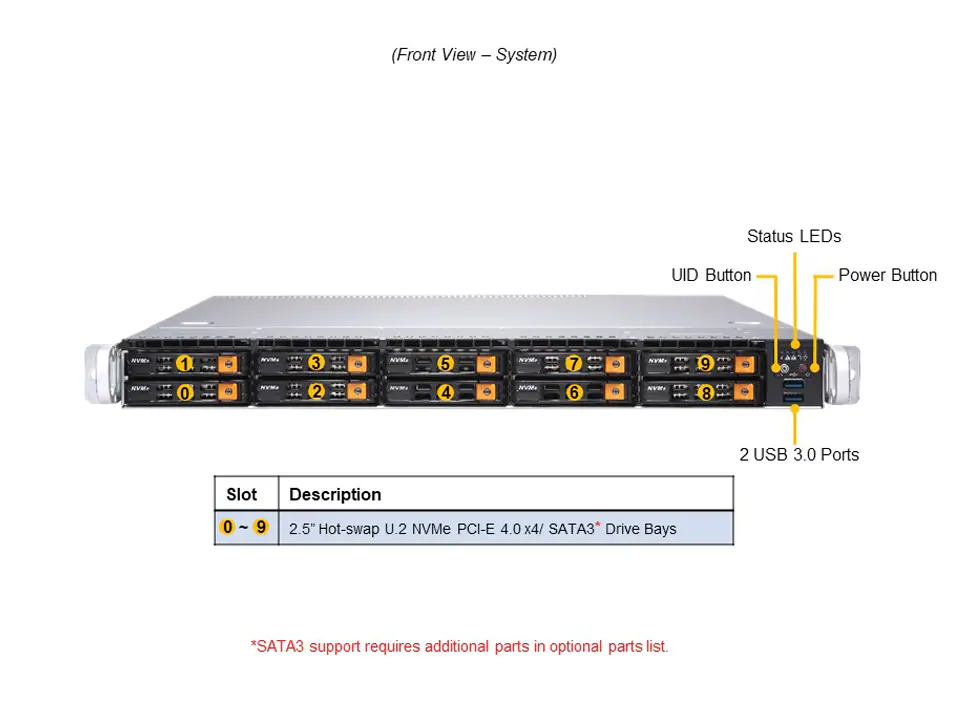

10 Hot-swap 2.5″ NVMe/SATA fully hybrid drive support (optional parts for SAS drive support)

MSRP^*

N/A

* Manufacturer’s Suggested Retail Price

Product Specifications

CPU	Single SP3 AMD EPYC™ 7002/7003 Series Processors
Core Count	Up to 64C/128T
Note	Supports up to 280W TDP CPUs (Air Cooled)

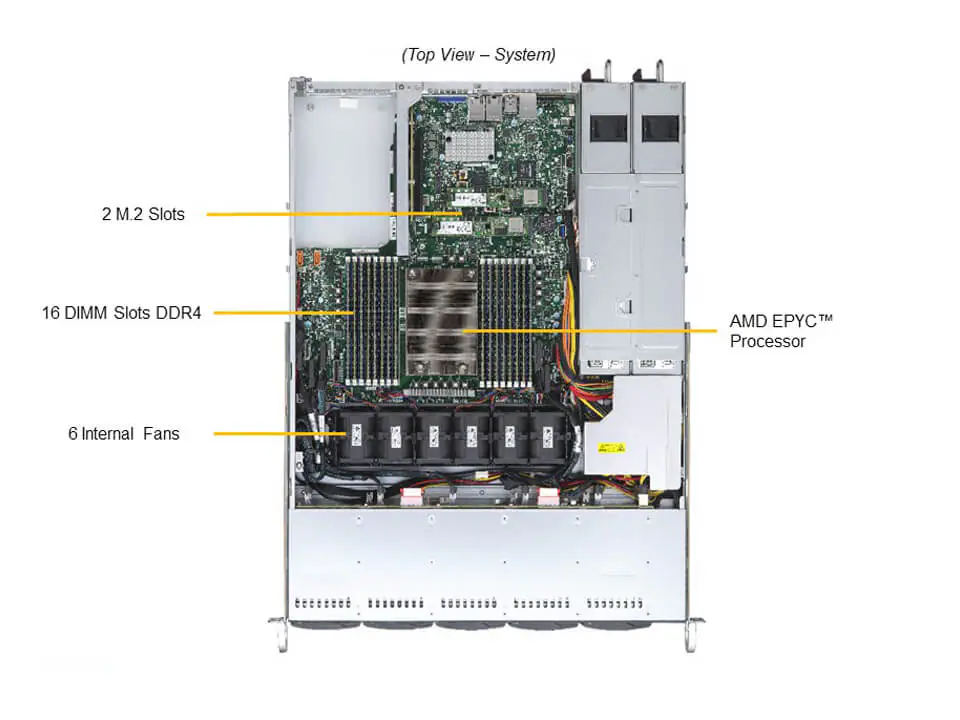

Memory

- Slot Count: 16 DIMM slots
- Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMM

Memory Voltage

SATA	SATA (6Gbps)
Chipset	AMD System on Chip
Network Connectivity	2 RJ45 10GBASE-T with Broadcom® BCM57416 View AOC Options
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

LAN	1 RJ45 1 GbE Dedicated BMC LAN port 2 RJ45 10 GBASE-T LAN ports
USB	2 USB 3.0 ports(front) 4 USB 3.0 ports(rear) 1 USB 3.0 port(Rear)
Video	1 VGA port
DOM	2 SuperDOM (Disk on Module) ports

BIOS Type

Software	Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) KVM with dedicated LAN IPMI 2.0 Watch Dog
Power configurations	ACPI/APM Power Management

Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery System Lockdown

CPU	Monitors for CPU Cores, Chipset Voltages, Memory 4+1 Phase-switching voltage regulator
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors

Form Factor	1U Rackmount
Model	CSE-116TS-R706WBP5-N10

Height	1.7″ (43 mm)
Width	17.2″ (437 mm)
Depth	23.5″ (597 mm)
Package	8″ (H) x 24″ (W) x 32″ (D)
Weight	Gross Weight: 39 lbs (17.69 kg) Net Weight: 25 lbs (11.34 kg)
Available Color	Black

LED	Device Activity LAN 1 Activity LAN 2 Activity Power status System information
Buttons	Power On/Off UID button

PCI-Express (PCIe) Configuration

M.2

Drive Bays Configuration

Fans	Up to 6 heavy duty fans with optimal fan speed control

2x 750W Redundant (1 + 1) Platinum Level (94%) power supplies

Dimension (WxHxL)	54.5 x 40.25 x 320 mm
Input	700W: 100-140Vac / 50-60Hz 750W: 100-240Vac 750W: 200-240Vac / 50-60Hz
+12V	Max: 58A / Min: 0.5A (100Vac-140Vac) Max: 62A / Min: 0.5A (200Vac-240Vac) Max: 62A / Min: 0.5A
5V SB	Max: 3A / Min: 0A
Output Type	Backplanes (gold finger)
Certification	Platinum Level [ Test Report ]

ROHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (Non-Condensing) Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
