WIO A+ Server AS -1114S-WTRT

(AS -1114S-WTRT)

instock

Categories: Servers, SuperMicro, Rack Servers

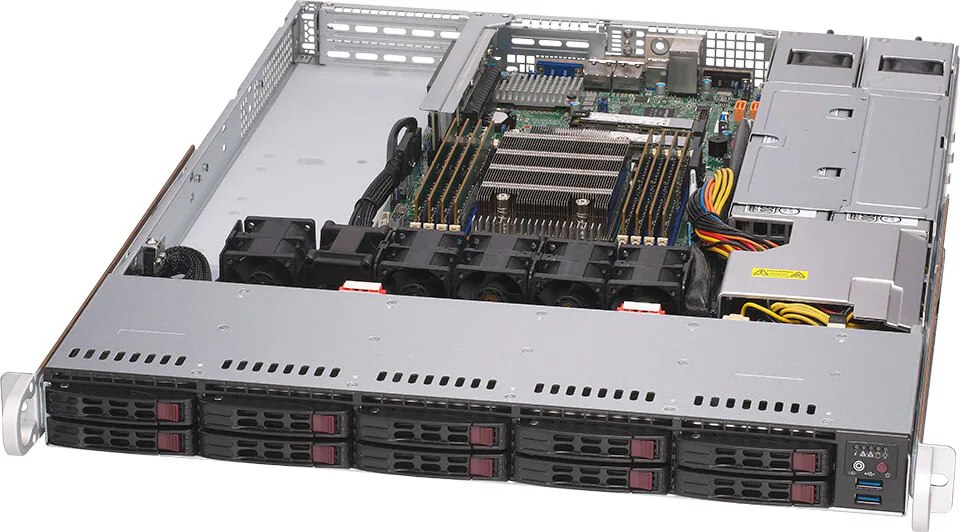

1U WIO with 10 hot-swap SATA bays and dual 10GbE

Key Features

Single AMD EPYC™ 7003/7002 Series Processor
(The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
8 DIMMs; up to 2TB 3DS ECC
DDR4-3200MHz RDIMM/LRDIMM
2 PCIe 4.0 x16 FHFL slots
1 PCIe 4.0 x16 LP slot

MSRP^*

N/A

* Manufacturer’s Suggested Retail Price

Product Specifications

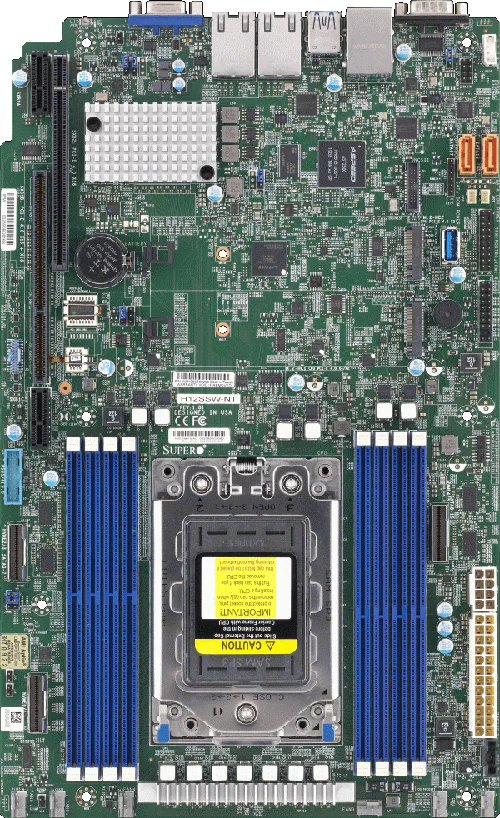

Super H12SSW-NT

CPU	Single SP3 AMD EPYC™ 7002/7003 Series Processors
Note	Supports up to 280W TDP CPUs (Air Cooled)

Max GPU Count

- Up to 2 double-width or 2 single-width GPUs

Supported GPU

- NVIDIA PCIe: T4, A2

- View GPU Options

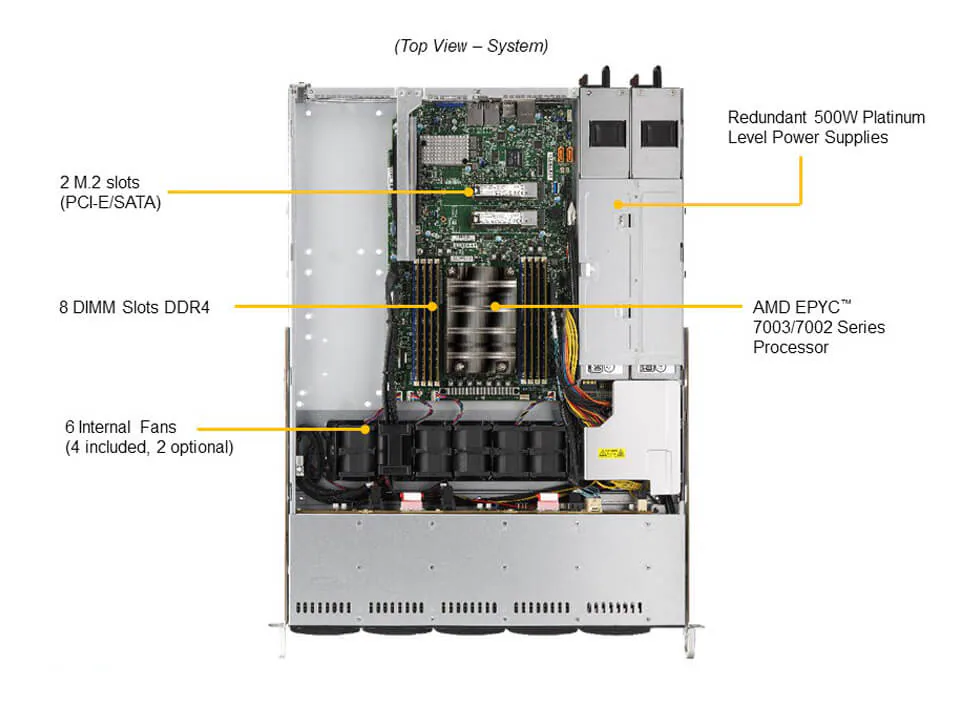

Memory

- Slot Count: 8 DIMM slots
- Max Memory (1DPC): Up to 2TB 3200MT/s ECC DDR4 RDIMM/LRDIMM

- View Memory Options

Memory Voltage

- 1.2V

Chipset

- System on Chip

Network Connectivity

- 2 RJ45 10GbE

- View AOC Options

IPMI

- Support for Intelligent Platform Management Interface v.2.0
- IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

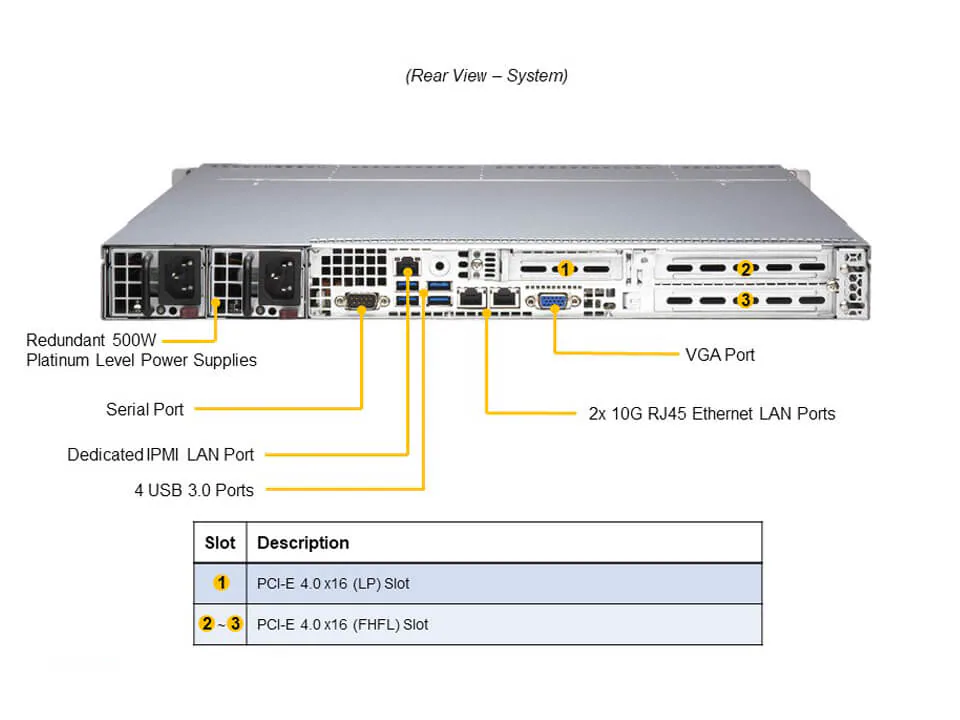

LAN	1 RJ45 1 GbE Dedicated BMC LAN port 2 RJ45 10 GBASE-T LAN ports
USB	7 USB 3.0 ports
Video	1 VGA port
DOM	2 SuperDOM (Disk on Module) ports

BIOS Type

AMI 32MB SPI FLASH ROM

Software	Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) KVM with dedicated LAN IPMI 2.0 Watch Dog
Power configurations	ACPI/APM Power Management

Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery System Lockdown

CPU	Monitors for CPU Cores, Chipset Voltages, Memory 4+1 Phase-switching voltage regulator
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors

Form Factor	1U Rackmount
Model	CSE-116TS-R504WBP

Height	1.7″ (43 mm)
Width	17.2″ (437 mm)

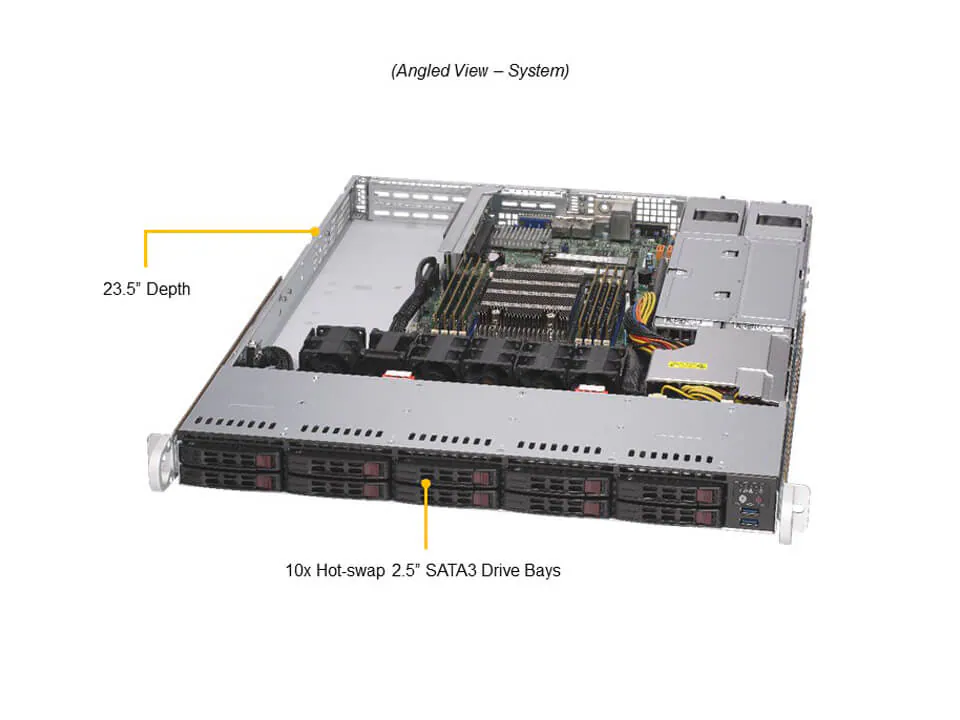

Depth	23.5″ (597 mm)
Package	8″ (H) x 24″ (W) x 32″ (D)
Weight	Gross Weight: 46 lbs (20.9 kg) Net Weight: 25 lbs (11.34 kg)
Available Color	Black

PCI-Express (PCIe) Configuration

- Default
  - 2 PCIe 4.0 x16 FHFL slots
  - 1 PCIe 4.0 x16 LP slot

- View AOC Options

M.2

- 2 M.2 PCIe 3.0 x2 NVMe/SATA slots (M-key)

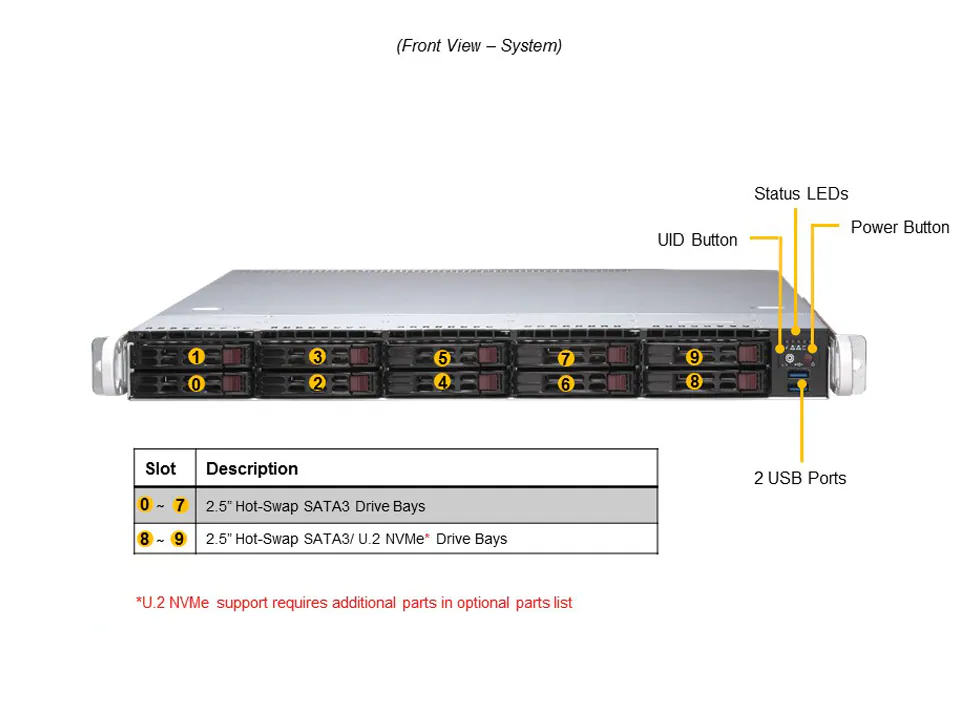

Drive Bays Configuration

- Default: Total 10 bays
  - 10 front hot-swap 2.5″ SATA drive bays
- Option A: Total 10 bays
  - 8 front hot-swap 2.5″ SATA drive bays
  - 2 front hot-swap 2.5″ PCIe 3.0 NVMe* drive bays
- (*NVMe support may require additional storage controller and/or cables, please see the optional parts list for details)

- View NVMe Options
- View Drive Options

Fans	Up to 6 heavy duty fans with optimal fan speed control

2x 500W Redundant (1 + 1) Platinum Level (94%) power supplies

Dimension (WxHxL)	54.5 x 40.25 x 320 mm
Input	500W: 100-240Vac / 50-60Hz
+12V	Max: 42A / Min: 0.5A (100Vac-240Vac) Max: 42A / Min: 0.5A
5V SB	Max: 3A / Min: 0A Max: 4A / Min: 0A
Output Type	Backplanes (gold finger)
Certification	Platinum Level [ Test Report ]

ROHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (Non-Condensing) Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
