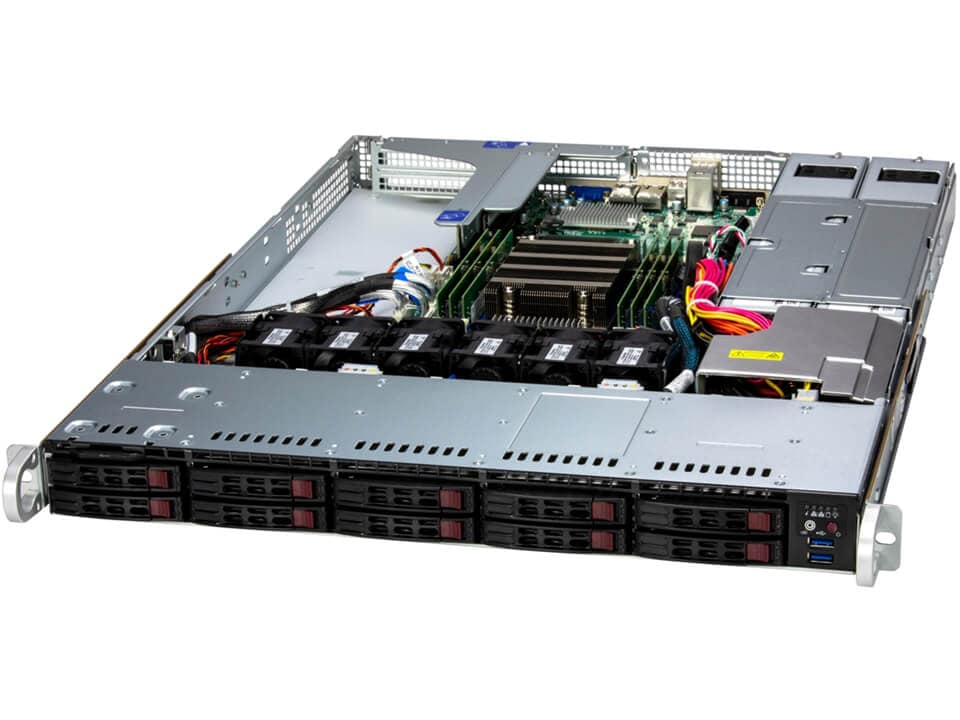

WIO A+ Server AS -1115SV-WTNRT

(AS -1115SV-WTNRT)
instock
  • Ready to Ship Today
Categories: Servers, SuperMicro, Rack Servers

1U UP WIO with 10 hot-swap 2.5″ NVMe/SAS/SATA (6 NVMe hybrid) bays and 3 PCIe 5.0 x16 slots

Key Features

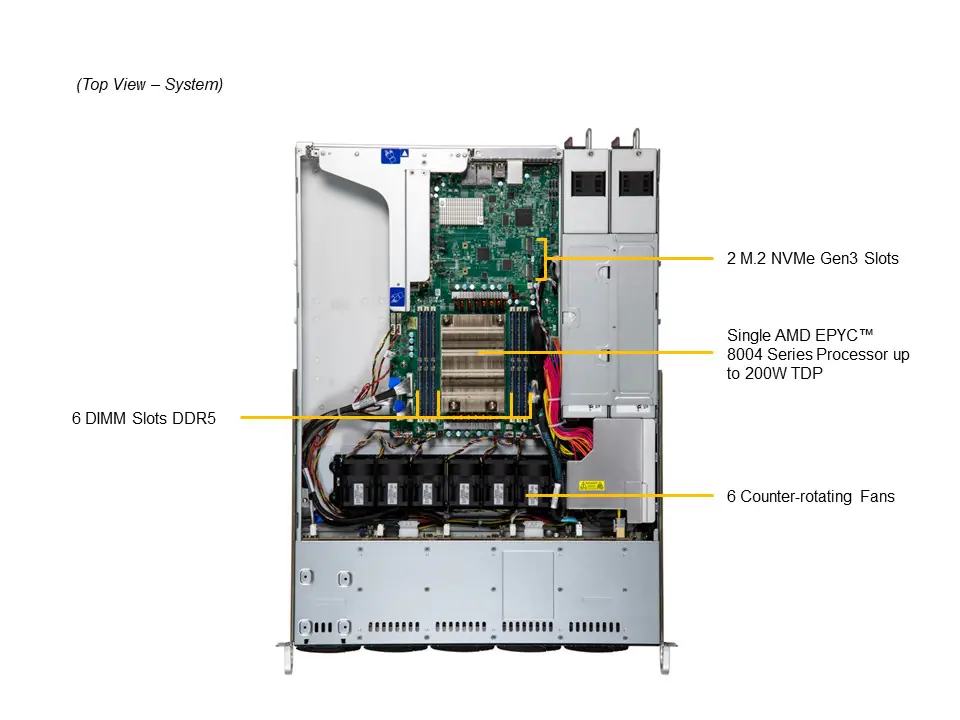

  1. Single Socket AMD EPYC™ 8004 Series Processor
  2. 6 DIMM slots, DDR5-4800MHz memory, support up to 768GB
  3. 2 PCIe 5.0 x16 FHFL;
    1 PCIe 5.0 x16 LP
  4. Single dedicated IPMI LAN, dual 10GbE BaseT LAN ports via Broadcom BCM57416 Controller
  5. 10 Hot-swap 2.5″ SATA(default)/NVMe/SAS drive bays or 6 SATA/NVMe hybrid + 4 SATA drive bays (optional cables or SAS controller card for NVMe and SAS drive bays)
  6. Dual 860W Redundant Titanium Level power supplies
    (Power supply full redundancy based on configuration and application load)
MSRP*
N/A
Call for pricing
request for quote

* Manufacturer’s Suggested Retail Price

Product Specifications

System Features
Super H13SVW-NT
CPU
  • Single processor(s)
  • AMD EPYC™ 8004 Series Processor
Core Count
  • Up to 64C/128T
Note
  • Supports up to 225W TDP CPUs (Air Cooled)
Max GPU Count
    • Up to 1 double-width or 2 single-width GPUs


Supported GPU
    • NVIDIA PCIe: L40, L4, A2

Memory
    • Slot Count: 6 DIMM slots
    • Max Memory (1DPC): Up to 768GB 4800MT/s ECC DDR5 RDIMM

Memory Voltage
    • 1.1V


Chipset
    • System on Chip


Network Connectivity
    • 2 RJ45 10GBASE-T with Broadcom® BCM57416

LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
  • 2 RJ45 10 GBASE-T LAN ports
USB
  • 2 ports(front)
  • 4 ports(rear)
Video
  • 1 VGA port
Serial
  • 1 COM port(Rear)
TPM
  • 1 TPM Onboard/port 80
BIOS Type
  • AMI 32MB SPI Flash EEPROM
BIOS Features
  • ACPI 6.4
  • Plug and Play (PnP)
  • SMBIOS 3.5 or later
  • UEFI 2.8
  • USB Keyboard support
Software
Power configurations
  • 1U redundant 800/860W Titanium AC power supply
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Form Factor
  • 1U
Model
Height
  • 1.7″ (43 mm)
Width
  • 17.2″ (437 mm)
Depth
  • 23.5″ (597 mm)
Package
  • 7.75″ (H) x 23.5″ (W) x 31.5″ (D)
Weight
  • Gross Weight: 33.5 lbs (15.2 kg)
  • Net Weight: 21 lbs (9.53 kg)
Available Color
  • Black
LED
  • Fan Fail/System Over Heat LED
  • HDD activity LED
  • Network Activity LEDs
  • Power status LED
Buttons
  • Power On/Off button
  • Unit Identification (UID) button

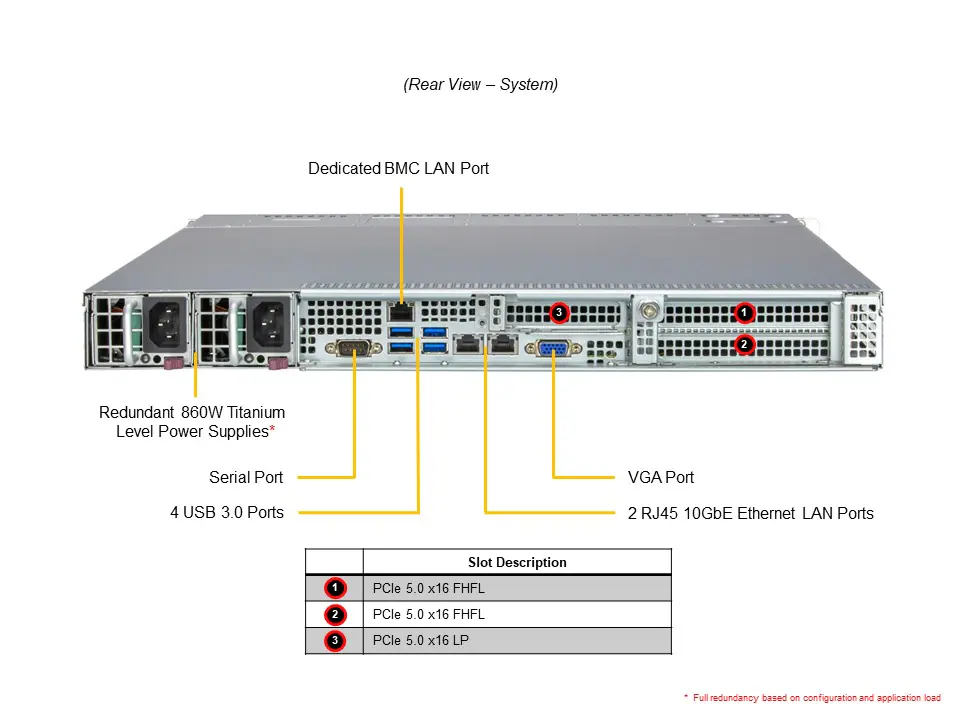

PCI-Express (PCIe) Configuration
    • Default
      • 2 PCIe 5.0 x16 FHFL slots
      • 1 PCIe 5.0 x16 LP slot

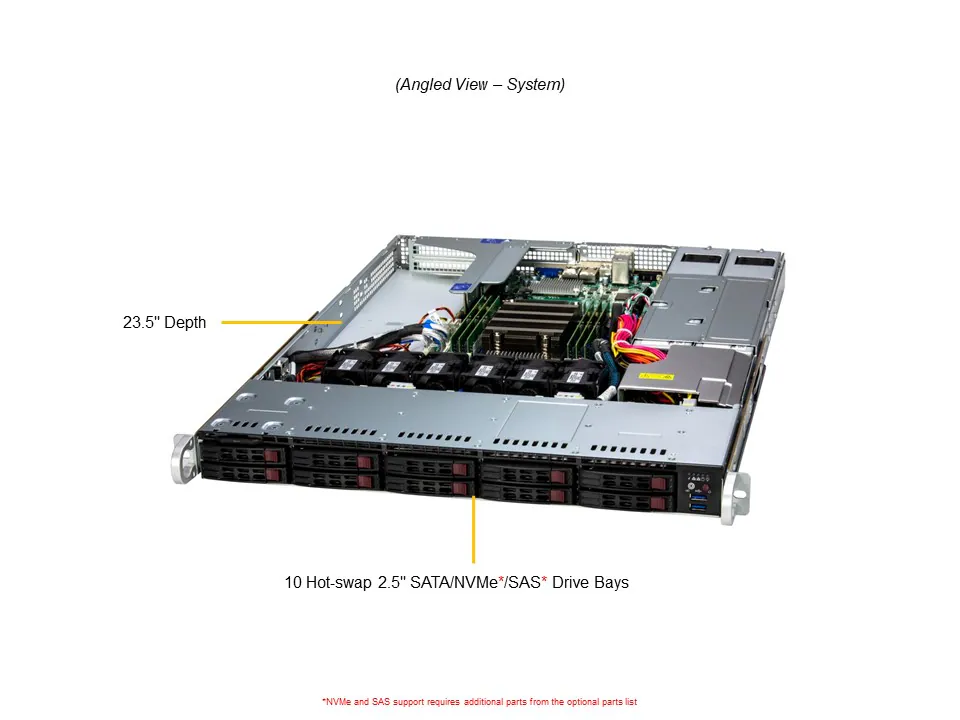

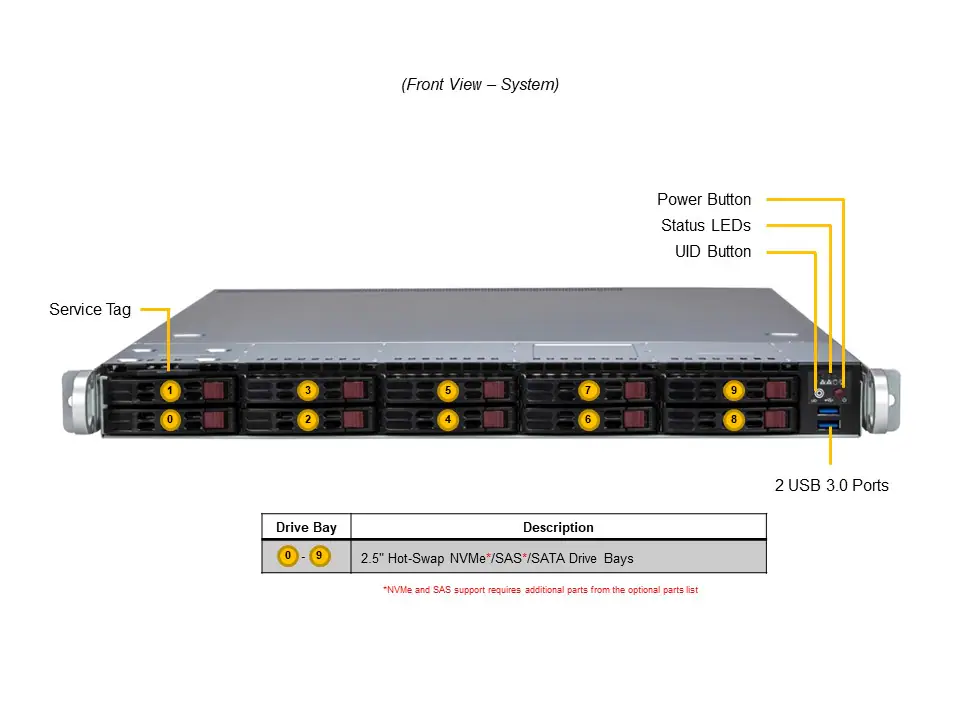

Drive Bays Configuration
    • Default: Total 10 bays
      • 10 front hot-swap 2.5″ NVMe*/SAS*/SATA drive bays
    • (*NVMe/SAS support may require additional storage controller and/or cables)

M.2
    • 2 M.2 PCIe 3.0 x4 NVMe slots (M-key 2280/22110)

Fans
  • Up to 6 Heavy duty counter-rotating 40x40x56mm Fan(s)
Air Shroud
  • 1 Air Shroud
2x 860W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL)54.5 x 40.25 x 322 mm
Input800W: 100-127Vac / 50-60Hz
860W: 200-240Vac / 50-60Hz
860W: 240Vdc / 50-60Hz
+12VMax: 66.67A / Min: 0A (100Vac-127Vac)
Max: 71.67A / Min: 0A (200Vac-240Vac)
Max: 71.67A / Min: 0A (Vdc-240Vdc)
5V SBMax: 4A / Min: 0A
Output TypeBackplanes (gold finger)
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
  • Operating Relative Humidity: 8% to 80% (non-condensing)
  • Non-operating Relative Humidity: 8% to 90% (non-condensing)

Related Products

AS -1015A-MT_main
SuperMicro Rack Servers
Mainstream A+ Server AS -1015A-MT
AS -1015A-MT
MSRP*
N/A
Call for Pricing
SYS-511R-W_main
SuperMicro Rack Servers
UP SuperServer SYS-511R-W
SYS-511R-W
MSRP*
N/A
Call for Pricing
SYS-511R-M_main
SuperMicro Rack Servers
UP SuperServer SYS-511R-M
SYS-511R-M
MSRP*
N/A
Call for Pricing
SYS-111R-M_main
SuperMicro Rack Servers
UP SuperServer SYS-111R-M
SYS-111R-M
MSRP*
N/A
Call for Pricing
AS -2015SV-WTNRT_main
SuperMicro Rack Servers
WIO A+ Server AS -2015SV-WTNRT
AS -2015SV-WTNRT
MSRP*
N/A
Call for Pricing
AS -1015SV-WTNRT_main
SuperMicro Rack Servers
WIO A+ Server AS -1015SV-WTNRT
AS -1015SV-WTNRT
MSRP*
N/A
Call for Pricing
AS -2015CS-TNR_main
SuperMicro Rack Servers
CloudDC A+ Server AS -2015CS-TNR
AS -2015CS-TNR
MSRP*
N/A
Call for Pricing
AS -1115CS-TNR_main
SuperMicro Rack Servers
CloudDC A+ Server AS -1115CS-TNR
AS -1115CS-TNR
MSRP*
N/A
Call for Pricing
AS -1015CS-TNR_main
SuperMicro Rack Servers
CloudDC A+ Server AS -1015CS-TNR
AS -1015CS-TNR
MSRP*
N/A
Call for Pricing
AS -2115HS-TNR_main
SuperMicro Rack Servers
Hyper A+ Server AS -2115HS-TNR
AS -2115HS-TNR
MSRP*
N/A
Call for Pricing
AS -2015HS-TNR_main
SuperMicro Rack Servers
Hyper A+ Server AS -2015HS-TNR
AS -2015HS-TNR
MSRP*
N/A
Call for Pricing
AS -1115HS-TNR_main
SuperMicro Rack Servers
Hyper A+ Server AS -1115HS-TNR
AS -1115HS-TNR
MSRP*
N/A
Call for Pricing
SYS-522B-WR_main
SuperMicro Rack Servers
WIO SuperServer SYS-522B-WR
SYS-522B-WR
MSRP*
N/A
Call for Pricing
SYS-512B-WR_main
SuperMicro Rack Servers
WIO SuperServer SYS-512B-WR
SYS-512B-WR
MSRP*
N/A
Call for Pricing
SYS-112B-WR_main
SuperMicro Rack Servers
WIO SuperServer SYS-112B-WR
SYS-112B-WR
MSRP*
N/A
Call for Pricing

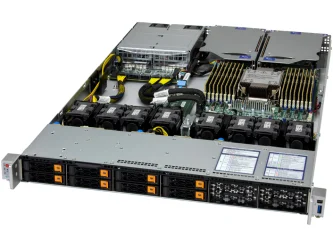

SYS-112C-TN_main
