WIO A+ Server AS -2015SV-WTNRT

(AS -2015SV-WTNRT)
instock
  • Ready to Ship Today
Categories: Servers, SuperMicro, Rack Servers

2U UP WIO with 12 hot-swap 3.5″ NVMe/SAS/SATA (6 NVMe hybrid) bays and 2 PCIe 5.0 x16 FHFL slots + 2 PCIe 5.0 x8 LP slots

Key Features

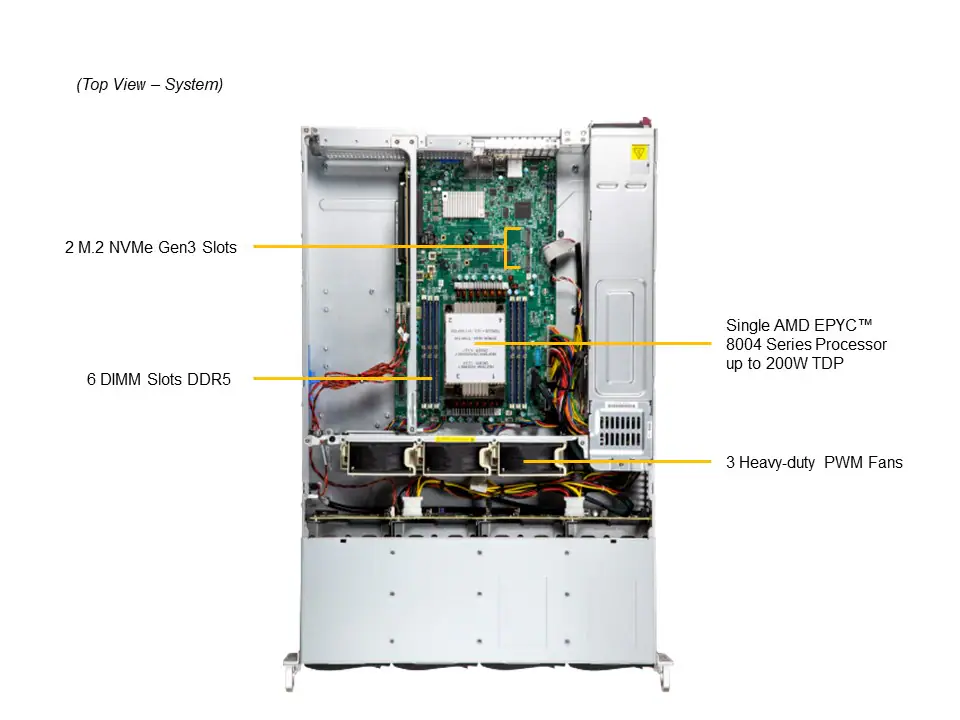

  1. Single Socket AMD EPYC™ 8004 Series Processor
  2. 6 DIMM slots, DDR5-4800MHz memory, support up to 768GB
  3. 2 PCIe 5.0 x16 FHFL;
    2 PCIe 5.0 x 8 LP, Supports up to 1 double-width or 2 single-width GPU(s)
  4. Single dedicated IPMI LAN, dual 10GbE BaseT LAN ports via Broadcom BCM57416 Controller

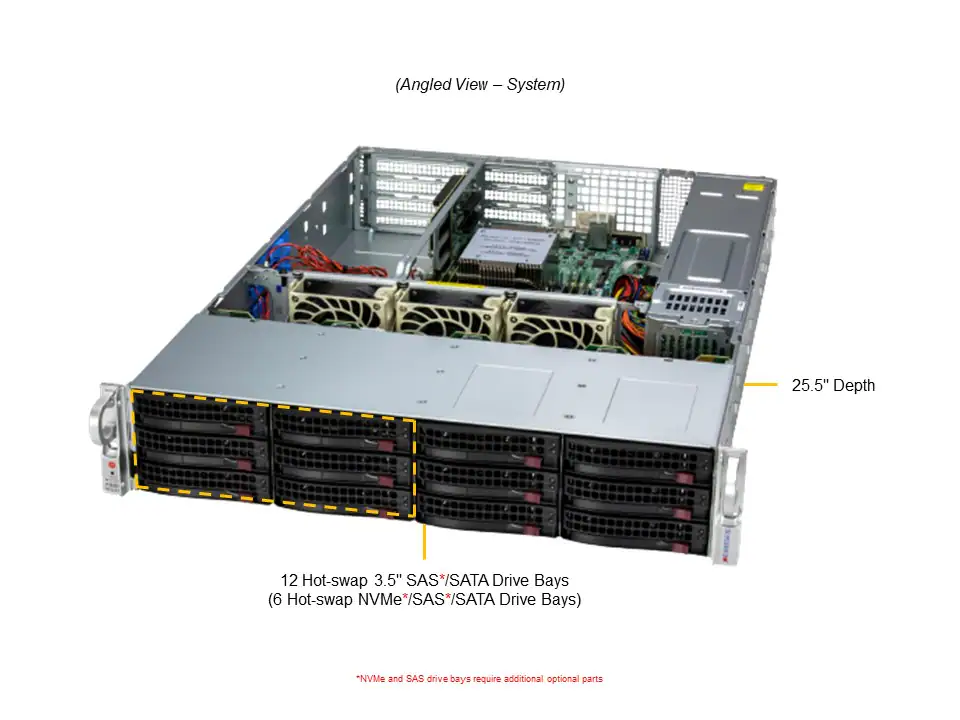

  5. 12 hot-swap 3.5″/2.5″ SATA(default)/SAS drive bays or 6 SATA/NVMe hybrid + 6 SATA drive bays (optional cables or SAS controller card for NVMe and SAS drive bays)
  6. Dual 800W Redundant Titanium Level power supplies
    (Power supply full redundancy based on configuration and application load)
MSRP*
N/A
Call for pricing
request for quote

* Manufacturer’s Suggested Retail Price

Product Specifications

System Features

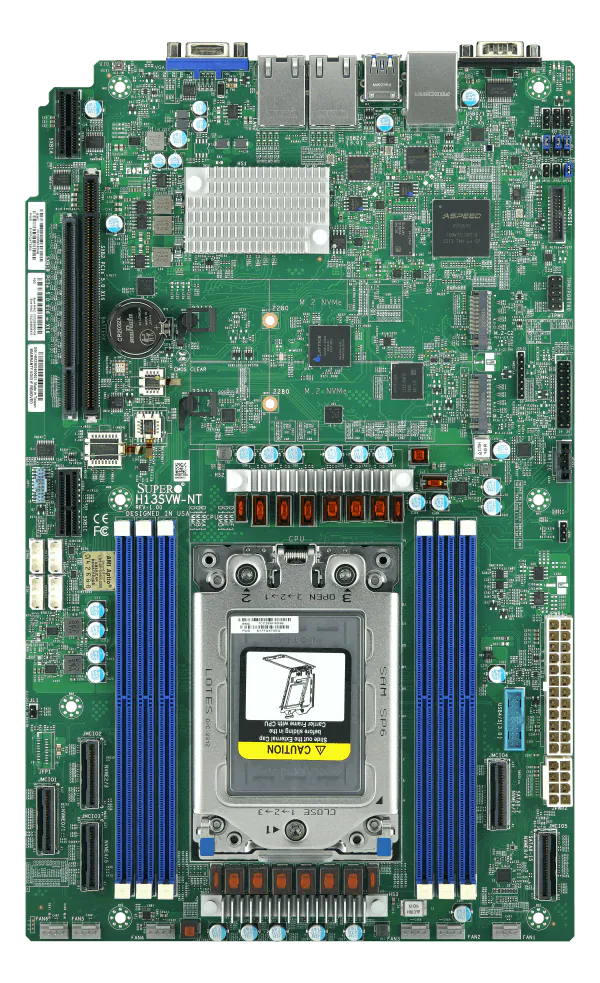

Super H13SVW-NT
CPU
  • Single processor(s)
  • AMD EPYC™ 8004 Series Processor
Core Count
  • Up to 64C/128T
Note
  • Supports up to 225W TDP CPUs (Air Cooled)
Max GPU Count
    • Up to 1 double-width or 2 single-width GPUs


Supported GPU
    • NVIDIA PCIe: T400, RTX 4000 Ada Generation

Memory
    • Slot Count: 6 DIMM slots
    • Max Memory (1DPC): Up to 768GB 4800MT/s ECC DDR5 RDIMM

Memory Voltage
    • 1.1V


Chipset
    • System on Chip


Network Connectivity
    • 2 RJ45 10GBASE-T with Broadcom® BCM57416

LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
  • 2 RJ45 10 GBASE-T LAN ports
USB
  • 4 ports(rear)
Video
  • 1 VGA port
Serial
  • 1 COM port(Rear)
TPM
  • 1 TPM Onboard/port 80
BIOS Type
  • AMI 32MB SPI Flash EEPROM
BIOS Features
  • ACPI 6.4
  • Plug and Play (PnP)
  • SMBIOS 3.5 or later
  • UEFI 2.8
  • USB Keyboard support
Software
Power configurations
  • 1U redundant 800W Titanium AC Power Supply
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Form Factor
  • 2U Rackmount
Model
Height
  • 3.5″ (89 mm)
Width
  • 17.2″ (437 mm)
Depth
  • 25.6″ (650 mm)
Package
  • 11.5″ (H) x 26.5″ (W) x 34″ (D)
Weight
  • Gross Weight: 58 lbs (26.3 kg)
  • Net Weight: 34 lbs (15.4 kg)
Available Color
  • Black
LED
  • Device Activity
  • LAN 1 Activity
  • LAN 2 Activity
  • Power Failure LED
  • Power status
  • System information
Buttons
  • Power On/Off
  • System Reset
PCI-Express (PCIe) Configuration
    • Default
      • 2 PCIe 5.0 x16 FHFL slots
      • 2 PCIe 5.0 x8 LP slots

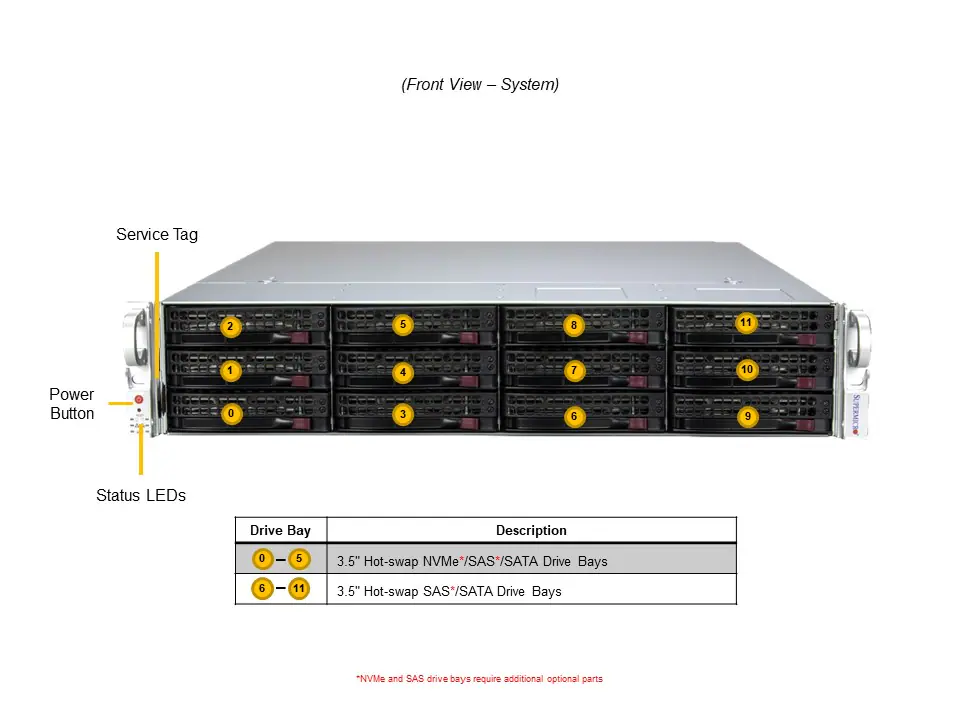

Drive Bays Configuration
    • Default: Total 12 bays
      • 12 front hot-swap 3.5″ SATA drive bays
    • Option A: Total 12 bays
      • 6 front hot-swap 3.5″/2.5″ PCIe 5.0 NVMe*/SATA drive bays
      • 6 front hot-swap 3.5″/2.5″ SATA drive bays
    • Option B: Total 12 bays
      • 12 front hot-swap 2.5″ SAS* drive bays
    • (*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details)

M.2
    • 2 M.2 PCIe 3.0 x4 NVMe slots (M-key 2280/22110)

Fans
  • Up to 3 Heavy duty PWM 80x80x38mm Fan(s)
Air Shroud
  • 1 Air Shroud
2x 800W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL)76 x 40 x 336 mm
Input800W: 100-240Vac / 50-60Hz
800W: 200-240Vdc / 50-60Hz
+12VMax: 66A / Min: 0A (100Vac-240Vac)
Max: 66A / Min: 0A (200Vdc-240Vdc)
5V SBMax: 4A / Min: 0A
Output TypeBackplanes (gold finger)
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
  • Operating Relative Humidity: 8% to 80% (non-condensing)
  • Non-operating Relative Humidity: 8% to 90% (non-condensing)
