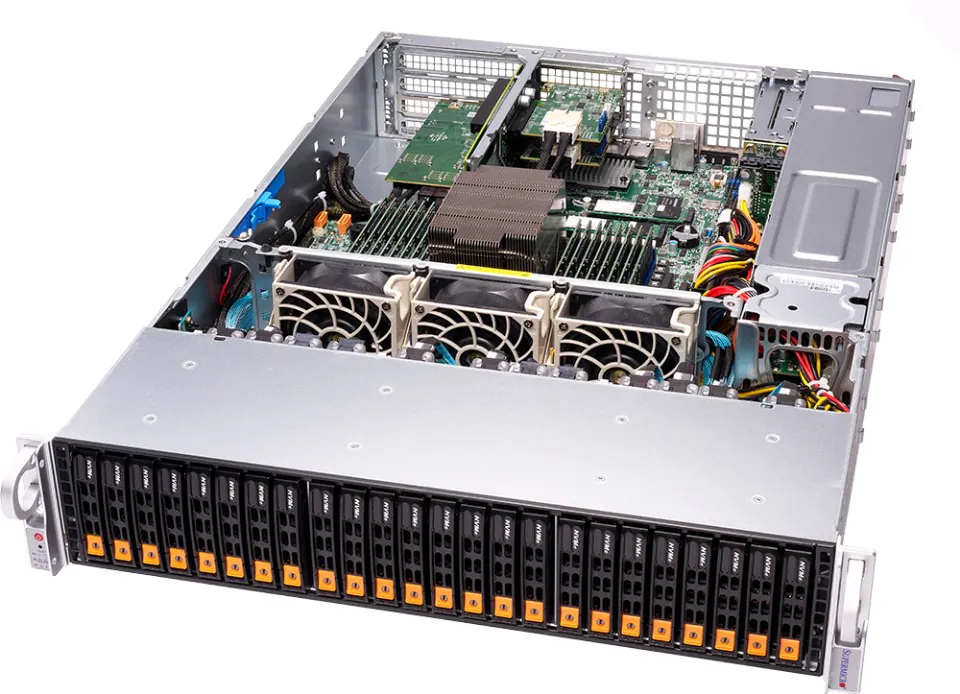

WIO A+ Server AS -2114S-WN24RT

(AS -2114S-WN24RT)

instock

Single AMD EPYC™ 7003/7002 Series Processor
(The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
Up to 4TB Registered ECC DDR4 3200MHz SDRAM in 16 DIMMs
Up to 2 PCIe 4.0 x16 FH/HL slots
24 NVMe configuration (Standard) – 1 slot available
20 NVMe configuration – 2 slots available

MSRP^*

N/A

* Manufacturer’s Suggested Retail Price

Product Specifications

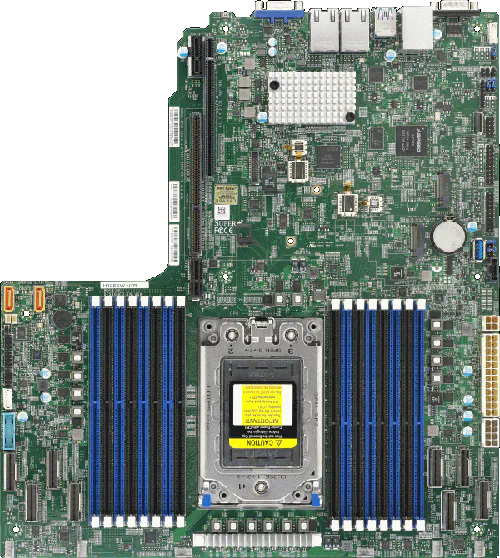

CPU	Single SP3 AMD EPYC™ 7002/7003 Series Processors
Note	Supports up to 280W TDP CPUs (Air Cooled)

Memory

- Slot Count: 16 DIMM slots
- Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMM

Memory Voltage

Chipset

Network Connectivity

LAN	1 RJ45 1 GbE Dedicated BMC LAN port 2 RJ45 10 GBASE-T LAN ports
USB	5 USB 3.0 Type-A ports(Rear)
Video	1 VGA port
DOM	2 SATA DOM (Disk on Module) ports
TPM	3 TPM header

BIOS Type	AMI 256MB SPI Flash EEPROM
BIOS Features	ACPI 6.3 PCI 2.2 Plug and Play (PnP) SMBIOS 3.0 or later USB Keyboard support

Software

Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery System Lockdown

Temperature	Monitoring for CPU and chassis environment CPU thermal trip support I²C Temperature Sensing Logic Thermal control for 6x Fan connectors
FAN	Status monitor for speed control Pulse Width Modulated (PWM) fan connectors Up to 6-fan status tachometer monitoring Up to six 4-pin fan headers
CPU	Monitors CPU Core Voltages, +12V, +3.3V, +5V, +5V standby, 3.3V standby, VBAT CPU switching voltage regulator
Other Features	Chassis Intrusion Detection Chassis Intrusion Header

Form Factor	2U Rackmount
Model	CSE-LA26TS-R1K23AWP1

Height	3.5″ (89 mm)
Width	17.2″ (437 mm)
Depth	25.5″ (648 mm)
Package	11.4″ (H) x 26.7″ (W) x 34.5″ (D)
Weight	Gross Weight: 59 lbs (26.76 kg) Net Weight: 33 lbs (15 kg)
Available Color	Black front & sliver body

LED	Drive activity Network activity Power status Universal Information (UID)
Buttons	Power On/Off Universal Information (UID)

PCI-Express (PCIe) Configuration

Drive Bays Configuration

Fans	Up to 3 heavy duty fans with optimal fan speed control

2x 1200W Redundant (1 + 1) Titanium Level (96%) power supplies

Dimension (WxHxL)	76 x 40 x 336 mm
Input	1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1200W: 200-240Vac 1200W: 200-240Vac / 50-60Hz 1200W: 200-240Vdc / 50-60Hz (for CCC only)
+12V	Max: 83A / Min: 0A (100Vac-127Vac) Max: 100A / Min: 0A (200Vdc-240Vdc) Max: 100A / Min: 0A (200Vac-240Vac)
5V SB	Max: 4A / Min: 0A
Output Type	Backplanes (gold finger)

ROHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
