Product Differentiator (long)
Powerful and flexible high density 1U PoE access switch packed with 24 HPE Smart Rate PoE ports supporting high power IEEE 802.3bt Class 6 (up to 60W) per port. Ideal for advanced Wi-Fi deployments. This model has 24x 802.3bz 1/2.5/5GBase-T copper PoE Class 6 ports. This model supports up to 1440W of PoE budget based on selected power supplies (max 2), with power supplies ordered separately.
Power Consumption Description
2 power supplies are supported: JL086A PSU (each): 513W JL087A PSU (each): 873W
Heat Dissipation
150 BTU/hr 162 kJ/hr
Input Voltage
100 – 127 / 200 – 240 VAC, rated or 110-127 / 200-240VAC, Rated depending on power supply
External I/O Ports
(24) RJ-45 autosensing 1/2.5/5GBASE-T PoE Class 6 ports (1) Uplink module slot, (1) stacking module slot
Latency
1000 Mb Latency: < 3.1 µs 10 Gbps Latency: < 3.4 µs
Switching Capacity
320 Gbps
Throughputup
to 112 Mpps
Memory and Processor
Dual Core ARM Coretex A9 @ 1016 MHz 1 GB DDR3 SDRAM Packet buffer size: 12.38 MB and 4.5MB Ingress, 7.785 Egress 4 GB eMMC
Power Supply Name
JL086A Aruba X372 54VDC 680W 100-240VAC Power Supply, JL087A Aruba X372 54VDC 1050W 110-240VAC Power Supply
PoE Capability
Up to 1440 Watts
Management Features
Aruba AirWave Network Management Aruba Central IMC – Intelligent Management Center Command-line interface Web browser Configuration menu SNMP manager Telnet RMON1 FTP Out-of-band management (serial RS-232C or micro USB)
Warranty Standard Statement
Limited Lifetime Warranty: See www.hpe.com/networking/warrantysummary for warranty and support information included with your product purchase.
Detailed Product Description

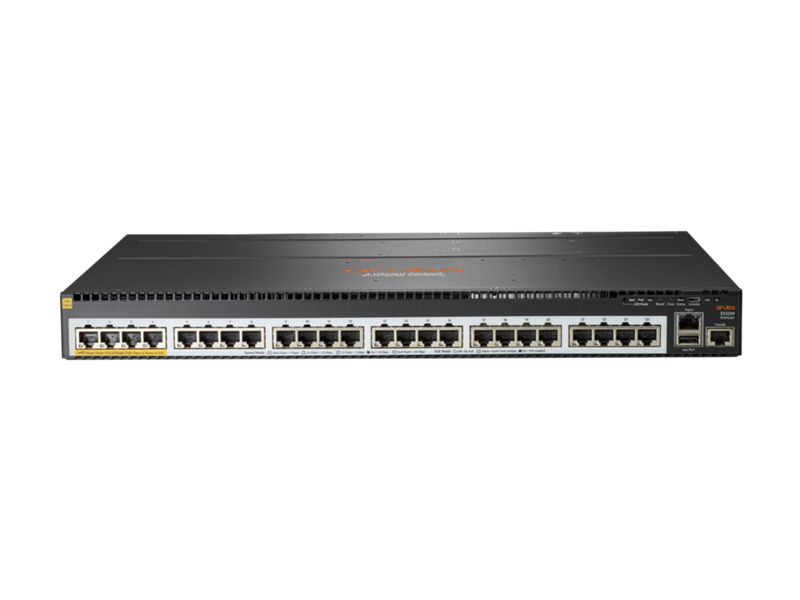

Aruba 2930M switch, 24-port HPE Smart Rate, PoE class 6, 1 accessory slot
Weight (imperial)
9.96 lbs
Weight (metric)
4.52 kg
Product Dimensions (imperial)
1.73 x 17.42 x 12.77 in
Product Dimensions (metric)
4.39 x 44.25 x 32.43 cm
