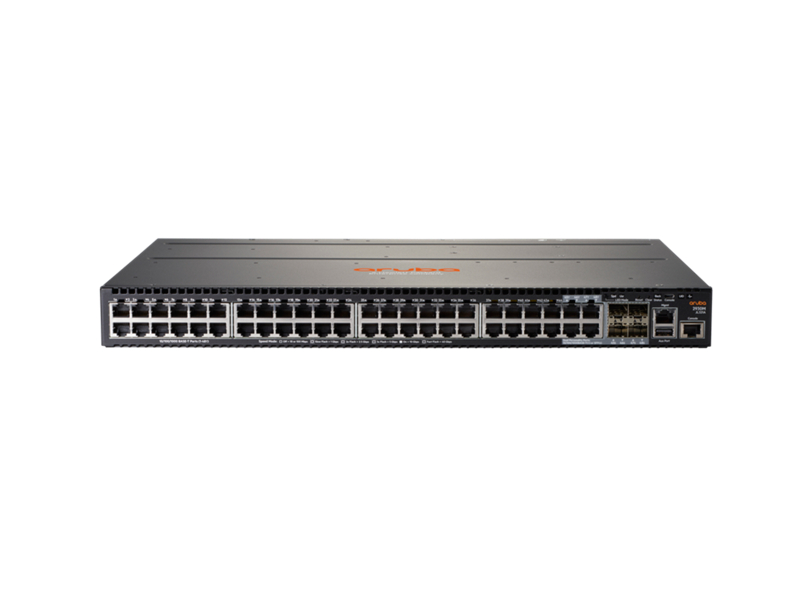

Aruba 2930M 48G 1-slot Switch

(JL321A)

Categories: Networking, HP Switches, Aruba, Aruba 2930M Switch Series

The Aruba 2930M Switch Series is designed for digital workplaces optimized for mobile users. These powerful Layer 3 access switches are easy to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager, Aruba AirWave and cloud-based Aruba Central. Modular stacking, uplinks and power provide scalability and simplicity for enterprise edge, SMB and branch office networks. The 2930M delivers performance and value with support for static, RIP and Access OSPF routing, 10GbE and 40GbE uplinks, models with 24 ports of HPE Smart Rate multi-gigabit Ethernet, up to 1440W of PoE, robust QoS, and Dynamic Segmentation for unified and secure access.

What’s New

Aruba Layer 3 switch series that is easy to deploy and manage with Aruba ClearPass Policy Manager and on-premise with Aruba Airwave.
Simplify with Zero Touch Provisioning and cloud-based Aruba Central support.
Scale with modular 10 chassis stacking and up to 1440W PoE.
Modular 10GbE and 40GbE uplinks and HPE Smart Rate multi-gigabit support.
Models with 24 ports of HPE Smart Rate with IEEE 802.3bz.
High Power PoE models deliver up to 60W of PoE per port.

Product Specifications

Product Differentiator (long) Powerful and flexible high density 1U 48-port access switch. This model has 48x 10/100/1000 access ports including four that are combo dual purpose shared with SFP ports for fiber connectivity. Can take up to two power supplies power supplies ordered separately. Power Consumption Description 78W (maximim) Heat Dissipation 185 BTU/hr 194 kJ/hr Input Voltage 100 – 127 / 200 – 240 VAC, rated External I/O Ports (44) RJ-45 autosensing 10/100/1000 ports (4) Dual Personality 10/100/1000 BASE-T or 100/1000 Mbps SFP Ports (1) uplink module slot, (1) stacking module slot Latency 1000 Mb Latency: < 3.1 µs 10 Gbps Latency: < 3.4 µs Switching Capacity 176 Gbps Throughputup to 112 Mpps Memory and Processor Dual Core ARM Coretex A9 @ 1016 MHz 1 GB DDR3 SDRAM Packet buffer size: 12.38 MB and 4.5MB Ingress, 7.785 Egress 4 GB eMMC Power Supply Name JL085A Aruba X371 12VDC 250W 100-240VAC Power Supply Management Features Aruba AirWave Network Management Aruba Central IMC – Intelligent Management Center Command-line interface Web browser Configuration menu SNMP manager Telnet RMON1 FTP Out-of-band management (serial RS-232C or micro USB) Warranty Standard Statement Limited Lifetime Warranty: See www.hpe.com/networking/warrantysummary for warranty and support information included with your product purchase. Weight (imperial) 1014 lbs Weight (metric) 4.60 kg Product Dimensions (imperial) 1.73 x 17.42 x 12.77 in Product Dimensions (metric) 4.39 x 44.25 x 32.43 cm
