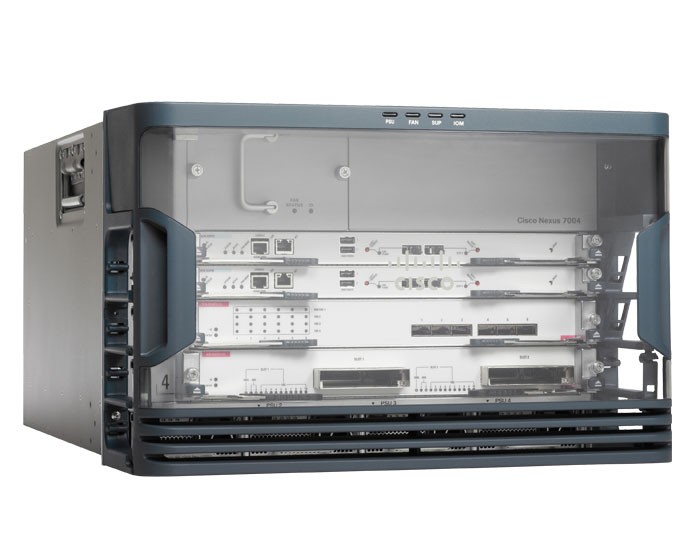

Cisco Nexus 7000 4-Slot Campus LAN Switches

(N7K-C7004)

Categories: Cisco Nexus 7000, Networking, Cisco Switches, Cisco Nexus

Scale to 1.92 Tbps with the Cisco Nexus 7000 4-Slot Switch. In a compact form factor, this switch has the same Cisco NX-OS operational features of other Cisco Nexus 7000 Series Switches. It offers a comprehensive feature set, high availability, high performance, and side-to-rear air flow. The switch delivers a Unified Fabric to meet the needs of small and midsized data center core and edge deployments.

Product Specifications

(H x W x D)
12.2 x 17.3 x 24 in.
(30.9 x 43.9 x 61 cm)

Chassis depth with cable management and doors
29.6 in. (75.2 cm)

Rack units (RUs)
7RU; can fit six 4-slot chassis in a 42RU rack

Module orientation
â—Supervisor and I/O modules: Horizontal
â—No fabric cards

Airflow
â—Side to rear
â—Designed for end-of-row deployments

Cable management
Purpose-built integrated cable management

Air filter
(Optional)

Doors
Lockable front module door

System LEDs
â—5 system LEDs that summarize the device status:
â—¦LED 1: Power supplies
â—¦LED 2: Fans
â—¦LED 3: Supervisors
â—¦LED 4: Fabric modules
â—¦LED 5: I/O modules
â—¦Each LED is green if the status is normal, and amber otherwise
