Port count
192 x 10 Gbps, 96 x 40 Gbps, and 48 x 100 Gbps
Product compatibility
Supports all Cisco Nexus 7700 switch modules
Supports Cisco Nexus 7700 Fabric-2 modules
Software compatibility
Cisco NX-OS Software Release 6.2.6 or later
Options
Door air filter
Lockable front module doors
System forwarding capacity
21 Tbps
Reliability and availability
OIR of all redundant components: supervisor and fabric modules, power supplies, and fan trays
MIBs
Supports SNMPv3, v2c, and v1 (see Cisco NX-OS Software release notes for details about specific MIB support)
Network management
Cisco Data Center Network Manager (DCNM) 6.2.6 or later
Programming interfaces
XML
Scriptable CLI
Cisco DCNM web services
Python
TCL
Cisco IOS EEM
Cisco OnePK
OpenFlow

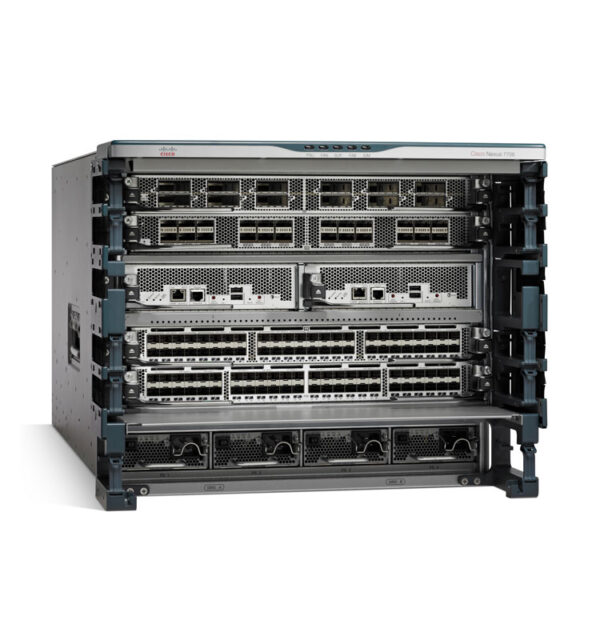

Physical specifications
Required rack space: 9RU
6-slot switch: 2 dedicated supervisor modules and 4 I/O modules
6 fabric module slots
4 power supply slots
Dimensions (H x W x D): 15.6 x 17.3 x 32 in. (39.62 x 43.9 x 81.3 cm)
Chassis depth, including cable management and chassis doors, is 38 in. (96.52 cm)
Unit is rack-mountable in a standard 19-inch (482.6-mm) EIA rack; unit is also 2-post rack-mountable
Weight
Chassis only: 145 lbs
Fully configured: 325 lbs
Power requirements: 110 to 240 VAC
Supports 3-kW AC and DC power supplies
Environmental specifications
Airflow direction: Front to back
Operating temperature: 32 to 104°F (0 to 40°C)
Operational relative humidity: 5 to 90%, noncondensing
Operating altitude: -500 to 13,123 ft. (agency certified 0 to 6500 ft.)
Seismic: Zone 4 per GR63
Floor loading: 92 lbs per sq.ft
Operational vibration
GR63, Section 5.4.2
ETS 300 019-1-3, Class 3.1, Section 5.5
Storage altitude: -1000 to 30,000 ft.
Storage temperature: -40 to 158°F (-40 to 70°C)
Storage relative humidity: 5 to 95%, noncondensing
Heat dissipation: Maximum 26,280 BTUs per hour (actual dissipation will be lower, depending on the chassis configuration)
Regulatory compliance
EMC compliance
FCC Part 15 (CFR 47) (USA) Class A
ICES-003 (Canada) Class A
EN55022 (Europe) Class A
CISPR22 (International) Class A
AS/NZS CISPR22 (Australia and New Zealand) Class A
VCCI (Japan) Class A
KN22 (Korea) Class A
CNS13438 (Taiwan) Class A
CISPR24
EN55024
EN50082-1
EN61000-3-2
EN61000-3-3
EN61000-6-1
EN300 386
Environmental standards
NEBS criteria levels *
SR-3580 NEBS Level 3 (GR-63-CORE and GR-1089-CORE)
Verizon NEBS compliance *
Telecommunications Carrier Group (TCG) checklist
Century Link NEBS requirements *
Telecommunications Carrier Group (TCG) checklist
ATT NEBS requirements *
ATT TP76200 level 3
ETSI *
ETSI 300 019-2-1, Class 1.2 storage
ETSI 300 019-2-2, Class 2.3 transportation
ETSI 300 019-2-3, Class 3.2 stationary use
* Validation in progress
Safety
UL/CSA/IEC/EN 60950-1
AS/NZS 60950
Warranty
Cisco Nexus 7700 Switches come with the standard Cisco 1-year limited hardware warranty
