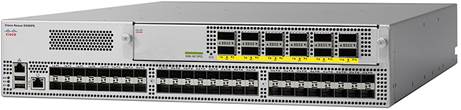

Cisco Nexus 9396PX Data Center Switch

(N9K-C9396PX)

Categories: Networking, Cisco Switches, Cisco Nexus, Cisco Nexus 9000

The Cisco Nexus 9396PX Switch is a 2RU switch that supports up to 1.92 Tbps of bandwidth and over 1500 Mpps across 48 fixed 10-Gbps SFP+ ports and up to 12 40-Gbps QSFP+ ports through an uplink module .3 choices of uplink module options are offered: 6 port 40-Gbps QSFP+, 12 port 40-Gbps QSFP+ and 4 port 100-Gbps CFP2 ports.

Details Specification

Product Specifications

Ports
48 fixed SPF+ ports

Supported speeds
1/10 Gigabit Ethernet speeds

40 Gigabit Ethernet Uplink Ports
6 or 12 QFSP+ ports active through the uplink module.Customers have the choice of either N9K-M6PQ or N9K-M12PQ for 40 Gigabit Uplink connectivity to aggregation or spine switches.

100 Gigabit Ethernet Uplink Ports
Customer can have 100G uplink connectivity to spine switches or routers through the N9K-M4PC- uplink module, with CPF2 optics as wells as Cisco CPAK 100G module through converters.The N9K-M4PC-CFP2 offers 5MB additional buffer for each port.

Power supplies (up to 2)
650W AC/930W DC

Typical power* (AC)
232W

Maximum power* (AC)
455W

Input voltage (AC)
100 to 240V

Input voltage (DC)
-48V – -60V

Frequency (AC)
50 to 60 Hz

Fans
3

Physical (H x W x D)
3.5 x 17.5 x 22.5 in.
(8.9 x 44.5 x 57.1 cm)

Acoustics
68.3 dBA at 40% fan speed, 78.8 dBA at 70% fan speed, and 84.5 dB at 100% fan speed

RoHS compliance
Yes
