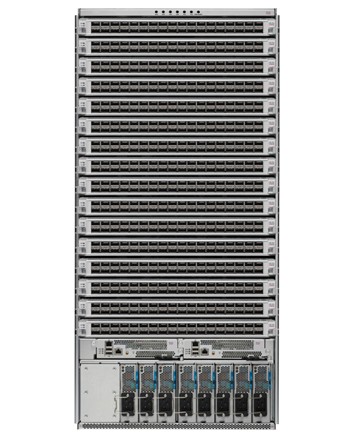

Cisco Nexus 9516 Data Center Switch

(N9K-C9516)

Improve performance and efficiency with the Cisco Nexus 9516 Switch. It provides high density 1/10/40 GE in a compact 21-rack-unit modular chassis. This versatile modular switch is designed for high-density, end-of-row, and high-performance aggregation-layer deployments in both traditional and Cisco Application Centric Infrastructure (ACI) – enabled data centers.

Product Specifications

Product Informations

Nonblocking Performance
60 terabits per second

10 Gigabit Ethernet Nonblocking Ports
Up to 2304 (1.5:1 oversubscribed), 2048 (line rate)

40 Gigabit Ethernet Nonblocking Ports
Up to 576

1/10GBASE-T Nonblocking Ports
Up to 768

Form Factor
21-rack-unit chassis

Line Card Slots
16

Airflow
Front to back

Typical Power
330W

Maximum Power
450W

System Features
