Home   »   Products   »   Networking   »   HP Switches   »   HP Campus LAN   »   HP 2920   »   HP 2920-24G-POE+ Switch

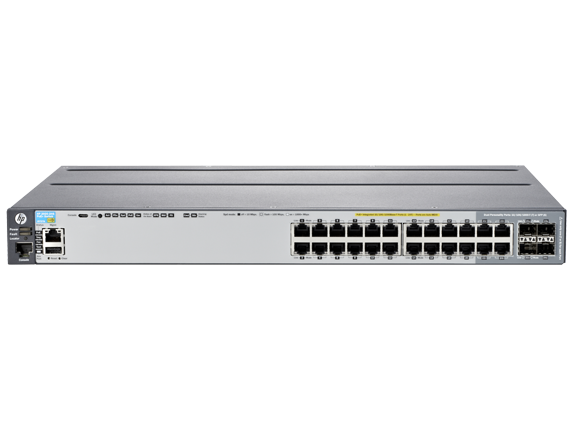

HP 2920-24G-POE+ Switch

(J9727A)

The HP 2920 Switch Series provides security, scalability and ease of use for enterprise edge, SMB and branch office access layer deployments. A powerful HP Networking ASIC delivers low latency, more packet buffering, and adaptive power consumption to this robust Basic Layer 3 switch that supports modular stacking, 10GbE, RIP routing, PoE+, ACLs, sFlow and IPv6.

The HP 2920 Switch Series can be managed with the optional HP Intelligent Management Center (IMC) software for a single view of your entire network and is ready for the Software-defined Network (SDN) with OpenFlow support.

Product Specifications

Product Informations

Differentiator
24-port basic L3 10/100/1000 PoE+ switch with 2 slots for optional 10G modules, 1 slot for optional stacking module and a modular power supply

Ports
20 RJ-45 autosensing 10/100/1000 PoE+ ports
4 RJ-45 dual-personality 10/100/1000 PoE+ ports
2 module slots
Included

Memory and processor
Tri Core ARM1176 @ 625 MHz
512 MB SDRAM
packet buffer size: 11.25 MB (6.5 MB dynamic egress + 4.5 MB ingress)
1 GB flash

Latency
100 Mb Latency: < 9 µs
1000 Mb Latency: < 3.3 µs
10 Gbps Latency: < 3.3 µs

Throughput
up to 95.2 Mpps
Switching capacity
128 Gbps
PoE capability
370 W PoE+
Stacking capabilities
Virtual
4 switches
Management features
IMC – Intelligent Management Center
command-line interface
Web browser
configuration menu
out-of-band management (RJ-45 Ethernet)
SNMP Manager
Telnet
RMON1
FTP
in-line and out-of-band
out-of-band management (serial RS-232C or Micro USB)

Power supply name
1 x J9738A

Dimensions (W x D x H)
17.42 x 13.23 x 1.73 in (44.25 x 33.6 x 4.4 cm)
Weight
12.04 lb (5.46 kg)

What’s in the box
(1) HP 2920-24G-PoE+ Switch
Warranty
Limited Lifetime warranty: Advance hardware replacement with next-business-day delivery (available in most countries). See www.hp.com/networking/warrantysummary for duration details.
