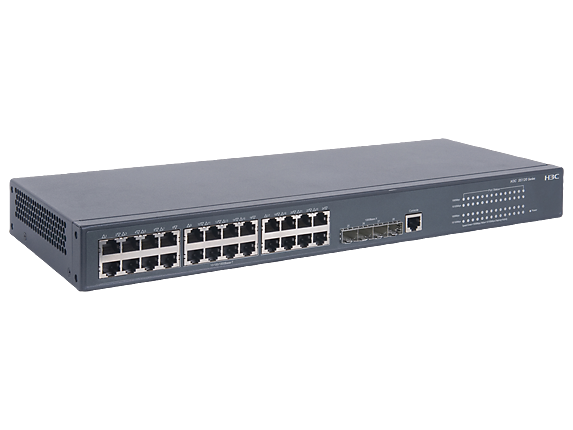

HP 5120-24G-PoE+ (170W) SI Switch

(JG092A)

Categories: Networking, HP Switches, HP Campus LAN, HP 5120 SI

The HP 5120 SI Switch Series are fully managed, basic Layer 3 switches that support stacking, static Layer 3 routing, PoE+, ACLs and IPv6. HP Intelligent Resilient Framework (IRF) technology creates a virtual fabric by managing several switches as one logical device, which increases network resilience, performance, and availability while reducing operational complexity.

The HP 5120 SI Switch Series can be managed with the optional HP Intelligent Management Center (IMC) Software for a single view of your entire network.

Details Specification

Product Specifications

Differentiator
HP 5120-24G-HPOE SI Switch with 24 10/100/1000Base-T PoE+ ports and 4 GE SFP ports (AC only, partially PoE+)

Ports
24 RJ-45 autosensing 10/100/1000 PoE+ ports
4 fixed Gigabit Ethernet SFP ports
Included

Memory and processor
storage: 128 MB flash, 128 MB SDRAM
packet buffer size: 0.5 MB

Latency
1000 Mb Latency: < 3 µs

Throughput
up to 41.7 Mpps

Routing/switching capacity
56 Gbps
PoE capability
170 W PoE+

Stacking capabilities
IRF
4 switches

Management features
IMC – Intelligent Management Center
command-line interface
Web browser
SNMP Manager

Dimensions (W x D x H)
17.32 x 16.54 x 1.72 in (44 x 42 x 4.36 cm)
Weight
15.43 lb (7 kg)

What’s in the box
(1) HP 5120-24G-PoE+ (170W) SI Switch
Warranty
Limited Lifetime warranty: Advance hardware replacement with next-business-day delivery (available in most countries). See www.hp.com/networking/warrantysummary for duration details.;Electronic and telephone support: limited electronic and telephone support is available from HP refer to www.hp.com/networking/support for details on the support provided and the period during which support is available;Software releases: refer to www.hp.com/networking/support for details on the software releases provided and the period during which software releases are available for your product(s)
