The HP 5120 SI Switch Series are fully managed, basic Layer 3 switches that support stacking, static Layer 3 routing, PoE+, ACLs and IPv6. HP Intelligent Resilient Framework (IRF) technology creates a virtual fabric by managing several switches as one logical device, which increases network resilience, performance, and availability while reducing operational complexity.
The HP 5120 SI Switch Series can be managed with the optional HP Intelligent Management Center (IMC) Software for a single view of your entire network.
* Manufacturer’s Suggested Retail Price
Differentiator

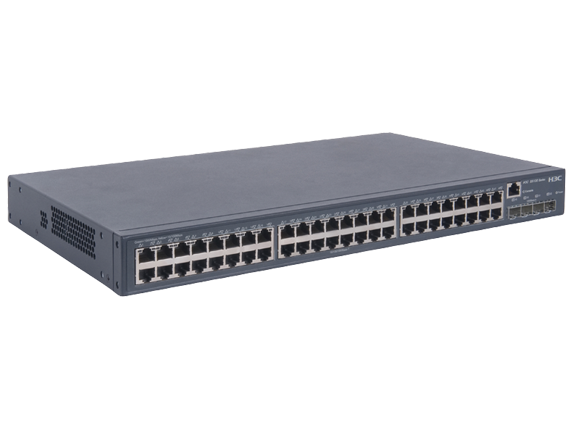

HP 5120-48G SI Switch with 48 10/100/1000Base-T ports and 4 GE SFP ports
Ports
48 RJ-45 autosensing 10/100/1000 ports
4 fixed Gigabit Ethernet SFP ports
Included
Memory and processor
storage: 128 MB flash, 128 MB SDRAM
packet buffer size: 1 MB
Latency
1000 Mb Latency: < 3 µs
Throughput
up to 77.4 Mpps
Routing/switching capacity
104 Gbps
Stacking capabilities
IRF
4 switches
Management features
IMC – Intelligent Management Center
command-line interface
Web browser
SNMP Manager
Dimensions (W x D x H)
17.3 x 10.24 x 1.72 in (43.94 x 26.01 x 4.37 cm)
Weight
11.02 lb (5 kg)
What’s in the box
(1) HP 5120-48G SI Switch
Warranty
Limited Lifetime warranty: Advance hardware replacement with next-business-day delivery (available in most countries). See www.hp.com/networking/warrantysummary for duration details.;Electronic and telephone support: limited electronic and telephone support is available from HP refer to www.hp.com/networking/support for details on the support provided and the period during which support is available;Software releases: refer to www.hp.com/networking/support for details on the software releases provided and the period during which software releases are available for your product(s)
