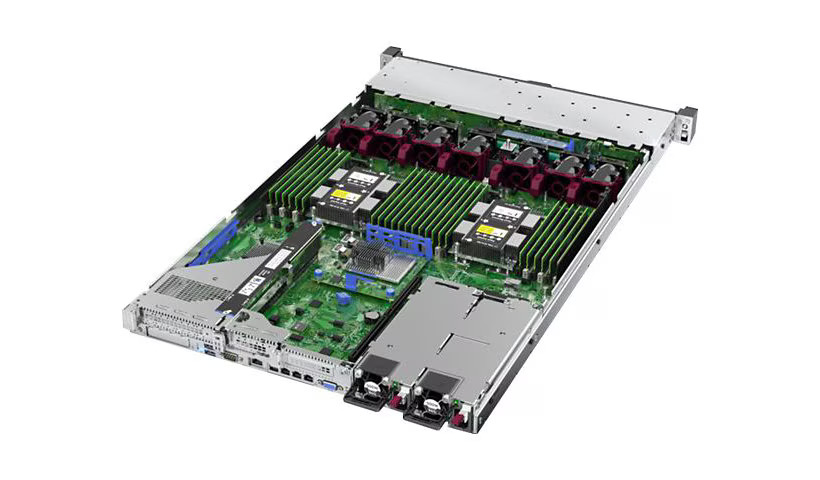

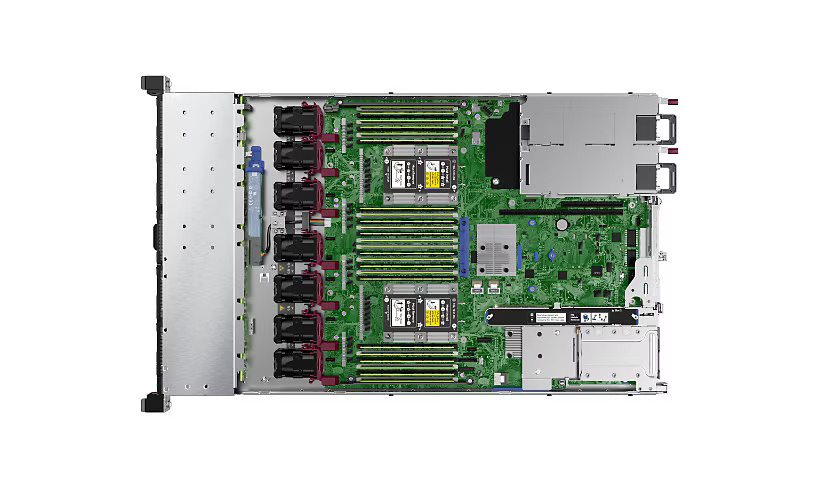

HPE ProLiant DL360 Gen10 Network Choice – rack-mountable Xeon Silver 4214R 2.4 GHz – 32 GB – no HDD

(P23579-B21)

Categories: Servers, HP ProLiant, Rackmount Servers, DL360 Gen10

Does your data center need a secure, performance driven dense server that you can confidently deploy for virtualization, database, or high-performance computing? The HPE ProLiant DL360 Gen10 server delivers security, agility and flexibility without compromise. It supports the Intel Xeon Scalable processor with up to a 60% performance gain and 27% increase in cores , along with 2933 MT/s HPE DDR4 SmartMemory supporting up to 3.0 TB with an increase in performance of up to 82% . With the added performance that Intel Optane persistent memory 100 series for HPE , HPE NVDIMMs and 10 NVMe bring, the HPE ProLiant DL360 Gen10 means business. Deploy, update, monitor and maintain with ease by automating essential server life cycle management tasks with HPE OneView and HPE Integrated Lights Out 5 (iLO 5). Deploy this 2P secure platform for diverse workloads in space constrained environments.

Quick tech specs

Server
2-way
RAM 32 GB
hot-swap 2.5″ bay(s)
Gigabit Ethernet
monitor: none
rack-mountable 1U
1 x Xeon Silver 4214R / up to 3.5 GHz
SAS
no HDD
no OS

Product Specifications

BrandHPE

Product LineHPE ProLiant

ModelDL360 Gen10 Network Choice

ManufacturerHewlett-Packard

Bus TypePCI Express 3.0 x4

Clock Speed2.4 GHZ

Cores12-core

Max Turbo Speed3.5 GHZ

Processor BrandIntel

Processor Main FeaturesHyper-Threading Technology, Intel Turbo Boost Technology 2

Processor Number4214R

Processor SocketFCLGA3647 Socket

Processor TypeXeon Silver

Processors Installed1

Server Scalability2-way

Total Processor Supported2

UpgradabilityUpgradable

Available Memory Slots23

Cache MemoryL3 cache

Cache Memory Installed16.5 megabyte

Configuration Features1 x 32 GB

Data Integrity CheckAdvanced ECC

Features6-channel memory architecture, Dual rank, Mixing of different types of memory modules is not supported, Online Spare Memory, Registered, Slots 13 – 24 are available in two-processor configuration only

Max Memory Supported1.5 TB

Memory Slots24

Memory Specification CompliancePC4-23466

Memory Speed2400 megahertz

Memory Supported1.5 TB registered – ECC, 192 GB Non-Volatile – ECC, 3 TB Load-Reduced – ECC, 6 TB – HPE Persistent Memory – Optane DC Persistent

Memory TechnologyDDR4 SDRAM

RAM Installed32 GB

Rated Memory Speed2933 megahertz

Channel Quantity14

Drive TypeNo optical drive

Optical Drive TypeNo optical drive, None

Optical Drive Type (2nd)None

RAID LevelsRAID 0, RAID 1, RAID 10, RAID 5

Storage (2nd)None

Storage (3rd)None

Storage (4th)None

Storage Controller (2nd)RAID

Storage Controller NameHPE Smart Array P408i-a SR Gen10, HPE Smart Array S100i SR Software RAID

Storage Controller TypeRAID

TypeNone

Hard Drive Interface TypeNo HDD

Data Link ProtocolsEthernet, Fast Ethernet, Gigabit Ethernet

Ethernet ControllersHPE 366FLR

Ethernet Ports4 x Gigabit Ethernet

FeaturesPXE support, Wake On LAN (WOL)

Remote ManagementIPMI 2.0, SMASH CLP, SNMP 3

Remote Management ControllerIntegrated Lights-Out 5

Expansion Bays1 (total) / 1 (free) x external Universal Media Bay, 8 (total) / 8 (free) x hot-swap 2.5″ SFF

Slots1 (total) / 0 (free) x FlexibleLOM, 1 (total) / 0 (free) x PCIe 3.0 x8 – low-profile, 1 (total) / 1 (free) x microSD Card (internal), 1 (total) / 1 (free) x PCIe 3.0 x16 – three-quarter-length, full-height

Interface Provided1 x HPE iLO – RJ-45, 1 x VGA, 3 x USB 3.0 (1 front, 2 rear), 4 x LAN (Gigabit Ethernet)

Display TechnologyNone.

Video InterfacesVGA

Installed Size16 megabyte

Frequency50/60 hertz

Power Device TypePower supply – hot-plug

Power Provided500 watt

Power Supplies Installed1

Power Supplies Supported2

Redundant Power SupplyOptional

Redundant Power Supply Supported1+1 (with optional power supply)

80 PLUS Certification80 PLUS Platinum

OS CertifiedMicrosoft Windows Server 2012 R2 Datacenter, Microsoft Windows Server 2012 R2 Essentials, Microsoft Windows Server 2012 R2 Standard, Microsoft Windows Server 2012 R2 with Hyper-V, Microsoft Windows Server 2016 Datacenter, Microsoft Windows Server 2016 Essentials, Microsoft Windows Server 2016 Standard, Microsoft Windows Server 2016 with Hyper-V, Microsoft Windows Server 2019 Datacenter, Microsoft Windows Server 2019 Essentials, Microsoft Windows Server 2019 Standard, Microsoft Windows Server 2019 with Hyper-V, Red Hat Enterprise Linux 7.6, Red Hat Enterprise Linux 7.7, Red Hat Enterprise Linux 8.0, Red Hat Enterprise Linux 8.1, SuSE Linux Enterprise Server 12 SP3, SuSE Linux Enterprise Server 12 SP4, SUSE Linux Enterprise Server 15, SUSE Linux Enterprise Server 15 SP1, VMware vSphere 6.0 update 3, VMware vSphere 6.5 (ESXi) Update 2, VMware vSphere 6.7 (ESXi) Update 1

Built-in DevicesLED panel

Chipset TypeIntel C621

Form FactorRack-mountable

Form Factor (RAM)DIMM 288-pin

Storage Controller InterfaceSerial ATA-600

Max Operating Temperature95 degree Fahrenheit

Min Operating Temperature50 degree Fahrenheit

Operating Humidity8 – 90% (non-condensing)

Channel Quantity8

Controller Interface TypeSerial ATA-600 / SAS 3.0

Controllers Included1

CountryWorldwide
