Home » Products » Servers » HPE ProLiant DL360 Gen10 Plus Network Choice – rack-mountable Xeon Silver 4314 2.4 GHz – 32 GB – no HDD

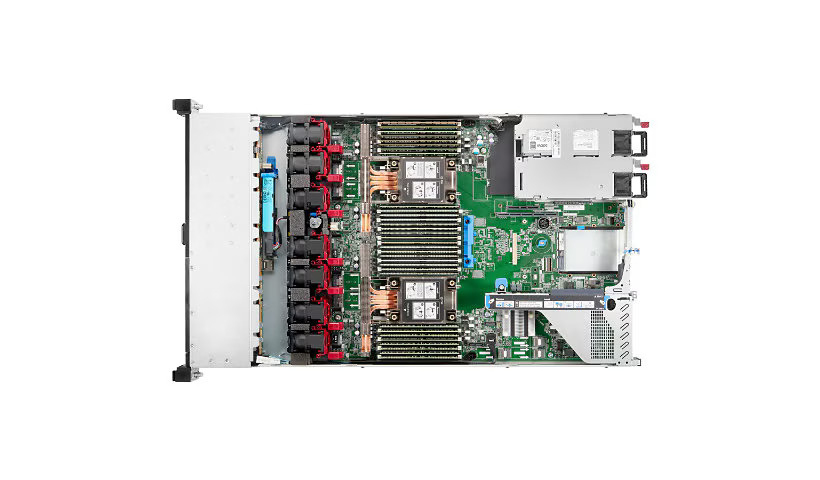

HPE ProLiant DL360 Gen10 Plus Network Choice – rack-mountable Xeon Silver 4314 2.4 GHz – 32 GB – no HDD

(P55242-B21)

Categories: Servers, DL360 Gen10, HP ProLiant, Rackmount Servers

The HPE ProLiant DL360 Gen10 Plus Network Choice Server delivers security, agility and flexibility without compromise. This rack-mountable server is equipped with an Intel Xeon Silver 4314 processor for seamless performance.

Quick tech specs

Server
2-way
RAM 32 GB
hot-swap 2.5″ bay(s)
10 Gigabit Ethernet
rack-mountable 1U
1 x Xeon Silver 4314 / up to 3.4 GHz
SATA/SAS/NVMe
no HDD
monitor: none

Product Specifications

BrandHPE

Product LineHPE ProLiant

ModelDL360 Gen10 Plus Network Choice

ManufacturerHewlett-Packard

Clock Speed2.4 GHZ

Cores16-core

Max Turbo Speed3.4 GHZ

Processor BrandIntel

Processor Number4314

Processor TypeXeon Silver

Processors Installed1

Server Scalability2-way

Total Processor Supported2

UpgradabilityUpgradable

Available Memory Slots31

Cache MemoryL3 cache

Cache Memory Installed24 megabyte

Configuration Features1 x 32 GB

FeaturesDual rank, HPE SmartMemory, Registered

Max Memory Supported4 TB

Memory Slots32

Memory Speed2933 megahertz

Memory TechnologyDDR4 SDRAM

RAM Installed32 GB

Rated Memory Speed3200 megahertz

Buffer Size4 GB

Drive TypeNo optical drive

Optical Drive TypeNo optical drive, None

Optical Drive Type (2nd)None

Storage (2nd)None

Storage (3rd)None

Storage (4th)None

Storage Controller (2nd)None

TypeNone

Hard Drive Interface TypeNo HDD

Data Link Protocols10 Gigabit Ethernet

Ethernet ControllersBroadcom BCM57416

Ethernet Ports2 x 10 Gigabit Ethernet

FeaturesPXE support, Wake On LAN (WOL)

Host InterfaceOpen Compute Project mezzanine (OCP) 3.0

Remote Management ControllerIntegrated Lights-Out 5

Expansion Bays8 (total) / 8 (free) x hot-swap 2.5″ SFF

Slots1 (total) / 1 (free) x PCIe 4.0 x16 – full-height (x16 mode), 1 (total) / 1 (free) x PCIe 4.0 x16 – low-profile (x16 mode)

Interface Provided1 x HPE iLO, 1 x HPE iLO (1 in front) (service port), 1 x USB 2.0 (1 in front), 1 x VGA, 2 x LAN (10Gigabit Ethernet), 3 x USB 3.0 (1 front, 2 rear, 2 internal)

Display TechnologyNone.

Video InterfacesVGA

Installed Size16 megabyte

Power Device TypePower supply – hot-plug

Power Provided800 watt

Power Supplies Installed1

Power Supplies Supported2

Redundant Power SupplyYes

Redundant Power Supply Supported1+1 (with optional power supply)

Required VoltageAC 120/230 volt

Chipset TypeIntel C621A

Embedded SecurityTrusted Platform Module (TPM) Security Chip

Form FactorRack-mountable

Form Factor (RAM)DIMM 288-pin

Max Operating Temperature95 degree Fahrenheit

Min Operating Temperature50 degree Fahrenheit

Operating Humidity10 – 90% (non-condensing)

Controllers Included1

CountryWorldwide

Printer Product TypeNone

Hot-Swap Bays8

Manufacturer Form FactorRack-mountable

Packaged Quantity1

Product TypeServer

Server Storage BaysHot-swap

Server Swappable Drive Form Factor2.5″

Server Swappable Drive Form Factor (metric)6.4 cm

Server Swappable Drive InterfaceSATA/SAS/NVMe

Included Accessories31 x DIMM blanks, 7 x high performance fans, CPU standard heatsink, HPE Easy Install Rails

Height1.7 inch

Height (Rack Units)1

Weight28.75 lbs

Width17.1 inch

Depth30.3 inch

Color CategoryBlack, Silver

Compliant StandardsACPI 6.3, ASHRAE Class A3, ASHRAE Class A4, Redfish API, SMBIOS 3.2, TLS v1.2, UEFI, WEEE

ENERGY STAR CertifiedNo

TCO CertifiedNo

On-Site WarrantyOn-site

Service & Support DetailsLimited warranty – parts and labor – 3 years – on-site – response time: next business day

Limited Warranty3 Year
