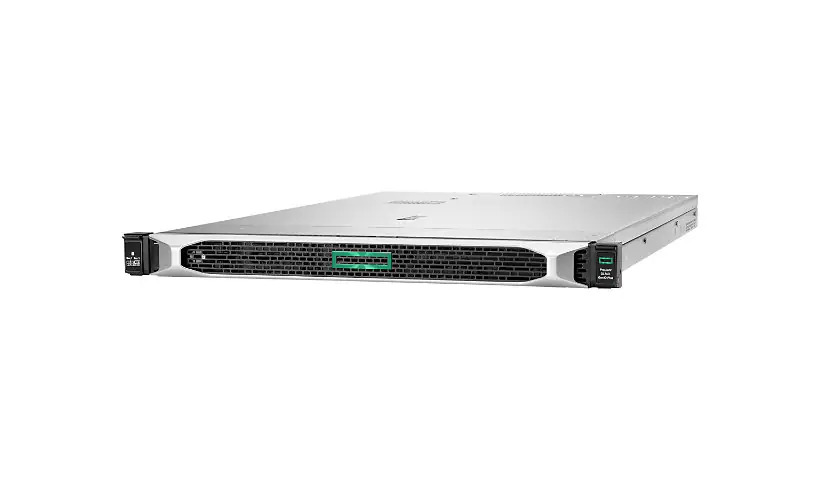

HPE ProLiant DL360 Gen10 Plus Smart Choice – Xeon Silver 4310 2.1 GHz – 32 GB – SSD 2 x 480 GB – 2 x 800W – rack server

(P69299-005)

Do you need to efficiently expand or refresh your IT infrastructure to propel the business? Adaptable for diverse workloads and environments, the compact 1U HPE ProLiant DL360 Gen10 Plus server delivers enhanced performance with the right balance of expandability and density. Designed for supreme versatility and resiliency while backed by a comprehensive warranty, the HPE ProLiant DL360 Gen10 Plus server is ideal for IT infrastructure, either physical, virtual, or containerized. Powered by 3rd Generation Intel Xeon Scalable Processors, delivering up to 40 cores, 3200 MT/s memory, and introducing PCIe Gen4 and Intel Software Guard Extension (SGX) support to the dual-socket segment, the HPE ProLiant DL360 Gen10 Plus server delivers premium compute, memory, I/O, and security capabilities for customers focused on performance at any cost.

Quick tech specs

  • Server
  • 2-way
  • RAM 32 GB
  • hot-swap 2.5″ bay(s)
  • Gigabit Ethernet
  • Smart Choice
  • rack-mountable 1U
  • 1 x Xeon Silver 4310 / up to 3.3 GHz
  • SAS
  • SSD 2 x 480 GB
  • monitor: none

Product Specifications

System Features
BrandHPE
Product LineHPE ProLiant
ModelDL360 Gen10 Plus Network Choice
ManufacturerHPE Smart Buy Express
Clock Speed2.1 GHZ
Cores12-core
Max Turbo Speed3.3 GHZ
Processor BrandIntel
Processor Main FeaturesHyper-Threading Technology, Intel Turbo Boost Technology 2
Processor Number4310
Processor TypeXeon Silver
Processors Installed1
Server Scalability2-way
Total Processor Supported2
UpgradabilityUpgradable
Available Memory Slots31
Cache MemoryL3 cache
Cache Memory Installed18 megabyte
Configuration Features1 x 32 GB
FeaturesDual rank, HPE SmartMemory, Registered, Slots 17 – 32 are available in two-processor configuration only
Max Memory Supported4 TB
Memory Slots32
Memory Speed2667 megahertz
Memory TechnologyDDR4 SDRAM
RAM Installed32 GB
Rated Memory Speed3200 megahertz
Buffer Size2 GB
Channel Quantity8
Drive InterfaceSerial ATA-600
Drive TypeNo optical drive
Hard Drive Capacity480 GB
Installed Quantity2
Interface ClassSerial ATA
Optical Drive TypeNo optical drive, None
Optical Drive Type (2nd)None
Storage (2nd)None
Storage (3rd)None
Storage (4th)None
Storage Controller NameHPE Smart Array P408i-a
Storage Controller TypeRAID
TypeNone
Hard Drive Interface TypeSSD
Data Link ProtocolsEthernet, Fast Ethernet, Gigabit Ethernet
Ethernet ControllersBroadcom BCM5719
Ethernet Ports4 x Gigabit Ethernet
FeaturesPXE support, Wake On LAN (WOL)
Host InterfaceOpen Compute Project mezzanine (OCP) 3.0
Remote ManagementIPMI 2.0, SNMP 3
Remote Management ControllerIntegrated Lights-Out 5
Expansion Bays8 (total) / 6 (free) x hot-swap 2.5″ SFF
Slots1 (total) / 1 (free) x PCIe 4.0 x16 – full-height, 1 (total) / 1 (free) x PCIe 4.0 x16 – low-profile
Interface Provided1 x HPE iLO (1 in front) (service port), 1 x HPE iLO (1 rear) (management port), 1 x USB 2.0 (1 in front), 1 x VGA, 3 x USB 3.0 (1 front, 2 rear, 2 internal), 4 x LAN (Gigabit Ethernet) – RJ-45 (4 rear)
Display TechnologyNone.
Video InterfacesVGA
Power Device TypePower supply – hot-plug
Power Provided800 watt
Power Supplies Installed2
Power Supplies Supported2
Redundant Power SupplyYes
Redundant Power Supply Supported1+1
Required VoltageAC 100-240 volt
80 PLUS Certification80 PLUS Platinum
Built-in DevicesLED panel
Chipset TypeIntel C621A
Embedded SecurityTrusted Platform Module (TPM) Security Chip
Form FactorRack-mountable
Form Factor (RAM)DIMM 288-pin
Storage Controller InterfaceSerial Attached SCSI 3
Max Operating Temperature95 degree Fahrenheit
Min Operating Temperature50 degree Fahrenheit
Operating Humidity8 – 90% RH (non-condensing)
Controllers Included1
CountryCanada, United States
Printer Product TypeNone
Hot-Swap Bays8
Manufacturer Form FactorRack-mountable
Packaged Quantity1
Product TypeServer
Server Storage BaysHot-swap
Server Swappable Drive Form Factor2.5″
Server Swappable Drive Form Factor (metric)6.4 cm
Server Swappable Drive InterfaceSAS
Included Accessories7 x high performance fans, CPU standard heatsink, SFF Easy Install Rail Kit
Height1.7 inch
Height (Rack Units)1
Weight29.3 lbs
Width17.1 inch
Depth29.2 inch
Color CategoryBlack, Silver
Compliant StandardsACPI 6.3, Active Directory v1.0, ASHRAE Class A3, ASHRAE Class A4, Redfish API, SMBIOS 3.2, TLS v1.2, Triple DES, WEEE 2002/95/EC
ENERGY STAR CertifiedYes
TCO CertifiedNo
On-Site WarrantyOn-site
Service & Support DetailsLimited warranty – parts and labor – 3 years – on-site – response time: next business day
Limited Warranty3 Year
