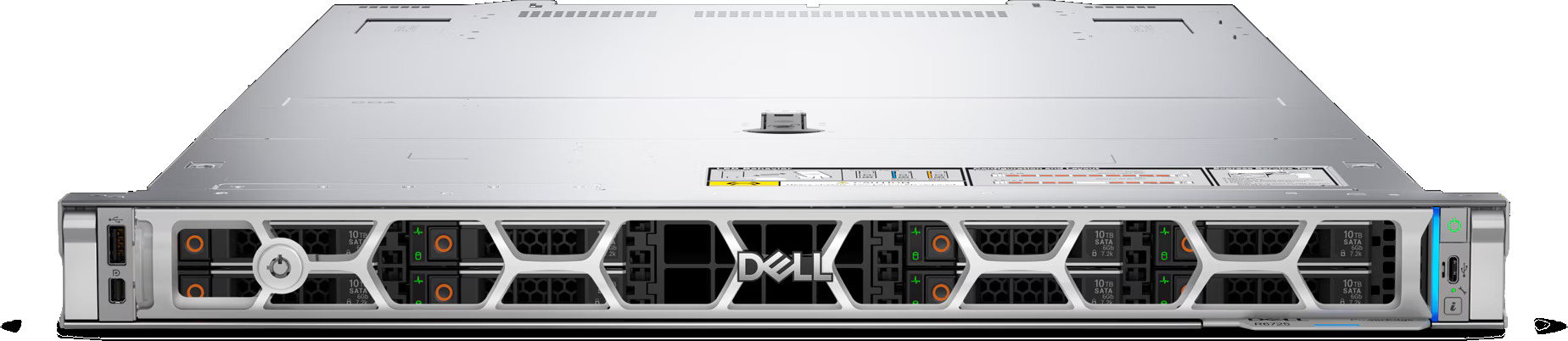

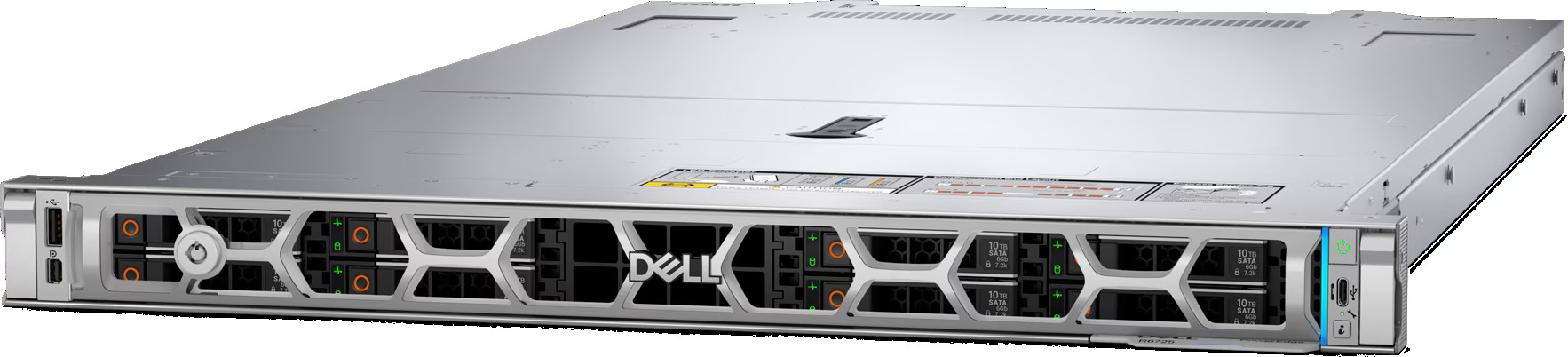

Designed to be the backbone of your data center, this powerful server provides excellent performance, low-latency storage options and compute density in an air-cooled configuration.
* Manufacturer’s Suggested Retail Price
Two 5th Generation AMD EPYC 9005 Series processors with up to 192 cores per processor
24 DDR5 DIMM slots, supports RDIMM 6 TB max, speeds up to 6400 MT/s
Supports registered ECC DDR5 DIMMs only
Internal Controllers (RAID): PERC H365i, H965i, H975i
Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1 DC-MHS)
External HBAs (non-RAID): HBA465e

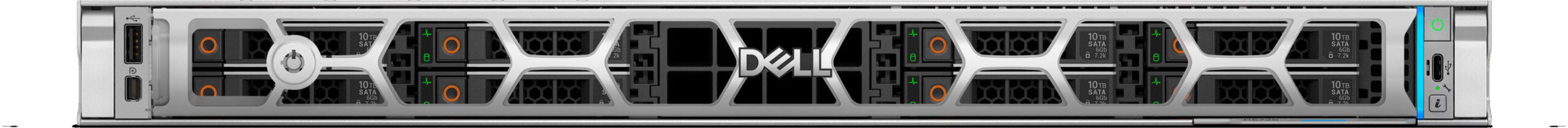

Front bays:
4 x 3.5-inch SAS/SATA
8 x 2.5-inch Universal or U.2 / 10 x 2.5-inch SAS/SATA
10 x 2.5-inch with 4 x Universal
8 x EDSFF E3.S / 16 x EDSFF E3.S / 20 x EDSFF E3.S + Rear 2 x EDSFF E3.S
Platinum: 800W, 1100W
Titanium: 800W, 1100W, 1500W, 1500W 277VAC & HVDC*, 1800W*
Telco: 1400 W -48VDC
Air cooling, Direct Liquid Cooling (DLC)
Up to four sets (dual fan module) hot plug fans
Height – 42.8 mm (1.68 inches)
Width – 482 mm (18.97 inches)
Depth – 816.921 mm (32.16 inches) with bezel
– 815.141 mm (32.09 inches) without bezel
1U rack server
iDRAC10
iDRAC Direct
iDRAC RESTful API with Redfish
Racadm CLI
Quick Sync 2 wireless module
Optional Metal Bezel
OpenManage Enterprise (OME)
OME Power Manager
OME Services
OME Update Manager
OME APEX AIOps Observability
OME Integration for VMware vCenter (with VMware
Aria Operations)
OME integration for Microsoft System Center
OpenManage Integration for Windows Admin Center
N/A
IPMI
OpenManage Integrations
RedHat Ansible Collections
Terraform Providers
Dell Repository Manager
Dell System Update
Enterprise Catalogs
Server Update Utility (SUU)
AMD Secure Encrypted Virtualization (SEV)
AMD Secure Memory Encryption (SME)
Cryptographically signed firmware
Data at Rest Encryption (SEDs with local or external key mgmt)
Secure Boot
Secured Component Verification (Hardware integrity check)
Secure Erase
Silicon Root of Trust
System Lockdown
TPM 2.0 FIPS, CC-TCG certified
Chassis Intrusion Detection
Up to 3 x 75 W SW
Front Ports
1 x USB 2.0 Type-A (optional LCP KVM)
1 x USB 2.0 Type-C (HOST/BMC Direct)
1 x Mini DisplayPort (optional LCP KVM)

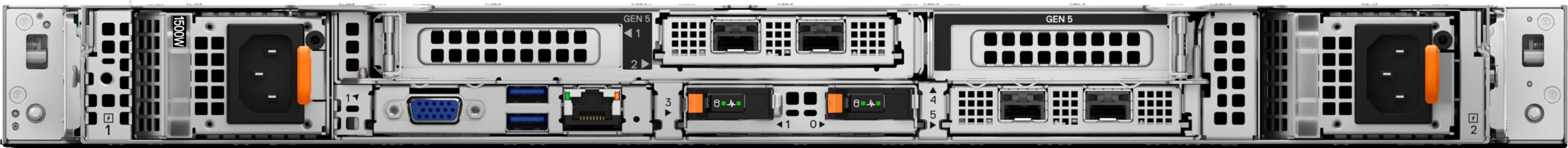

Rear Ports
1 x 1 Gb dedicated BMC Ethernet port
2 x USB 3.1 Type-A
1 x VGA
Up to three PCIe slots (x16 connector)
Slot 1: 1 x16 Gen5 Full Height or Low Profile
Slot 2: 1 x16 Gen5 Low Profile or 1 x16 OCP3.0
Slot 4: 1 x16 Gen5 Full Height or Low profile
3
2 x OCP card 3.0 (optional) and 1GbE, 10GbE, 25GbE, 100GbE and 400GbE
Slot 2: 1 x16 Gen5 OCP 3.0
Slot 5: 1 x16 Gen5 OCP 3.0
1 Gb dedicated BMC Ethernet port
100 GbE and 400GbE; NDR VPI (400GbE); FC 32 / 64
Canonical Ubuntu Server LTS
Microsoft Windows Server with Hyper-V
Red Hat Enterprise Linux
VMware ESXi
SUSE Linux Enterprise Server
From bezel to BIOS to packaging, your servers can look and feel as if they were designed and built by you. For more information,
visit Dell.com/OEM.
