PowerEdge R750 Rack Server

Up to two 3rd Generation Intel Xeon Scalable processors, with up to 40 cores per processor

32 DDR4 DIMM slots, supports RDIMM 2 TB max or LRDIMM 8 TB max, speeds up to 3200 MT/s
Up to 16 Intel Persistent Memory 200 series (BPS) slots, 8 TB max
Supports registered ECC DDR4 DIMMs only

Internal controllers: PERC H745, HBA355I, S150, H345, H755, H755N
Boot Optimized Storage Subsystem (BOSS-S2): HW RAID 2 x M.2 SSDs 240 GB or 480 GB
Boot Optimized Storage Subsystem (BOSS-S1) HW RAID 2 x M.2 SSDs 240 GB or 480 GB
External PERC (RAID): PERC H840, HBA355E

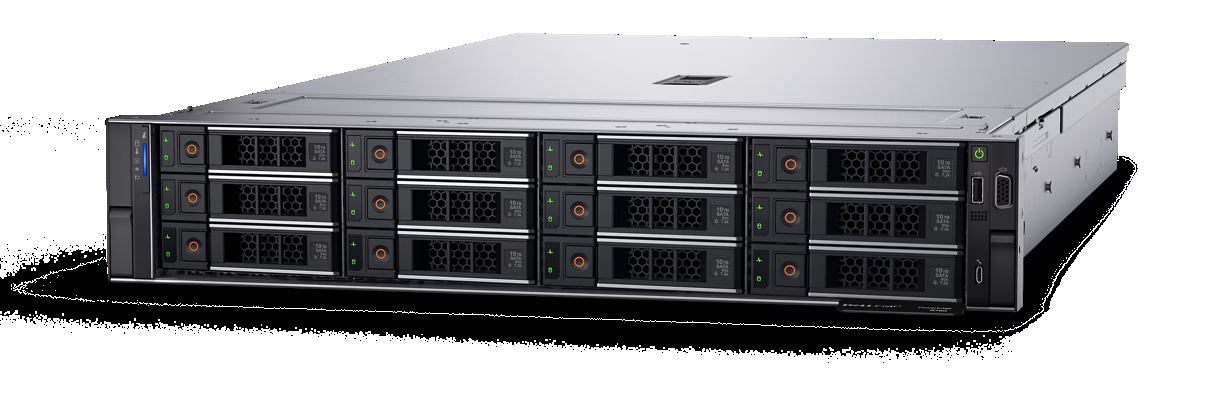

Front bays:
Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 192 TB
Up to 8 x 2.5-inch NVMe (SSD) max 122.88 TB
Up to 16 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 245.76 TB
Up to 24 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 368.84 TB
Rear bays:
Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB
Up to 4 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB

700 W Titanium HLAC/240 mixed mode
800 W Platinum AC/240 mixed mode
1100 W Titanium AC/240 mixed mode
1100 W DC -48 – -60 V
1400 W Platinum AC/240 mixed mode
1800 W Titanium HLAC/240 mixed mode
2400 W Platinum AC/240 mixed mode
2800 W Titanium HLAC/240 mixed mode

Air cooling, optional processor liquid cooling

Standard fan/High performance SLVR fan/High performance GOLD fan
Up to six hot plug fans

Height – 86.8 mm (3.41 inches)
Width – 482 mm (18.97 inches)
Depth – 758.3 mm (29.85 inches) – without bezel
772

2U rack server

iDRAC9
iDRAC Service Module
iDRAC Direct
Quick Sync 2 wireless module

Optional LCD bezel or security bezel

OpenManage Enterprise
OpenManage Power Manager plugin
OpenManage SupportAssist plugin
OpenManage Update Manager plugin

OpenManage Mobile

OpenManage Integrations
BMC Truesight
Microsoft System Center
Red Hat Ansible Modules
VMware vCenter and vRealize Operations Manager

OpenManage Connections
IBM Tivoli Netcool/OMNIbus
IBM Tivoli Network Manager IP Edition
Micro Focus Operations Manager
Nagios Core
Nagios XI

Cryptographically signed firmware
Secure Boot
Secure Erase
Silicon Root of Trust
System Lockdown (requires iDRAC9 Enterprise or Datacenter)
TPM 1.2/2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ

2 x 1 GbE LOM

1 x OCP 3.0 (x8 PCIe lanes)

Up to two double-width 300 W, or three single-width 150 W, or six single-width 75 W accelerators

Front Ports
1 x Dedicated iDRAC Direct micro-USB
1 x USB 2.0
1 x VGA

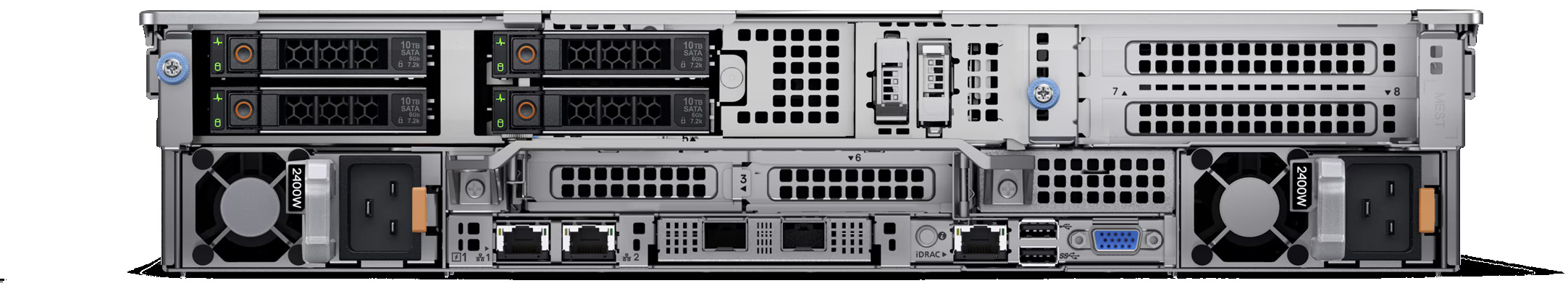

Rear Ports
1 x USB 2.0
1 x Serial (optional)
1 x USB 3.0
2 x RJ-45
1 x VGA (optional for liquid cooling configuration)

Up to 8 x PCIe Gen4 slots (up to 6 x16) with support for SNAP I/O modules

Canonical Ubuntu Server LTS
Citrix Hypervisor
Microsoft Windows Server with Hyper-V
Red Hat Enterprise Linux
SUSE Linux Enterprise Server
VMware ESXi
For specifications and interoperability details, see Dell.com/OSsupport
