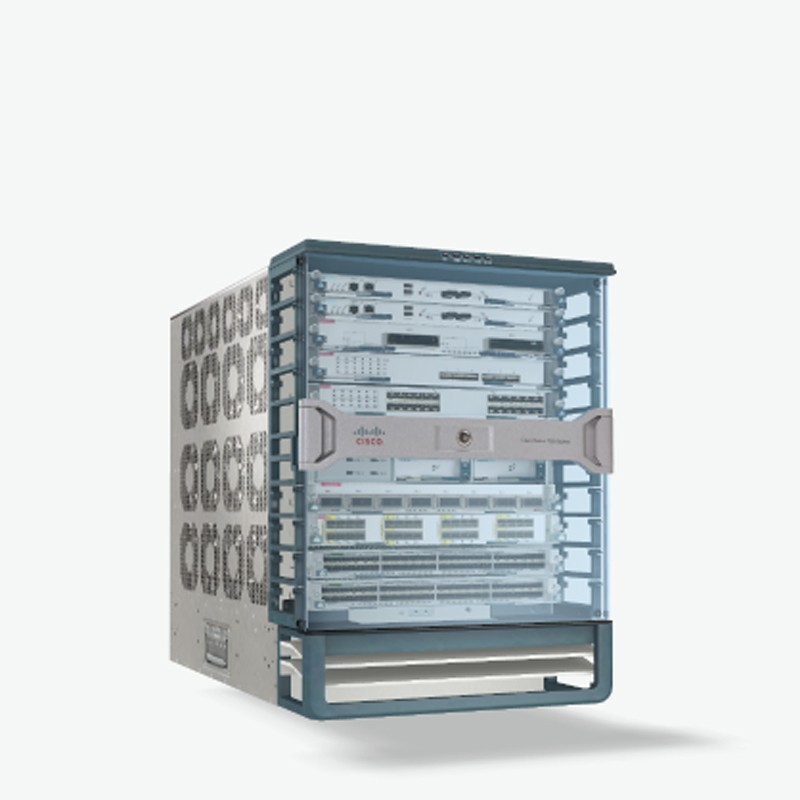

Cisco Nexus 7000 9-Slot Campus LAN Switches

(H x W x D)
24.5 x 17.3 x 24 in.
(62.2 x 43.9 x 61 cm)

Chassis depth with cable management and doors
29 in. (73.7 cm)

Rack units (RUs)
14RU; can fit three 9-slot chassis in a 42RU rack

Module orientation
●Supervisor and I/O modules: Horizontal
●Fabric cards (at the front): Horizontal

Airflow
●Side to side
●Designed for end-of-row deployments

Cable management
Integrated dual side for flexible cabling deployments

Doors
(Optional) 1 dual-hinged door that opens to either side for access to cabling and modules, covering the I/O modules

System LEDs
●5 system LEDs that summarize the device status:
â—¦LED 1: Power supplies
â—¦LED 2: Fans
â—¦LED 3: Supervisors
â—¦LED 4: Fabric modules
â—¦LED 5: I/O modules
â—¦Each LED is green if the status is normal, and amber otherwise
